Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Name: | Bucket Elevator |
|---|---|---|---|
| Usage: | Metallurgy, Chemical Industry | Type: | TD160S/Q |
| Bucket Speed(m/s): | 1.4 | Warranty: | 12 Months |
| Color: | Custom | Classification: | Conveying Hoisting Machine |
| High Light: | Conveying Hoisting Machine Bucket Elevator,High Lifting Bucket Elevator,Low Lifting Bucket Elevator |
||

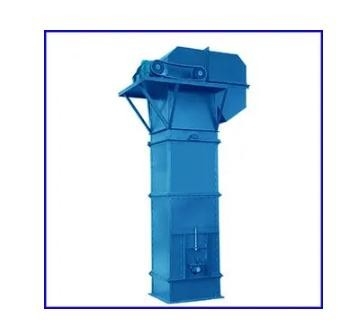

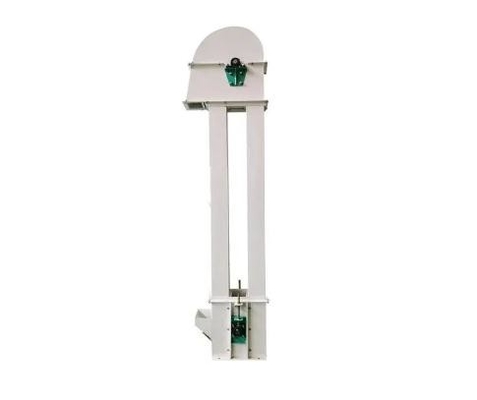

Conveying Hoisting Machine Bucket Elevator Suitable For Low To High Lifting
1. Conveying hoisting machine bucket elevator main components:
Bucket elevator by hopper, driving device, top and bottom roller (or sprocket), tape (or traction chain), tensioning device and housing.
2. Conveying hoisting machine bucket elevator product description:
Bucket elevator is suitable for low to high lifting, the supply of materials through the shaking table into the hopper after the machine automatically continuous operation upward transport.
3. Conveying hoisting machine bucket elevator product parameters:
| Model | Production capacity (t/h) |
Feeding size Max(mm) |
Bucket speed(m/s) | Pitch of buckets (mm) | Device weight(kg) | |
| 10m | ±1m | |||||
| D160S/Q | 8/3.1 | 25 | 1.0 | 300 | 1580 | 100 |
| D250S/Q | 21.6/11.8 | 35 | 1.25 | 400 | 2930 | 130 |
| D350S/Q | 42/25 | 45 | 1.25 | 500 | 3315 | 190 |
| D450S/Q | 69.5/48 | 55 | 1.25 | 640 | 4664 | 250 |
| TD160S/Q | 27/9 | 25 | 1.4 | 350/280 | 1640 | 120 |
| TD250S/Q | 59/20 | 35 | 1.6 | 450/360 | 3060 | 150 |
| TD315S/Q | 67/28 | 40 | 1.6 | 500/400 | 3310 | 180 |
| TD400S/Q | 110/40 | 45 | 1.8 | 560480 | 4016 | 210 |
| TD500S/Q | 154/63 | 50 | 1.8 | 625/500 | 5110 | 280 |
| TD630S/Q | 238/142 | 60 | 2.0 | 710 | 8160 | 430 |
| HL300S/Q | 28/16 | 40 | 1.25 | 500 | 3930 | 200 |
| HL400S/Q | 47/30 | 50 | 1.25 | 600 | 4990 | 260 |
| TH315Sh/Zh | 59/35 | 35 | 1.4 | 512 | 3860 | 160 |
| TH400Sh/Zh | 94/58 | 40 | 1.4 | 512 | 4780 | 180 |
| TH500Sh/Zh | 118/73 | 50 | 1.5 | 688 | 5620 | 235 |
| TH630Sh/Zh | 185/114 | 55 | 1.5 | 688 | 8670 | 453 |
| PL250 | 22.3/30 | 35 | 0.5 | 200 | 3012 | 136 |
| PL350 | 50/59 | 45 | 0.4 | 250 | 4180 | 214 |
| PL450 | 85/100 | 50 | 0.4 | 320 | 5660 | 293 |
| ZL250 | 55 | 35 | 0.58 | 250 | 3217 | 148 |
| ZL350 | 80 | 45 | 0.58 | 250 | 4210 | 175 |
| ZL450 | 120 | 50 | 0.58 | 300 | 5692 | 250 |
| ZL600 | 160 | 55 | 0.58 | 300 | 9374 | 480 |
Conveying Hoisting Machine Bucket Elevator Suitable For Low To High Lifting
