Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Name: | Bucket Elevator |
|---|---|---|---|
| Type: | PL And ZL Series Belt Type Bucket | Feeding Size Max: | 55 Mm |
| Production Capacity (t/h): | 110 | Keyword: | Belt Type Bucket Elevator |
| Warranty: | 12 Months | Classification: | Conveying Hoisting Machine |
| High Light: | 110t/h Belt Type Bucket Elevator,55mm Belt Type Bucket Elevator |
||

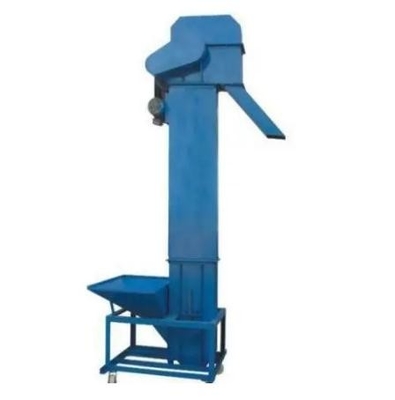

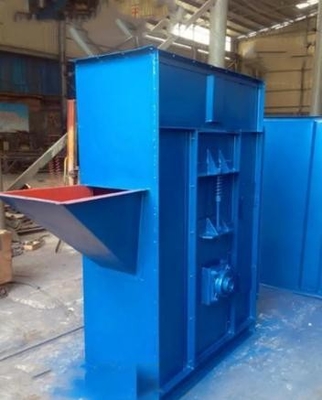

PL And ZL Series Belt Type Bucket Elevator Conveying Hoisting Machine
Company Information Luoyang Zhongtai Industrial Co., Ltd. is located in Luoyang National University Science Park, Longyu Road, Jianxi District, Luoyang City, Henan Province. It is a professional company integrating development, design, installation, commissioning, sales and technical services of mining machinery products. Business scope includes: mining equipment, metallurgical equipment, construction equipment, construction machinery, power machinery, stone chemical equipment, electrical equipment, agricultural machinery, hydraulic equipment and accessories, refractory materials, warehouse color, casting and forging sales, mechanical equipment, energy-saving and environmental protection equipment technology research and development, consultation, installation, maintenance, project contracting. Our company has independent legal personality and foreign trade import and export business qualification, engaged in import and export business of goods and technology.
1. Conveying hoisting machine bucket elevator working principle:
The hopper scoops up the material from the storage below, and as the conveyor belt or chain is lifted to the top, bypits the jacking wheel and flipped down, the bucket elevator pours the material into the receiving tank. Belt drive bucket elevator transmission belt generally adopts rubber belt, mounted on or above the transmission drum and the upper and lower to the drum. Chain drive bucket elevator is generally equipped with two parallel transmission chains, on or below a pair of transmission sprockets, under or above a pair of sprockets. The bucket elevator is generally equipped with a casing to prevent dust from flying in the bucket elevator.
2. Conveying hoisting machine bucket elevator product parameters:
| Model | Production capacity (t/h) |
Feeding size Max(mm) |
Bucket speed(m/s) | Pitch of buckets (mm) | Device weight(kg) | |
| 10m | ±1m | |||||
| D160S/Q | 8/3.1 | 25 | 1.0 | 300 | 1580 | 100 |
| D250S/Q | 21.6/11.8 | 35 | 1.25 | 400 | 2930 | 130 |
| D350S/Q | 42/25 | 45 | 1.25 | 500 | 3315 | 190 |
| D450S/Q | 69.5/48 | 55 | 1.25 | 640 | 4664 | 250 |
| TD160S/Q | 27/9 | 25 | 1.4 | 350/280 | 1640 | 120 |
| TD250S/Q | 59/20 | 35 | 1.6 | 450/360 | 3060 | 150 |
| TD315S/Q | 67/28 | 40 | 1.6 | 500/400 | 3310 | 180 |
| TD400S/Q | 110/40 | 45 | 1.8 | 560480 | 4016 | 210 |
| TD500S/Q | 154/63 | 50 | 1.8 | 625/500 | 5110 | 280 |
| TD630S/Q | 238/142 | 60 | 2.0 | 710 | 8160 | 430 |
| HL300S/Q | 28/16 | 40 | 1.25 | 500 | 3930 | 200 |
| HL400S/Q | 47/30 | 50 | 1.25 | 600 | 4990 | 260 |
| TH315Sh/Zh | 59/35 | 35 | 1.4 | 512 | 3860 | 160 |
| TH400Sh/Zh | 94/58 | 40 | 1.4 | 512 | 4780 | 180 |
| TH500Sh/Zh | 118/73 | 50 | 1.5 | 688 | 5620 | 235 |
| TH630Sh/Zh | 185/114 | 55 | 1.5 | 688 | 8670 | 453 |
| PL250 | 22.3/30 | 35 | 0.5 | 200 | 3012 | 136 |
| PL350 | 50/59 | 45 | 0.4 | 250 | 4180 | 214 |
| PL450 | 85/100 | 50 | 0.4 | 320 | 5660 | 293 |
| ZL250 | 55 | 35 | 0.58 | 250 | 3217 | 148 |
| ZL350 | 80 | 45 | 0.58 | 250 | 4210 | 175 |
| ZL450 | 120 | 50 | 0.58 | 300 | 5692 | 250 |
| ZL600 | 160 | 55 | 0.58 | 300 | 9374 | 480 |
PL And ZL Series Belt Type Bucket Elevator Conveying Hoisting Machine
