Product Details:
Payment & Shipping Terms:
|
| Product: | Vibrating Feeder | Model: | ZSW-590×110 |
|---|---|---|---|
| Feed Size: | Max 600(mm) | Condition: | New |
| Feature: | Small Size, Light Weight | Color: | Custom |
| Classification: | Conveying Hoisting Machine | Warranty: | 12 Months |
| High Light: | Vibration Feeder Conveying Hoisting Machine,Max 600mm Vibration Feeder,Max 600mm Vibrating Feeder |
||

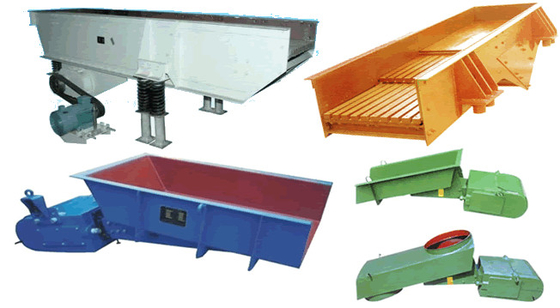

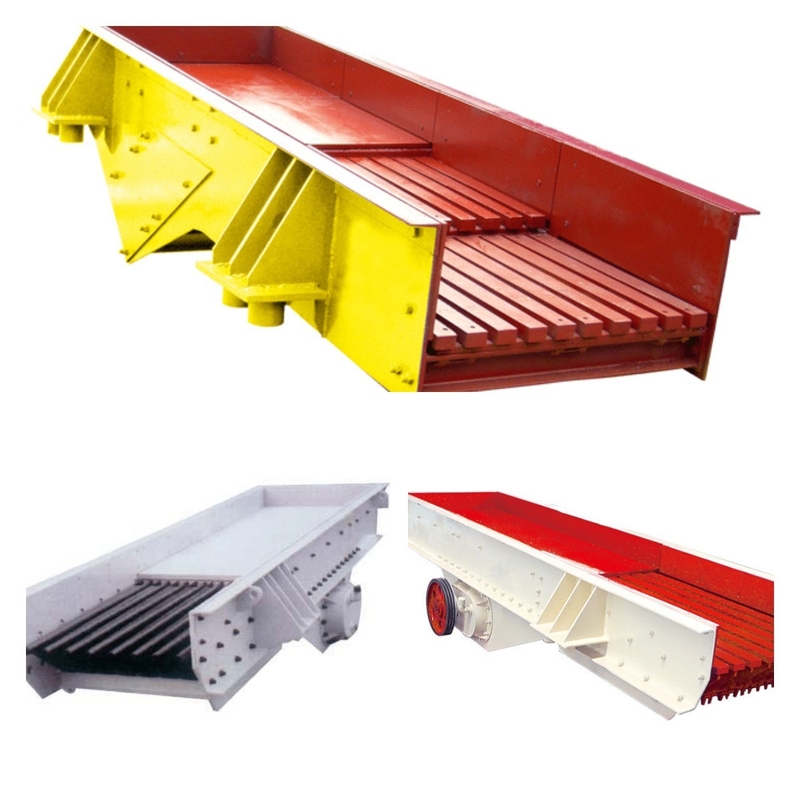

Widely Used In Various Industries Of Vibration Feeder Conveying Hoisting Machine
1. Vibration feeder Of Conveying Hoisting Machine product introduction:
Vibration feeder is widely used in mining, metallurgy, coal, building materials, light industry, chemical industry, electric power, food and other departments, to put the block, granular and powdery materials from uniform continuous or quantitative transport to the crushing device.
GZG series feeder for ordinary groove type, used for no special requirements of material feeding, GZGF series feeder for closed groove type feeder, used for dust and volatile material feeding. Inertial vibration feeder can be matched with reverse brake control box, the control box can make the feeder in a short time to stop quickly, so that the feeder through the resonance zone.
2. Structural characteristics of vibration feeder Conveying Hoisting Machine:
(1) Steady vibration;
(2) Special grid equipment can prevent material clogging;
(3) The gap of the grid is adjustable;
(4) Optional stepless speed regulating motor, easy to control the feed, no need to start the motor frequently.
3.Vibration feeder product parameters Conveying Hoisting Machine
| Model | Feed size Max (mm) |
(t/h) |
Eccentric shaft speed(r/mi)n | Motor power(kw) | Dimensions (L×W×H)(mm) | Size of Funnel(mm) |
| ZSW-380×95 | 500 | 96-160 | 500-714 | 11 | 3882×2224×2121 | 3800×950 |
| ZSW-490×110 | 580 | 120-280 | 500-800 | 15 | 4957×2400×2150 | 4900×1100 |
| ZSW-590×110 | 600 | 200-350 | 500-800 | 22 | 6000×2500×2150 | 5900×1100 |
| Model | Feed size Max (mm) |
(t/h) |
Motor power(kw) | Rods Angle(℃) | Double-amplitude(mm) |
| GZT0724 | 450 | 30-80 | 2×1.5 | 10 | 4-6 |
| GZT0932 | 560 | 80-150 | 2×2.4 | 10 | 4-6 |
| GZT1148 | 600 | 150-300 | 2×5.5 | 10 | 4-6 |
| GZT1560 | 1000 | 400-600 | 2×13 | 10 | 4-6 |
4. Vibrating Feeder Of Conveying Hoisting Machine Application scope:
GZT series vibratory feeder is designed and manufactured by digesting and absorbing foreign technology, using vibration motor as excitation source. This series of feeder is used for uniform feeding of large material before coarse crushing crusher, at the same time, due to the role of bar screen surface, and can remove the soil and other finely broken materials, to achieve pre-screening function, can improve the coarse crushing capacity. Especially suitable for water and electricity industry, construction stone, metal ore and other coarse crushing before feeding.
GZG series self synchronous inertial vibration feeder is widely used in mining, metallurgy, coal, building materials, light industry, chemical industry, electric power, food and other industries, to put the block, granular and powder materials from the storage bin or funnel evenly continuous or quantitative to the material device. Such as crushing, coal preparation, screening, transportation, packaging machinery and other feeding, ingredients, etc.
