Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Model: | GZT0724 Vibrating Feeder |
|---|---|---|---|
| Feed Size Max (mm): | 450 | Processing Capacity (t/h): | 30-80 |
| Motor Power(kw): | 2*1.5 | Rods Angle(°): | 10 |
| Type: | Conveying Hoisting Machine | Warranty: | 12 Months |
| High Light: | Large Feeding Capacity Vibrating Feeder,Max 450mm Vibrating Feeder |
||

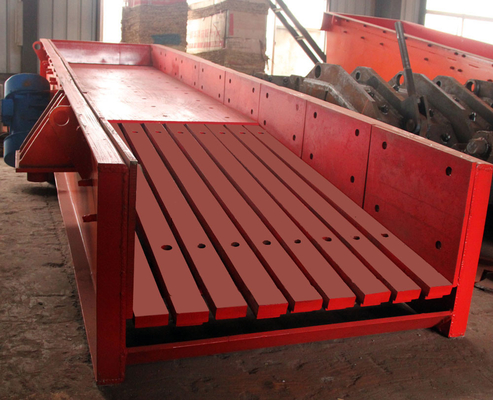

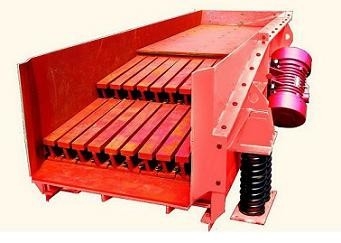

Large Feeding Capacity Vibrating Feeder And Conveying Hoisting Machine
1. Vibrating Feeder Of Conveying Hoisting Machine Application scope:
GZT series vibratory feeder is designed and manufactured by digesting and absorbing foreign technology, using vibration motor as excitation source. This series of feeder is used for uniform feeding of large material before coarse crushing crusher, at the same time, due to the role of bar screen surface, and can remove the soil and other finely broken materials, to achieve pre-screening function, can improve the coarse crushing capacity. Especially suitable for water and electricity industry, construction stone, metal ore and other coarse crushing before feeding.
GZG series self synchronous inertial vibration feeder is widely used in mining, metallurgy, coal, building materials, light industry, chemical industry, electric power, food and other industries, to put the block, granular and powder materials from the storage bin or funnel evenly continuous or quantitative to the material device. Such as crushing, coal preparation, screening, transportation, packaging machinery and other feeding, ingredients, etc.
2. Vibration feeder Of Conveying Hoisting Machineworking principle:
Motor vibration feeder adopts two vibration motors of the same specification as the excitation source, and uses the eccentric block at both ends of the vibration motor to generate excitation force, which is an ideal vibration driving device. The feeding process of motor vibration feeder is achieved by reciprocating linear vibration in the inclined direction of the feeding trough. When the component of the vibration acceleration of the tank is greater than the component of the gravity acceleration in the vertical direction of the tank, the material in the tank is thrown up, and according to the parabolic wheel trace forward jumping movement, each vibration of the tank once, the material will be thrown up once, so, the material continuously to the tank vibration frequency jump forward, to achieve the purpose of feeding.
3. Structural characteristics of vibration feeder,Conveying Hoisting Machine:
(1) Steady vibration;
(2) Special grid equipment can prevent material clogging;
(3) The gap of the grid is adjustable;
(4) Optional stepless speed regulating motor, easy to control the feed, no need to start the motor frequently.
4. Vibration feeder product parameters,Conveying Hoisting Machine
| Model | Feed size Max (mm) |
(t/h) |
Eccentric shaft speed(r/mi)n | Motor power(kw) | Dimensions (L×W×H)(mm) | Size of Funnel(mm) |
| ZSW-380×95 | 500 | 96-160 | 500-714 | 11 | 3882×2224×2121 | 3800×950 |
| ZSW-490×110 | 580 | 120-280 | 500-800 | 15 | 4957×2400×2150 | 4900×1100 |
| ZSW-590×110 | 600 | 200-350 | 500-800 | 22 | 6000×2500×2150 | 5900×1100 |
| Model | Feed size Max (mm) |
(t/h) |
Motor power(kw) |
Rods Angle(°) |
Double-amplitude(mm) |
| GZT0724 | 450 | 30-80 | 2×1.5 | 10 | 4-6 |
| GZT0932 | 560 | 80-150 | 2×2.4 | 10 | 4-6 |
| GZT1148 | 600 | 150-300 | 2×5.5 | 10 | 4-6 |
| GZT1560 | 1000 | 400-600 | 2×13 | 10 | 4-6 |
