Product Details:
Payment & Shipping Terms:
|
| Product: | Magnetic Separator | Feeding Size: | 2-0/3-0mm |
|---|---|---|---|
| Application: | Ultrafine Clay Minerals (kaolin, Bauxite, Etc.) | Processing Capacity: | 10-20t/h |
| Cylinder Speed : | <35r/min | Warranty: | 12 Months |
| Port: | QingDao,ShangHai,TianJin | Classification: | Ore Dressing Equipment |
| High Light: | 20t/H Industrial Magnetic Separator,20t/H Magnetic Separator Machine,1200mm Cylinder Magnetic Separator Machine |
||

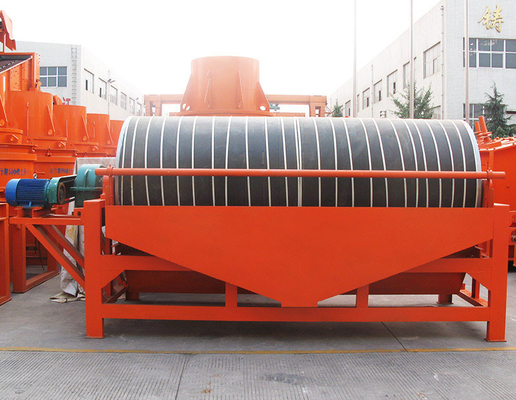

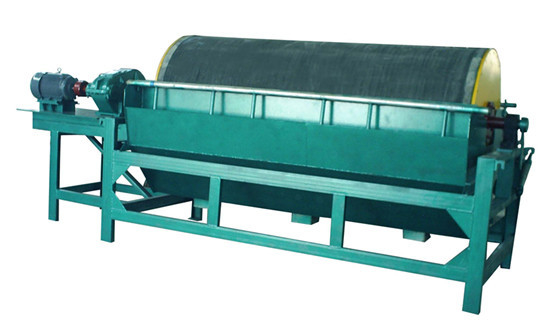

Ore Dressing Equipment Magnetic Separator For Magnetic Separation Plant
1. Ore dressing equipment magnetic separator product description:
The dressing equipment is suitable for the separation of strong magnetic minerals.
Magnetic separator is one of the most widely used and versatile machines in the industry, which is suitable for the separation of materials with magnetic differences. Magnetic separator is widely used in mining, wood industry, kiln industry, chemical, food and other industries. And for the mining industry, the magnetic separator is suitable for particle size of 50mm below manganese ore, magnetite, pyrrhotite, roasted ore, ilmenite, hematite and other materials wet or dry magnetic separation, also used for non-metallic ore, building materials and other materials in the removal of iron operations. Magnetic separator is divided into electromagnetic magnetic separator and permanent magnetic separator two categories, permanent magnetic separator magnetic system, mostly made of high-quality ferrite materials or with rare earth magnetic steel composite, earlier, magnetic separator magnetic tube surface average magnetic induction intensity of 80-400mT. With the continuous development of technology, the magnetic separator can be made into a roller, the magnetic field intensity has also been increased to 1650mT, has been the highest measured magnetic field intensity of permanent magnet magnetic separator. And electromagnetic magnetic separator compared to permanent magnetic separator, its magnetic flux is stronger, often more effective, but because of its electromagnetic nature, power consumption, vulnerable, difficult to repair, so that the budget is not high enterprises have into the permanent magnet embrace.
2. Ore dressing equipment magnetic separator product parameters:
| Model |
Cylinder diameter(mm) |
Cylinder length (mm) |
Cylinder speed (r/min) |
Feeding size(mm) | Processing capacity(t/h) | Power (KW) |
| CTB6012 | 600 | 1200 | <35 | 2-0 | 10-20 | 1.5 |
| CTB6018 | 600 | 1800 | <35 | 2-0 | 15-30 | 2.2 |
| CTB7518 | 750 | 1800 | <35 | 2-0 | 20-45 | 2.2 |
| CTB9018 | 900 | 1800 | <35 | 3-0 | 40-60 | 3 |
| CTB9021 | 900 | 2100 | <35 | 3-0 | 45-60 | 3 |
| CTB9024 | 900 | 2400 | <28 | 3-0 | 45-70 | 4 |
| CTB1018 | 1050 | 1800 | <20 | 3-0 | 50-75 | 5.5 |
| CTB1021 | 1050 | 2100 | <20 | 3-0 | 50-100 | 5.5 |
| CTB1024 | 1050 | 2400 | <20 | 3-0 | 60-120 | 5.5 |
| CTB1218 | 1200 | 1800 | <18 | 3-0 | 80-140 | 5.5 |
| CTB1224 | 1200 | 2400 | <18 | 3-0 | 85-180 | 7.5 |
| CTB1230 | 1200 | 3000 | <18 | 3-0 | 100-180 | 7.5 |
3. Ore dressing equipment magnetic separator Application scope :
Ultrafine clay minerals (kaolin, bauxite, etc.) purification: remove ultrafine weak magnetic staining impurity particles (Fe2O3, TiO2) in clay ores;
Reduce Fe2O3 content in quartz sand, feldspar, barite;
Reduce the copper content in molybdenum concentrate;
Coal ash and sulfur removal;
Improve the quality of apatite;
Selection of rare earth minerals, coastal placers and other useful minerals;
Continuous removal of abrasive particles in lubricating oil, recovery and recycling of lubricating oil;
Filtration, recovery and purification of catalysts and other useful materials for the chemical, instrumentation and petroleum industries;
Filtration of water supply and condensate in nuclear and thermal power stations;
Purification of industrial and domestic sewage;
Ore Dressing Equipment Magnetic Separator For Magnetic Separation Plant
