| Product: | 100*150 Diaphragm Jig | Condition: | New |
|---|---|---|---|
| Power: | 0.55KW | Production Capacity: | 0.018-0.6T/h |
| Jig Chamber: | 1-3 Pcs | Weight: | Depands, 130kg |
| Type: | Ore Dressing Equipment | Warranty: | 1 YEAR |
| High Light: | jig separator Ore Dressing Equipment,jig separator High Production Capacity,0.55KW Jig Separator |
||

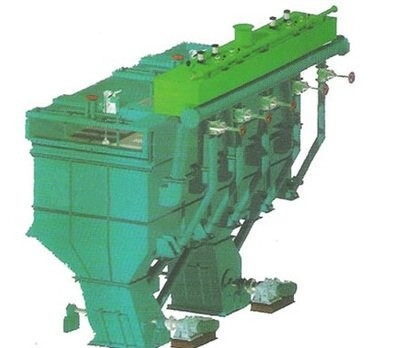

Jigging Separator Washbox Ore Dressing Equipment For Coal Washing Machine
1.Ore Dressing Equipment jig product description
Jig ging pause ore belongs to readjust the sorting operation, it with water as a separation medium, using the selected in the proportion of gangue minerals difference, carries on the sorting, jig belongs to the diaphragm, stroke and speed according to the proportion of the selected mineral, can be adjusted flexibly, widely used in tungsten, tin, alluvial gold, hematite, brown iron, manganese, titanium, antimony, lead, tantalum, niobium metals such as gravity separation.
2. Ore Dressing Equipment Jigging Machines Model:
(1) AM30 jig belongs to large particle jig . Widely used in gravity separation of tungsten, tin, placer gold, red iron, brown iron, manganese, titanium, antimony, lead, tantalum, niobium and other metals. Ltp34/2, LTA55/2, LTA1010/2, LTC-69/2, 2LTC79/4, 2LTC-912/4 and other types of jig can be produced according to customer requirements.
(2) 6109 trapezoidal jig trapezoidal jig , handling capacity of 20-30T per hour.
(3) Zigzag wave JT1070-2 jig has the advantages of water saving and energy saving and can improve the recovery of fine particles and minerals, widely used in tungsten, tin, gold, iron, manganese, titanium, adz, chromium, sulfur and all kinds of alloy smelting slag extraction of metal, etc.
(4) LTA-1010/2 jig is mainly used for processing tungsten, tin, antimony and other ore dressing.
(5) LTP34/2 jig is widely used for jig ging beneficiation of tungsten, tin, gold, iron, lead, zinc, manganese and other heavy metals.
(6) Diaphragm jig type:
jig can be divided into different types according to different standards, such as diaphragm installation position can be divided into:
Side operated diaphragm jig (e.g. Ltp34/2 jig )
Down-acting diaphragm jig (such as LTA1010/2 jig , JT1070/2 jig )
Side acting diaphragm jig (e.g. 2LTC-6109/8T jig )
3.Ore Dressing Equipment Jigging Machines Main technical data of double bucket diaphragm jig :
Product specifications and technical parameters:
| Model SPEC | Jig chamber |
Screen room area (m²) |
Feeding size(mm) | Production capacity(t/h) | Length of stroke(mm) |
Times of stroke (times/min) |
Adding wate(t/h) |
(kg/cm²) |
Motor | Weight (kg) | |
| Type | Power (KW) | ||||||||||
|
100×150 Diaphragm jig |
1 | 0.015 | -3 | 0.018-0.6 | - | 420 | - | 1-1.5 | Y80L-4 | 0.55 | 130 |
|
300×450 Double chamber diaphragm jig |
2 | 0.27 | -12 | 3-6 | 0-26 | 322 | 2-4 | 1-1.5 | Y90S-4 | 1.1 | 745 |
|
1000×1000 Downmoving conical jig |
2 | 2 | 1-5 | 10-25 | 0-26 | 200-350 | 60-80 | 0.6-2 | Y100L-6 | 1.5 | 1700 |
|
370×360 Downmoving conical diaphragm jig |
2 | 0.274 | 6 | 1-3 | 5-25 | 200-250 | 2-5 | - | Y90S-4 | 1.1 | 240 |
| Working leather trapezoidal side moving diaphragm jig | 3 | 2.7 | -3 | 12.5-37.5 | 13-21 | 170-230 | 60-90 | 2 | Y90S-4 | 1.1 | 2000 |
| 670×920jig | 2 | 1.44 | 4-8 | 7-10 | 18-24 | 240-300 | |||||
