| Name: | Washbox | Condition: | New |
|---|---|---|---|
| Jig Chamber: | 1-3 Pcs | Weight: | Depands, 130kg |
| Warranty: | 1 YEAR | Model: | 100*150 Diaphragm Jig |
| Sieve Chamber Area: | 0.015 M² | Rush Times: | 420/min |
| High Light: | Mining Jig Ore Dressing Equipment,3pcs Chamber Mining Jig,high performance Mining Jig |
||
Ore Dressing Equipment Washbox Jigging In Mining Jig Grinder Machine
1.Ore Dressing Equipment jig product description
Jigging pause ore belongs to readjust the sorting operation, it with water as a separation medium, using the selected in the proportion of gangue minerals difference, carries on the sorting, jig belongs to the diaphragm, stroke and speed according to the proportion of the selected mineral, can be adjusted flexibly, widely used in tungsten, tin, alluvial gold, hematite, brown iron, manganese, titanium, antimony, lead, tantalum, niobium metals such as gravity separation.
2. Ore Dressing Equipment jig Product parameters
(1) Overview of double bucket diaphragm jig
Double bucket diaphragm jig is divided into left and right jig surface two types. This jig is a fixed sieve. Suitable for the separation of metal ore, such as tungsten, gold containing placer, tin ore, etc., can be used for the selection of fine materials, can also be used for the selection of coarse materials, the maximum ore feeding particle size of 6-8mm, but in the individual case of the separation of placer, the maximum particle size of 12mm.
(2) Structure and usage instructions of double bucket diaphragm jig

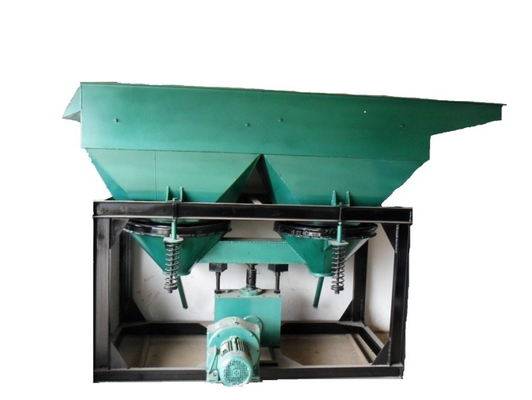

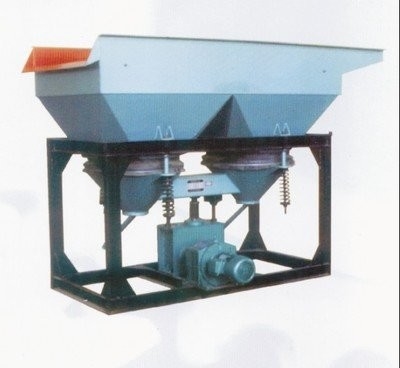

LTS300×450 double bucket diaphragm jig structure is composed of: fuselage, transmission device, water separator, diaphragm and latch and other main parts, the body has two sizes of hopper, each diaphragm hopper is divided into jig area and diaphragm area with the bottom partition. jig ging process depends on the rubber diaphragm for up and down reciprocating motion caused by the medium (water) to carry out. The motor drives the big leather wheel through the triangle belt to rotate, so that the connecting rod on the eccentric shaft moves up and down, and the rocker arm connected with the connecting rod also moves up and down, and there are two connecting rods on the rocker arm connected to the rubber diaphragm, so that the diaphragm gets up and down reciprocating movement, jig ging.
According to the grain size of the treated ore, the stroke of the connecting rod can be changed and different stroke can be selected to obtain the best jig ging effect. The method of changing the punching times is to replace the small leather belt wheel. There can be two kinds of punching times: 322 times/min; 420 beats per minute. The stroke selection method is to loosen the set screw and nut, pull out the locating pin, and rotate the relative position between the eccentric adjusting sleeve and the eccentric shaft. There are 11 different strokes (0-25.3mm).
Due to the addition of a sieve on top of the working sieve, the jig can be used to handle materials with uneven particle size. (Note: this screen can not be supplied according to the order requirements) selected raw ore is sent into the jig ging chamber, due to the agitation of the diaphragm, the ore particles in the medium are stratified according to the specific gravity; Fine and heavy ore particles through the gap and sieve of artificial bed particles, set in the jig bucket storage, the upper coarse and light ore particles (minerals) by the medium flow to the end of the sieve discharge mouth, because the position of the latter jig chamber is 50mm lower than the former jig chamber, so the light ore particles overflow through the tail plate of the former chamber and enter the latter chamber, and be jig ged again. The height of tail plate position can be adjusted according to the need to control the size of ore discharge. The concentrate in the storage and discharge hopper is discharged from the discharge pipe periodically.
3. Ore Dressing Equipment Main technical data of double bucket diaphragm jig :
Product specifications and technical parameters:
| Model SPEC | Jig chamber |
Screen room area (m²) |
Feeding size(mm) | Production capacity(t/h) | Length of stroke(mm) | Times of stroke(times/min) | Adding wate(t/h) |
(kg/cm²) |
Motor | Weight (kg) | |
| Type | Power (KW) | ||||||||||
|
100×150 Diaphragm jig |
1 | 0.015 | -3 | 0.018-0.6 | - | 420 | - | 1-1.5 | Y80L-4 | 0.55 | 130 |
|
300×450 Double chamber diaphragm jig |
2 | 0.27 | -12 | 3-6 | 0-26 | 322 | 2-4 | 1-1.5 | Y90S-4 | 1.1 | 745 |
|
1000×1000 Downmoving conical jig |
2 | 2 | 1-5 | 10-25 | 0-26 | 200-350 | 60-80 | 0.6-2 | Y100L-6 | 1.5 | 1700 |
|
370×360 Downmoving conical diaphragm jig |
2 | 0.274 | 6 | 1-3 | 5-25 | 200-250 | 2-5 | - | Y90S-4 | 1.1 | 240 |
| Working leather trapezoidal side moving diaphragm jig | 3 | 2.7 | -3 | 12.5-37.5 | 13-21 | 170-230 | 60-90 | 2 | Y90S-4 | 1.1 | 2000 |
| 670×920jig | 2 | 1.44 | 4-8 | 7-10 | 18-24 | 240-300 | |||||
