| Name: | XB Serise Mineral Mixer | Condition: | New |
|---|---|---|---|
| Usage: | Mining, Metallurgy, Pharmaceutical | Color: | Custom |
| Tank Dia: | 70-3500 Mm | Weight: | 228-7110 Kg |
| Motor Power: | 1.1-22 Kw | Classification: | Ore Dressing Equipment |
| High Light: | Large Capacity Ore Dressing Equipment,Ore Dressing Equipment agitator mixer,Agitator Mixer 22kw |
||

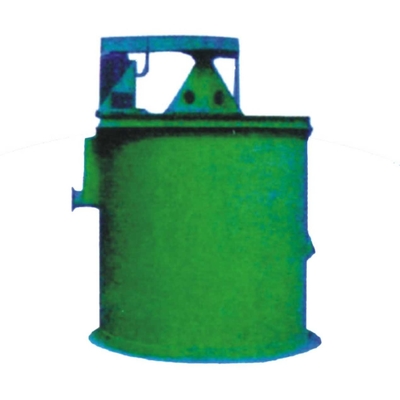

Large Capacity Beneficiation Plant Mineral Mixer For Ore Dressing Equipment
1. Mineral mixer of ore dressing equipment
Mineral mixer is driven by the motor triangle belt rotating impeller, so as to dilute the pulp, can reach the concentration ratio of the next beneficiation process, this machine is suitable for mining, can also be used for various chemical industry. In the beneficiation process often see such as: used in the gravity separation process before the mortar pump, used to dilute the material in order to achieve the suction concentration of the mortar pump.
2. Working principle of dressing mixing barrel ore dressing equipment
Mineral mixer is driven by the motor triangle belt rotating impeller, the drug and pulp fully mixed evenly, increase the reaction time of the drug to strengthen the quality of the drug reaction equipment, this machine is suitable for mining, can also be used as a variety of chemical industry trough cake stirring.
It is used for concentration not greater than 30% (by weight) fixed component particle size less than 1mm It is in the form of a flat-bottomed barrel radial cycle spiral turbomachinery stirring type. Before use, tighten the bolts of the pump body, rotate the pump shaft to check whether the replacement wheel is flexible, and then start the machine to run, and other flotation machines. Wear parts: impeller, stator.
3. Product parameters of Mineral mixer of ore dressing equipment
| Item | Internal dimensions of the tank | Effective volume(m3) | Mixer | Motor | Weight (kg) | |||
| Diameter(mm) | Depth(mm) | Diameter(mm) | Speed(r/min) | Model | Power (KW) | |||
| XB-750 | 750 | 750 | 0.26 | 240 | 530 | Y90S-4 | 1.1 | 228 |
| XB-1000 | 1000 | 1000 | 0.58 | 240 | 530 | Y90L-4 | 1.5 | 436 |
| XB-1200 | 1200 | 1200 | 1.14 | 400 | 320 | Y100L2-4 | 3 | 765 |
| XB-1500 | 1500 | 1500 | 2.2 | 400 | 320 | Y100L2-4 | 3 | 1083 |
| XB-2000 | 2000 | 2000 | 5.46 | 550 | 230 | Y132M2-6 | 5.5 | 1671 |
| XB-2500 | 2500 | 2500 | 11.2 | 650 | 200 | Y160L-6 | 11 | 3438 |
| XB-3000 | 3000 | 3000 | 19.1 | 700 | 210 | Y225S-8 | 18.5 | 4613 |
| XB-3500 | 3500 | 3500 | 30 | 850 | 230 | Y225M-8 | 22 | 7110 |
