Product Details:
Payment & Shipping Terms:
|
| Product: | XB Serise Mineral Mixer | Condition: | New |
|---|---|---|---|
| Classification Size: | 2-150μm | Application Field: | In High Hardness Materials, Non-metallic Minerals, Chemical, Food And Medicine |
| Tank Diameter Mm: | 70-3500 | Weight Kg: | 228-7110 |
| Motor Power Kw: | 1.1-22 | Type: | Ore Dressing Equipment |
| High Light: | Ore Dressing Equipment Mineral Mixer,22kw Ore Dressing Equipment,22kw ore mixer |
||

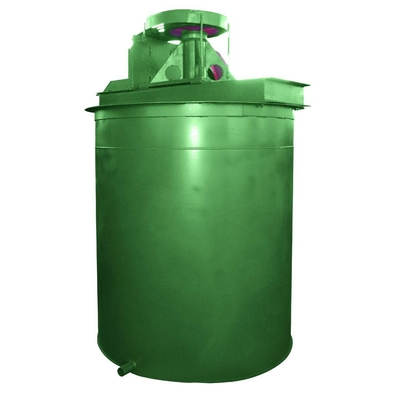

Ore Dressing Equipment Mineral Mixer Widely Used In High Hardness Materials
1.Mineral mixer of ore dressing equipment
Mineral mixer is driven by the motor triangle belt rotating impeller, so as to dilute the pulp, can reach the concentration ratio of the next beneficiation process, this machine is suitable for mining, can also be used for various chemical industry. In the beneficiation process often see such as: used in the gravity separation process before the mortar pump, used to dilute the material in order to achieve the suction concentration of the mortar pump.
2. Working principle of dressing mixing barrel ore dressing equipment
Mineral mixer is driven by the motor triangle belt rotating impeller, the drug and pulp fully mixed evenly, increase the reaction time of the drug to strengthen the quality of the drug reaction equipment, this machine is suitable for mining, can also be used as a variety of chemical industry trough cake stirring.
It is used for concentration not greater than 30% (by weight) fixed component particle size less than 1mm It is in the form of a flat-bottomed barrel radial cycle spiral turbomachinery stirring type. Before use, tighten the bolts of the pump body, rotate the pump shaft to check whether the replacement wheel is flexible, and then start the machine to run, and other flotation machines. Wear parts: impeller, stator.
3. Instructions for use of Mineral mixer ore dressing equipment
Before use, first tighten the bolts of the pump body, rotate the pump shaft to ensure that the replacement wheel is flexible, and then start up and run. Vulnerable parts: impeller and stator.
4. Product parameters of Mineral mixer of ore dressing equipment
| Item | Internal dimensions of the tank | Effective volume(m3) | Mixer | Motor | Weight (kg) | |||
| Diameter(mm) | Depth(mm) | Diameter(mm) | Speed(r/min) | Model | Power (KW) | |||
| XB-750 | 750 | 750 | 0.26 | 240 | 530 | Y90S-4 | 1.1 | 228 |
| XB-1000 | 1000 | 1000 | 0.58 | 240 | 530 | Y90L-4 | 1.5 | 436 |
| XB-1200 | 1200 | 1200 | 1.14 | 400 | 320 | Y100L2-4 | 3 | 765 |
| XB-1500 | 1500 | 1500 | 2.2 | 400 | 320 | Y100L2-4 | 3 | 1083 |
| XB-2000 | 2000 | 2000 | 5.46 | 550 | 230 | Y132M2-6 | 5.5 | 1671 |
| XB-2500 | 2500 | 2500 | 11.2 | 650 | 200 | Y160L-6 | 11 | 3438 |
| XB-3000 | 3000 | 3000 | 19.1 | 700 | 210 | Y225S-8 | 18.5 | 4613 |
| XB-3500 | 3500 | 3500 | 30 | 850 | 230 | Y225M-8 | 22 | 7110 |
After-sales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands. Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time. LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
