| Product: | High-efficiency Probability Screen | Screen Size: | 1.0*1.4-3.0*2.5(m) |
|---|---|---|---|
| Type: | GS Series | Capacity(t/h): | 60-350tph |
| Keyword: | Screen | Appliacation: | Multi-stage Screening And Dry Material Operation |
| Warranty: | 12 Months | Classification: | Ore Dressing Equipment |
| High Light: | 210tph Linear Vibrating Sieve,210tph Probability Screen,Probability Screen High Finished Rate |
||

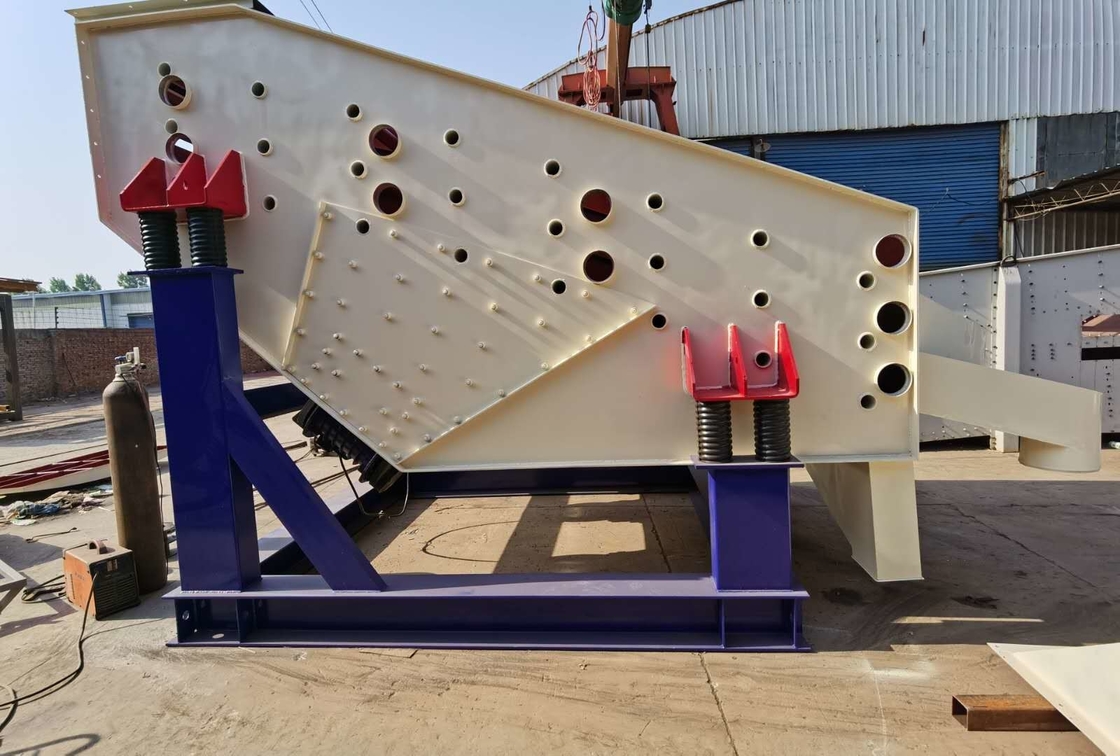

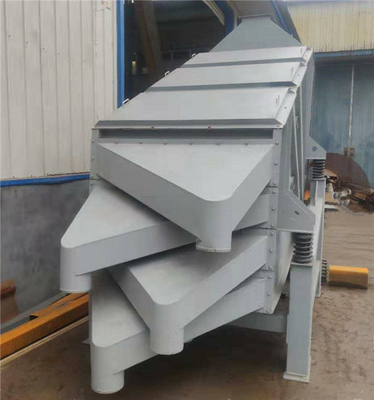

Probability Screen With High Finished Product Qualification Rate
1. Product overview of Probability Screen for Ore Dressing Equipment
The GS series of high-efficiency probability screens are developed and manufactured by multi-disciplinary comprehensive technology principles such as probability, physics, statistics, etc. It is a new type of green environmental protection screening equipment, widely used in refractory materials, building materials, metallurgy, abrasives, chemicals, and food The fine screening of medium and fine materials in industries such as, medicine and other industries is especially suitable for multi-stage screening and dry material operations in refractory materials, machine-made sand, dry mortar, coal, chemical industries and other industries. Probability Screen for Ore Dressing Equipment
2. Probability screen advantages of Probability Screen for Ore Dressing Equipment:
High finished product qualification rate
Low energy consumption
High screening efficiency and large processing capacity
Easy to replace the screen
The screen does not block holes
Small size and many grain types
Overall sealing, environmental protection and energy saving
Easy to use and maintain
Save space
Low working noise and good shock absorption effect
Long equipment life and low failure rate
Series of products have strong versatility for wearing parts
Fast fastener
Compound shock absorption
High-quality dedicated screen
Special rubber strip anti-leakage material
Quick access hole
Quickly replace the screen
3. Technical parameters of Probability Screen for Ore Dressing Equipment
|
Model |
Number of layers |
Screen size(m) |
Screening size range(mm) |
Installed power(kw) |
Processing capacity(t/h) |
Max. size(m) |
|
GS1015 |
2-6 |
1.0*1.4 |
0.075-20 |
2.25-3.7 |
60 |
2.5*1.6*2.0 |
|
GS1025 |
2-6 |
1.0*2.5 |
0.15-30 |
7.4-9 |
100 |
4.6*1.8*3.8 |
|
GS1625 |
2-6 |
1.5*2.5 |
0.2-50 |
9-14 |
160 |
4.7*2.2*3.8 |
|
GS2125 |
2-6 |
2.0*2.5 |
0.2-50 |
9-14 |
210 |
4.8*2.8*3.8 |
|
GS2625 |
2-6 |
2.5*2.5 |
0.3-50 |
22-30 |
260 |
4.9*3.5*3.8 |
|
GS3125 |
2-6 |
3.0*2.5 |
0.3-50 |
24-30 |
350 |
5.0*3.7*3.8 |
(1) The processing capacity varies with factors such as the type of screening material, particle size, gradation, moisture content, density and other factors;
(2) The typical processing capacity in the table is the reference value of limestone with a particle size of 13mm, a density of 1.6t/m³, and a moisture content of less than 2%;
(3) Under the same conditions, the time required for screening materials with probability screens is only 1/3~1/6 of that of ordinary vibrating linear screens, and the processing capacity per unit area of the screen is 5-10 times larger than that of ordinary vibrating linear screens ；
(4) The manufacturer reserves the right to revise the technical parameters, please contact our company for details.
