| Product Name: | High-efficiency Probability Screen | Type: | GS Series |
|---|---|---|---|
| Use For: | Multi-stage Screening And Dry Material Operation | Max. Size(m): | 5.0*3.7*3.8 |
| Power: | 2.25-30 (kw) | Layer's Quantity: | 2-6 |
| Classification: | Ore Dressing Equipment | Warranty: | 12 Months |
| High Light: | Large Processing Capacity Probability Screen,Probability Screen Integrated Design,Large Capacity Vibrating Screen Machine |
||

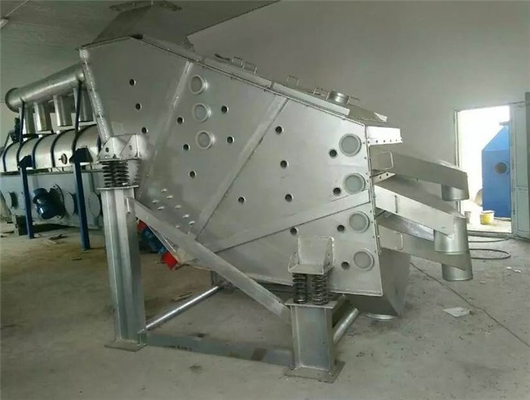

High Screening Efficiency And Large Processing Capacity Probability Screen
1. Product overview of Probability Screen for Ore Dressing Equipment
The GS series of high-efficiency probability screens are developed and manufactured by multi-disciplinary comprehensive technology principles such as probability, physics, statistics, etc. It is a new type of green environmental protection screening equipment, widely used in refractory materials, building materials, metallurgy, abrasives, chemicals, and food The fine screening of medium and fine materials in industries such as, medicine and other industries is especially suitable for multi-stage screening and dry material operations in refractory materials, machine-made sand, dry mortar, coal, chemical industries and other industries. Probability Screen for Ore Dressing Equipment
2. Technical parameters of Probability Screen for Ore Dressing Equipment
Model | Number of layers | Screen size(m) | Screening size range(mm) | Installed power(kw) | Processing capacity(t/h) | Max. size(m) |
GS1015 | 2-6 | 1.0*1.4 | 0.075-20 | 2.25-3.7 | 60 | 2.5*1.6*2.0 |
GS1025 | 2-6 | 1.0*2.5 | 0.15-30 | 7.4-9 | 100 | 4.6*1.8*3.8 |
GS1625 | 2-6 | 1.5*2.5 | 0.2-50 | 9-14 | 160 | 4.7*2.2*3.8 |
GS2125 | 2-6 | 2.0*2.5 | 0.2-50 | 9-14 | 210 | 4.8*2.8*3.8 |
GS2625 | 2-6 | 2.5*2.5 | 0.3-50 | 22-30 | 260 | 4.9*3.5*3.8 |
GS3125 | 2-6 | 3.0*2.5 | 0.3-50 | 24-30 | 350 | 5.0*3.7*3.8 |
(1) The processing capacity varies with factors such as the type of screening material, particle size, gradation, moisture content, density and other factors;
(2) The typical processing capacity in the table is the reference value of limestone with a particle size of 13mm, a density of 1.6t/m³, and a moisture content of less than 2%;
(3) Under the same conditions, the time required for screening materials with probability screens is only 1/3~1/6 of that of ordinary vibrating linear screens, and the processing capacity per unit area of the screen is 5-10 times larger than that of ordinary vibrating linear screens ；
(4) The manufacturer reserves the right to revise the technical parameters, please contact our company for details.
3. Application of probability screen in complete refractory processing system for Ore Dressing Equipment
(1) Advanced concepts, integrated design, standardized production, efficient installation, intelligent control and integrated operation;
(2) Save land and factory, reduce the space occupied by the entire production process, and have high economic performance;
(3) Centralized dust removal, good dust removal effect, actively responding to national environmental protection policies, and fully meeting national emission standards;
(4) Improve production efficiency and reduce labor. Compared with the traditional method, the material conveying path is shortened, automatic production is realized, and the efficiency is greatly improved;
(5) Good energy saving effect. Compared with traditional methods, it consumes less power and achieves higher economic benefits;
(6) The finished material contains extremely low iron content;
(7) Reasonable matching of process selection and stable production and operation;
(8) The complete set of building station processing technology systems that are matched with equipment such as multi-layer high-efficiency probability screens and vertical plastic sand making machines developed by our company are a perfect combination;
(9) Compared with the ordinary refractory production system, the output per hour can be doubled;
(10) Standardized combined production tailors a suitable process system for customers.
Probability Screen for Ore Dressing Equipment
Probability Screen for Ore Dressing Equipment
