Product Details:
Payment & Shipping Terms:
|
| Product Name: | Probability Screen | Screen Material: | Dry Material |
|---|---|---|---|
| Capacity(t/h): | 60-350tph | Usage: | Multi-stage Screening And Dry Material Operation |
| Feature: | Easy To Use And Maintain | Power(kw): | 2.25-30 (kw) |
| Number Of Layers: | 2-6 | Type: | Ore Dressing Equipment |
| High Light: | Dry Material Probability Screen,Probability Screen 350tph,Dry Material sand screen machine |
||
Ore Dressing Equipment GS Series Easy To Use And Maintain Probability Screen
1. Structural features of Probability Screen for Ore Dressing Equipment
The probability screen uses a screen with a larger size than the screening size to classify the material. It consists of a closed frame, a set of multiple layers overlapping each other, the slope increases from top to bottom, the screen with decreasing screen size, inlet and outlet hoppers and more It consists of a high-efficiency vibration motor.

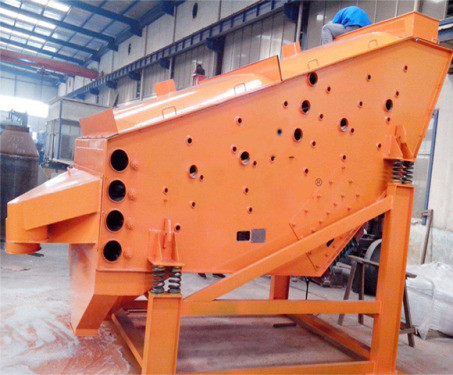

Probability Screen for Ore Dressing Equipment
2. Technical parameters of Probability Screen for Ore Dressing Equipment
|
Model |
Number of layers |
Screen size(m) |
Screening size range(mm) |
Installed power(kw) |
Processing capacity(t/h) |
Max. size(m) |
|
GS1015 |
2-6 |
1.0*1.4 |
0.075-20 |
2.25-3.7 |
60 |
2.5*1.6*2.0 |
|
GS1025 |
2-6 |
1.0*2.5 |
0.15-30 |
7.4-9 |
100 |
4.6*1.8*3.8 |
|
GS1625 |
2-6 |
1.5*2.5 |
0.2-50 |
9-14 |
160 |
4.7*2.2*3.8 |
|
GS2125 |
2-6 |
2.0*2.5 |
0.2-50 |
9-14 |
210 |
4.8*2.8*3.8 |
|
GS2625 |
2-6 |
2.5*2.5 |
0.3-50 |
22-30 |
260 |
4.9*3.5*3.8 |
|
GS3125 |
2-6 |
3.0*2.5 |
0.3-50 |
24-30 |
350 |
5.0*3.7*3.8 |
Probability Screen for Ore Dressing Equipment
(1) The processing capacity varies with factors such as the type of screening material, particle size, gradation, moisture content, density and other factors;
(2) The typical processing capacity in the table is the reference value of limestone with a particle size of 13mm, a density of 1.6t/m³, and a moisture content of less than 2%;
(3) Under the same conditions, the time required for screening materials with probability screens is only 1/3~1/6 of that of ordinary vibrating linear screens, and the processing capacity per unit area of the screen is 5-10 times larger than that of ordinary vibrating linear screens ；
(4) The manufacturer reserves the right to revise the technical parameters, please contact our company for details.
3. Application of probability screen in complete refractory processing system
In order to meet the national requirements of high efficiency, energy saving and environmental protection, our company combines the actual situation of the crushing and processing of refractory materials (such as bauxite, quartz sand, magnesia, etc.) at home and abroad, and based on years of research, optimization and improvement and practice, we have launched a Brand-new refractory material crushing production and processing technology system. The system not only covers a small area, can be continuously produced around the clock, intelligent control, convenient maintenance, environmental protection, but also through optimization and improvement of configuration, system matching, etc., make this product in terms of technical performance, reliability, energy saving and environmental protection. Industry leading level.
Probability Screen for Ore Dressing Equipment
(1) Advanced concepts, integrated design, standardized production, efficient installation, intelligent control and integrated operation;
(2) Save land and factory, reduce the space occupied by the entire production process, and have high economic performance;
(3) Centralized dust removal, good dust removal effect, actively responding to national environmental protection policies, and fully meeting national emission standards;
(4) Improve production efficiency and reduce labor. Compared with the traditional method, the material conveying path is shortened, automatic production is realized, and the efficiency is greatly improved;
(5) Good energy saving effect. Compared with traditional methods, it consumes less power and achieves higher economic benefits;
(6) The finished material contains extremely low iron content;
(7) Reasonable matching of process selection and stable production and operation;
(8) The complete set of building station processing technology systems that are matched with equipment such as multi-layer high-efficiency probability screens and vertical plastic sand making machines developed by our company are a perfect combination;
(9) Compared with the ordinary refractory production system, the output per hour can be doubled;
(10) Standardized combined production tailors a suitable process system for customers.
Probability Screen for Ore Dressing Equipment
