Product Details:
Payment & Shipping Terms:
|
| Product: | Plate Rolling Machine | Model: | Hydraulic Plate Rolling Machine |
|---|---|---|---|
| Hydraulic Motor: | 5.5kw | Sheet Yield Limit: | 245MPa |
| Main Drive Motor Power: | 15 Kw | Reel Speed: | 5.5 M/min |
| Warranty: | 12 Months | Classification: | Metallurgy Machine |
| High Light: | Symmetrical automatic plate rolling machine,Automatic Plate Rolling Machine 5.5m/Min,three roller plate rolling machine 5.5m/Min |
||

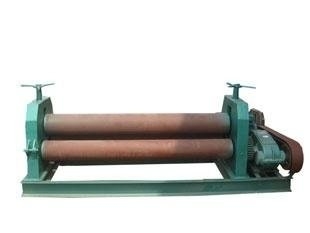

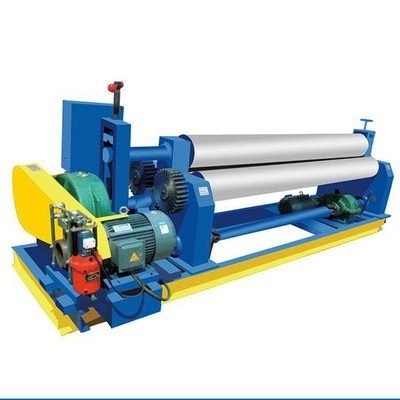

W11 Series Hydraulic Three-Roll Symmetrical Plate Rolling Machine
Ⅰ.Technical parameters of Hydraulic Three-Roll Symmetrical Plate Rolling Machine of Metallurgy Machine
| Model No. | W11-10*2500 |
| Maximum roll plate thickness (mm) | 10 |
| Maximum roll board width (mm) | 3300 |
| Upper roll diameter (mm) | 273 |
| Lower roll diameter (mm) | 245 |
| Hydraulic motor (Kw) | 5.5 |
| Auxiliary motor power (Kw) | - |
| Sheet yield limit (MPa) | 245 |
| Main drive motor power (Kw) | 15 |
| Reel speed (m/min) | 5.5 |
| Main reducer | JZQ400 |
Ⅱ.Equipment USE of Hydraulic Three-Roll Symmetrical Plate Rolling Machine of Metallurgy Machine
The plate rolling machine is mainly used for bending metal sheet, a kind of general equipment, can complete the prebending of the end face of the plate, can be rolled round, arc and some conical workpiece Angle range, in petroleum, chemical industry, boiler, hydropower, shipbuilding, industrial equipment installation and machinery manufacturing industry has a wide range of applications.
The up and down movement of the upper roller adopts hydraulic transmission. Through the hydraulic pump and cylinder to achieve the straight line movement of the roller, is characterized by stability, automatic oil return when overload, maximize the protection of the equipment; When rolling the cone, the upper roll can be adjusted at will. Compared with the manual pressing down the rolling machine, it improves the efficiency and reduces the labor intensity. It is suitable for the large workload of the rolling project.
Ⅲ.Matters needing attention of Hydraulic Three-Roll Symmetrical Plate Rolling Machine of Metallurgy Machine
1. It is strictly prohibited to use hydraulic oil.
2. Overload is strictly prohibited.
3. It is strictly prohibited to run after overlapping of two plate heads (in the case that the height of the upper roll is not adjusted), which is easy to damage the gear and roll.
4. Be careful not to let foreign matter fall into the gear and oil filling port.
5. No feet or hands shall be placed on the rotating workpiece or roll during the rolling operation. No one shall be allowed on both sides of the rolling machine to prevent foreign bodies from escaping and accidents.
6. There must be leakage protection device.
7. When lifting the upper roll, it is necessary to keep a certain distance between the upper roll and the upper limit screw.
8. The oil drum is filled with butter, and then add enough oil in the gearbox, do not disassemble casually.
9. The direction of the motor must be rotated according to the direction indicated.
10. The oil pump motor is prohibited to reverse.
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
