Product Details:
Payment & Shipping Terms:
|
| Name: | Spiral Classifier | Model: | FG Series Spiral Classifier |
|---|---|---|---|
| Spiral Diameter: | 300-3000 (mm) | Usage: | Metal Ore-dressing,mineral Processing |
| Machine Weight: | 0.7-84.8(t) | Application: | Energy，Mining |
| Classification: | Ore Dressing Equipment | Warranty: | 12 Months |
| High Light: | Spiral Classifier For Gold Mining,High Efficiency Spiral Classifier,High Efficiency Ore Dressing Equipment |
||
High Efficiency Ore Dressing Equipment Spiral Classifier For Gold Mining
1. Introduction of spiral classifier (Spiral classifier) Ore Dressing Equipment:
Classifier is an important beneficiation equipment in mineral processing, commonly used is mainly spiral classifier. Classification machine is widely used in concentrator and ball mill with closed circuit cycle process separation of ore sand, or used in gravity concentrator to classify ore sand and fine mud, and metal processing process of pulp particle size classification, and washing operations in desliming, dehydration and other operations. The machine has the characteristics of simple structure, reliable operation and convenient operation.
2. Product parameters of Screw classifier spiral classifier
| Model | Spiral diameter (mm) | Spiral rotation speed (r/min) | Trough length (mm<=) | Motor power(kw<=) | Dimensions(mm<=) | Machine Weight (t) | |||
| For driving | For lifting | Length | Width | Height | <= | ||||
| FG-3 | 300 | 12-30 | 3000 | 1.1 | ---- | 3850 | 490 | 1140 | 0.7 |
| FG-5 | 500 | 8-12.5 | 4500 | 1.1 | ---- | 5430 | 680 | 1480 | 1.9 |
| FG-7 | 750 | 6-10 | 5500 | 3 | ---- | 6720 | 980 | 1820 | 3.1 |
| FG-10 | 1000 | 5-8 | 6500 | 5.5 | ---- | 7590 | 1240 | 2380 | 4.9 |
| FC-10 | 8400 | 7.5 | 9600 | 1240 | 2680 | 6.2 | |||
| FG-12 | 1200 | 4-6 | 6500 | 7.5 | 2.2 | 8180 | 1570 | 3110 | 8.5 |
| FC-12 | 8400 | 7.5 | 2.2 | 10370 | 1540 | 3920 | 11.0 | ||
| 2FG-12 | 6500 | 15 | 4.4 | 8230 | 2790 | 3110 | 15.8 | ||
| 2Fc-12 | 8400 | 15 | 4.4 | 10370 | 2790 | 3920 | 17.6 | ||
| FG-15 | 1500 | 4-6 | 8300 | 7.5 | 2.2 | 10410 | 1880 | 4080 | 12.5 |
| FC-15 | 10500 | 7.5 | 2.2 | 12670 | 1820 | 4890 | 16.8 | ||
| 2FG-15 | 8300 | 15 | 4.4 | 10410 | 3390 | 4080 | 22.1 | ||
| 2FC-15 | 10500 | 15 | 4.4 | 12670 | 3370 | 4890 | 30.7 | ||
| FG-20 | 2000 | 3.6-5.5 | 8400 | 11-15 | 3 | 10790 | 2530 | 4490 | 20.5 |
| FC-20 | 12900 | 11-15 | 3 | 15610 | 2530 | 5340 | 28.5 | ||
| 2FG-20 | 8400 | 22-30 | 6 | 11000 | 4600 | 4490 | 35.5 | ||
| 2FC-20 | 12900 | 22-30 | 6 | 15760 | 4600 | 5640 | 48.7 | ||
| FG-24 | 2400 | 3.67 | 9130 | 15 | 3 | 11650 | 2910 | 4970 | 26.8 |
| FC-24 | 14130 | 18.5 | 4 | 16580 | 2930 | 7190 | 41.0 | ||
| 2FG-24 | 9130 | 30 | 6 | 12710 | 5430 | 5690 | 45.8 | ||
| 2FC-24 | 14130 | 37 | 8 | 17710 | 5430 | 8000 | 67.9 | ||
| 2FG-30 | 3000 | 3.2 | 12500 | 40 | 8 | 16020 | 6640 | 6350 | 73.0 |
| 2FC-30 | 14300 | --- | --- | 17091 | --- | 8680 | 84.8 | ||

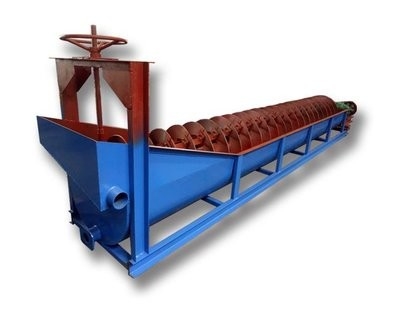

High Efficiency Ore Dressing Equipment Spiral Classifier For Gold Mining

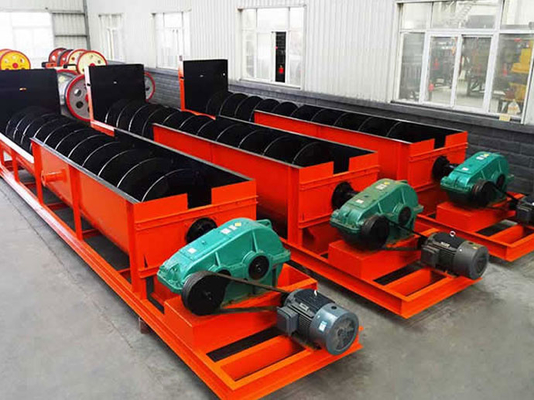

High Efficiency Ore Dressing Equipment Spiral Classifier For Gold Mining

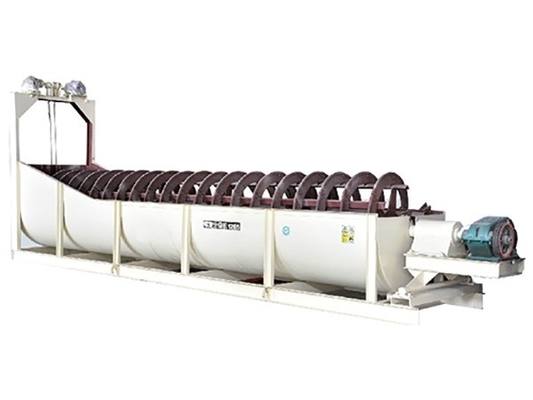

High Efficiency Ore Dressing Equipment Spiral Classifier For Gold Mining
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
