Product Details:
Payment & Shipping Terms:
|
| Product: | Spiral Classifier | Model: | FG Series Spiral Classifier |
|---|---|---|---|
| Type: | FG-3 | Trough Length: | ≤3000 Mm |
| Motor Power: | 1.1kw | Spiral Rotation Speed: | 12-30 R/min |
| Spiral Diameter: | 300mm | Classification: | Ore Dressing Equipment |
| Warranty: | 12 Months | ||
| High Light: | Spiral Classifier 30r/Min,Sand Washing Machine 30r/Min,CE Mineral Spiral Classifier |
||
Mineral Spiral Classifier Sand Washing Machine Of Ore Dressing Equipment
1. Classifier classification of Ore Dressing Equipment
Classifiers are mainly divided into high weir single spiral classifier, double spiral classifier, sunken single spiral classifier, double spiral classifier.
2. Spiral classifier structure of Ore Dressing Equipment
The base of the machine is made of channel steel, the body is made of steel plate welding. The water inlet head and shaft head of spiral shaft are made of cast iron, which are wear-resistant and durable.
3. Product parameters of Screw classifier spiral classifier of Ore Dressing Equipment
| Model | Spiral diameter (mm) | Spiral rotation speed (r/min) | Trough length (mm<=) | Motor power(kw<=) | Dimensions(mm<=) | Machine Weight (t) | |||
| For driving | For lifting | Length | Width | Height | <= | ||||
| FG-3 | 300 | 12-30 | 3000 | 1.1 | ---- | 3850 | 490 | 1140 | 0.7 |
| FG-5 | 500 | 8-12.5 | 4500 | 1.1 | ---- | 5430 | 680 | 1480 | 1.9 |
| FG-7 | 750 | 6-10 | 5500 | 3 | ---- | 6720 | 980 | 1820 | 3.1 |
| FG-10 | 1000 | 5-8 | 6500 | 5.5 | ---- | 7590 | 1240 | 2380 | 4.9 |
| FC-10 | 8400 | 7.5 | 9600 | 1240 | 2680 | 6.2 | |||
| FG-12 | 1200 | 4-6 | 6500 | 7.5 | 2.2 | 8180 | 1570 | 3110 | 8.5 |
| FC-12 | 8400 | 7.5 | 2.2 | 10370 | 1540 | 3920 | 11.0 | ||
| 2FG-12 | 6500 | 15 | 4.4 | 8230 | 2790 | 3110 | 15.8 | ||
| 2Fc-12 | 8400 | 15 | 4.4 | 10370 | 2790 | 3920 | 17.6 | ||
| FG-15 | 1500 | 4-6 | 8300 | 7.5 | 2.2 | 10410 | 1880 | 4080 | 12.5 |
| FC-15 | 10500 | 7.5 | 2.2 | 12670 | 1820 | 4890 | 16.8 | ||
| 2FG-15 | 8300 | 15 | 4.4 | 10410 | 3390 | 4080 | 22.1 | ||
| 2FC-15 | 10500 | 15 | 4.4 | 12670 | 3370 | 4890 | 30.7 | ||
| FG-20 | 2000 | 3.6-5.5 | 8400 | 11-15 | 3 | 10790 | 2530 | 4490 | 20.5 |
| FC-20 | 12900 | 11-15 | 3 | 15610 | 2530 | 5340 | 28.5 | ||
| 2FG-20 | 8400 | 22-30 | 6 | 11000 | 4600 | 4490 | 35.5 | ||
| 2FC-20 | 12900 | 22-30 | 6 | 15760 | 4600 | 5640 | 48.7 | ||
| FG-24 | 2400 | 3.67 | 9130 | 15 | 3 | 11650 | 2910 | 4970 | 26.8 |
| FC-24 | 14130 | 18.5 | 4 | 16580 | 2930 | 7190 | 41.0 | ||
| 2FG-24 | 9130 | 30 | 6 | 12710 | 5430 | 5690 | 45.8 | ||
| 2FC-24 | 14130 | 37 | 8 | 17710 | 5430 | 8000 | 67.9 | ||
| 2FG-30 | 3000 | 3.2 | 12500 | 40 | 8 | 16020 | 6640 | 6350 | 73.0 |
| 2FC-30 | 14300 | --- | --- | 17091 | --- | 8680 | 84.8 | ||

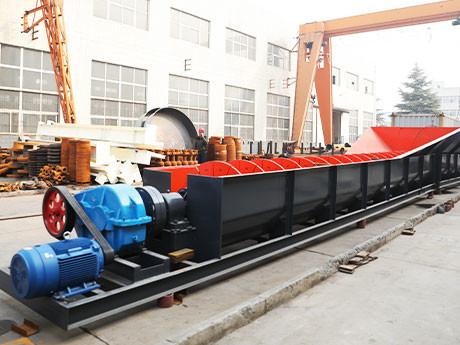

Mineral Spiral Classifier Sand Washing Machine Of Ore Dressing Equipment

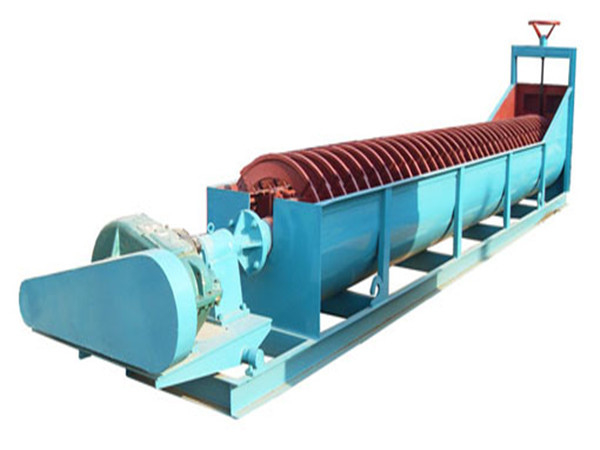

Mineral Spiral Classifier Sand Washing Machine Of Ore Dressing Equipment

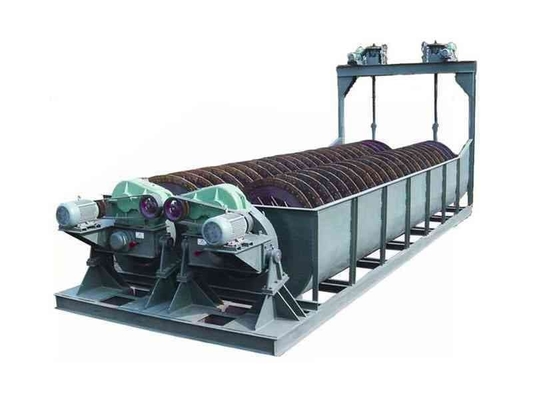

Mineral Spiral Classifier Sand Washing Machine Of Ore Dressing Equipment
After-sales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands. Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time. LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
