Product Details:
Payment & Shipping Terms:
|
| Name: | Spiral Classifier | Model: | 2FG-20 Spiral Classifier |
|---|---|---|---|
| Spiral Diameter (mm): | 2000 Mm | Spiral Rotation Speed (r/min): | 3.6-5.5 R/min |
| Machine Weight (t): | 35.5 T | Used: | Widely Used In Concentrator And Ball Mill |
| Type: | Ore Dressing Equipment | Warranty: | 12 Months |
| High Light: | Ore Beneficiation Equipment Spiral Classifier,2000mm Spiral Classifier,IOS Ore Beneficiation Equipment |
||
Ore Beneficiation Equipment Spiral Classifier For Mineral Separation Processing Plant
1. Working principle of Screw classifier spiral classifier Ore Dressing Equipment
Spiral classifier with the help of the specific gravity of solid particles, so the principle of precipitation in the liquid at different speeds, a mechanical classification equipment. The material in the mill is lower than filtration, and then the coarse material is screwed into the mill feed port by using spiral pieces, and the filtered fine material is discharged from the overflow pipe.
2. Product parameters of Screw classifier spiral classifier Ore Dressing Equipment
| Model | Spiral diameter (mm) | Spiral rotation speed (r/min) | Trough length (mm<=) | Motor power(kw<=) | Dimensions(mm<=) | Machine Weight (t) | |||
| For driving | For lifting | Length | Width | Height | <= | ||||
| FG-3 | 300 | 12-30 | 3000 | 1.1 | ---- | 3850 | 490 | 1140 | 0.7 |
| FG-5 | 500 | 8-12.5 | 4500 | 1.1 | ---- | 5430 | 680 | 1480 | 1.9 |
| FG-7 | 750 | 6-10 | 5500 | 3 | ---- | 6720 | 980 | 1820 | 3.1 |
| FG-10 | 1000 | 5-8 | 6500 | 5.5 | ---- | 7590 | 1240 | 2380 | 4.9 |
| FC-10 | 8400 | 7.5 | 9600 | 1240 | 2680 | 6.2 | |||
| FG-12 | 1200 | 4-6 | 6500 | 7.5 | 2.2 | 8180 | 1570 | 3110 | 8.5 |
| FC-12 | 8400 | 7.5 | 2.2 | 10370 | 1540 | 3920 | 11.0 | ||
| 2FG-12 | 6500 | 15 | 4.4 | 8230 | 2790 | 3110 | 15.8 | ||
| 2Fc-12 | 8400 | 15 | 4.4 | 10370 | 2790 | 3920 | 17.6 | ||
| FG-15 | 1500 | 4-6 | 8300 | 7.5 | 2.2 | 10410 | 1880 | 4080 | 12.5 |
| FC-15 | 10500 | 7.5 | 2.2 | 12670 | 1820 | 4890 | 16.8 | ||
| 2FG-15 | 8300 | 15 | 4.4 | 10410 | 3390 | 4080 | 22.1 | ||
| 2FC-15 | 10500 | 15 | 4.4 | 12670 | 3370 | 4890 | 30.7 | ||
| FG-20 | 2000 | 3.6-5.5 | 8400 | 11-15 | 3 | 10790 | 2530 | 4490 | 20.5 |
| FC-20 | 12900 | 11-15 | 3 | 15610 | 2530 | 5340 | 28.5 | ||
| 2FG-20 | 8400 | 22-30 | 6 | 11000 | 4600 | 4490 | 35.5 | ||
| 2FC-20 | 12900 | 22-30 | 6 | 15760 | 4600 | 5640 | 48.7 | ||
| FG-24 | 2400 | 3.67 | 9130 | 15 | 3 | 11650 | 2910 | 4970 | 26.8 |
| FC-24 | 14130 | 18.5 | 4 | 16580 | 2930 | 7190 | 41.0 | ||
| 2FG-24 | 9130 | 30 | 6 | 12710 | 5430 | 5690 | 45.8 | ||
| 2FC-24 | 14130 | 37 | 8 | 17710 | 5430 | 8000 | 67.9 | ||
| 2FG-30 | 3000 | 3.2 | 12500 | 40 | 8 | 16020 | 6640 | 6350 | 73.0 |
| 2FC-30 | 14300 | --- | --- | 17091 | --- | 8680 | 84.8 | ||

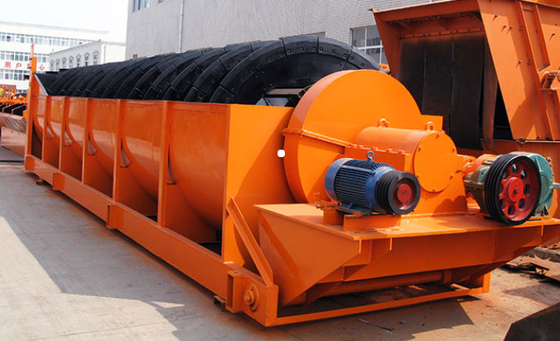

Ore Beneficiation Equipment Spiral Classifier For Mineral Separation Processing Plant

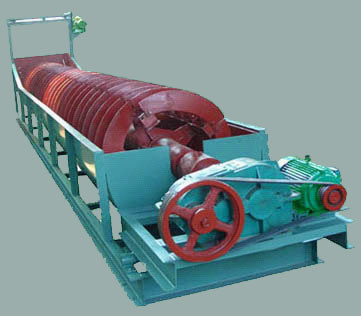

Ore Beneficiation Equipment Spiral Classifier For Mineral Separation Processing Plant
Ore Beneficiation Equipment Spiral Classifier For Mineral Separation Processing Plant
