Product Details:
Payment & Shipping Terms:
|
| Name: | Shaking Table | Power: | 1.1kw |
|---|---|---|---|
| Ore Feed: | 3-35 T/d (tin Ore)c | Type: | Gravity Separator, Grit Concentrating Table |
| Feeding Size: | Min 0.019~0.0037 | Suitable: | Tungsten, Tin, Tantalum, Niobium, Iron, Manganese, Chromium, Titanium, Bismuth, Lead, Gold |
| Classification: | Ore Dressing Equipment | Port: | QingDao,ShangHai,TianJin |
| High Light: | 1.1kw Gold Mining Shaker Table,Mining Shaker Table Energy Efficient,1.1kw Shaker Table Machine |
||
Ore Dressing Equipment Gold Mining Shaker Table For Sale Mineral Separator
1. Scope of application of ore dressing equipment shaking table
The dressing equipment is mainly used for sorting in 2-0.02 mm ore and slime level of tungsten, tin, tantalum, niobium, iron, manganese, chromium, titanium, bismuth, lead, gold and other non-ferrous, black rare metal minerals, sorting 4-0.02 mm pyrite; After changing the form of bed strip appropriately, the final coal and slime are selected; And separate other mixed materials with sufficient specific gravity difference and suitable particle size composition.
2. Structural characteristics of ore dressing equipment shaking table
The dressing equipment is mainly composed of the head of a bed, motor, slope adjuster, bed surface, ore tank, water tank, strip and lubrication system and other eight system parts. The separation mechanism is the use of the specific gravity difference of the sorted minerals, the differential movement provided by the head of the bed, inclined water flow and different forms of the bed, so that the ore particles in the bed surface loose stratification, selective transport, the formation of fan-shaped zone on the bed surface, so as to produce different rich and poor products.
3. Product parameters of ore dressing equipment shaking table
| Coarse sand table | Fine sand table | Slime (slotted) shaking table | Fine mud shaking table | |
| Feed size/mm | 2~0.5 | 0.5~0.074 | 0.07~0.019 | 0.019~0.0037 |
| Ore feed (tin ore)(t/d) | 20~35 | 10~20 | 3~10 | 5~15 |
|
Mineral surface size /mm |
4395×1825 | 4395×1825 | 4395×1825 | 4395×1825 |
|
Mineral surface area /m2 |
7.4 | 7.4 | 7.4 | 7.4 |
| Stroke Length/mm | 16~22 | 11~16 | 8~11 | 5~7 |
| Times of stroke/min-1 | 270~290 | 290~320 | 320~360 | 480~520 |
|
Transverse slope of table surface(°) |
2.5~4.5 | 1.5~3.5 | 1~2 | 1~1.15 |
| Power /Kw | 1.1 | 1.1 | 1.1 | 1.1 |
| Dimensions /mm | 5446×1825×1212 | 5446×1825×1227 | 5446×1825×1203 | 5446×2338×1203 |
| Total weight/Kg | 1015 | 1030 | 1065 | 1065 |

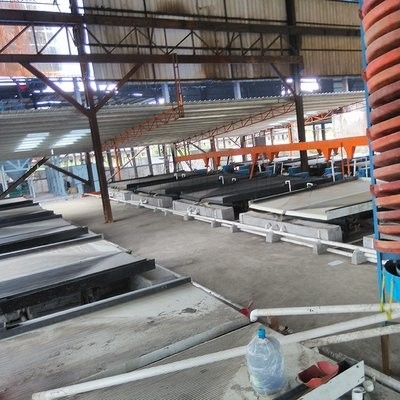

Ore Dressing Equipment Gold Mining Shaker Table For Sale Mineral Separator

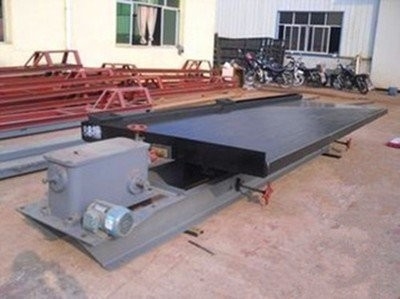

Ore Dressing Equipment Gold Mining Shaker Table For Sale Mineral Separator
Ore Dressing Equipment Gold Mining Shaker Table For Sale Mineral Separator
After-sales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands. Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time. LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
