Product Details:
Payment & Shipping Terms:
|
| Product: | ZSM Series Vibrating Screen | Application: | Coal, Metallurgy, Mineral Processing, Electric Power |
|---|---|---|---|
| Model: | Vibrating Screen | Capacity: | 60-100 T/h |
| Working Area: | 7.5㎡ | Feed Size: | ≤300mm |
| Type: | Ore Dressing Equipment | Warranty: | 12 Months |
| High Light: | ZSM Series Mining Vibrating Screen,Mining Vibrating Screen 100t/H,ZSM Series Ore Dressing Equipment |
||
ZSM Series Mining Circular Vibrating Screen Of Ore Dressing Equipment
1. ZSM series vibrating screen of ore dressing equipment product description:
USES:
This series is suitable for coal, metallurgy, mineral processing, electric power, light industry, sugar making, dewatering, mediating, desliming and classification of dry and wet materials, with the advantages of large processing capacity and high screening efficiency.
2. Product parameters of ore dressing equipment
ZSM series vibrating screen technical performance:
| SPEC | Unit | Model | |||||||
| zsm1556A | 2zsm1556A | zsm1756A | zsm1756B | 2zsm1756A | zsm2065A | 2zsm2065A | |||
|
Screen box specifications |
W | mm | 1500 | 1750 | 2000 | ||||
| L | mm | 5600 | 5600 | 6500 | |||||
| Capacity | t／h | ～60 | 50～80 | 70～100 | |||||
| Feeding size | mm | ～300 | ～300 | ～300 | |||||
| Working area | m2 | 7.5 | 7.5 | 7.5 | |||||
| Screen surface numbers | layer | 1 | 2 | 1 | 2 | 1 | 2 | ||
|
Screen surface species |
Upper layer | mm | Slot screen plate | Perforated screen plate | Slot screen plate | Perforated screen plate | Slot screen plate | Perforated screen plate | |
|
Lower layer |
mm | Slot screen plate | Slot screen plate | Slot screen plate | |||||
| Hole size | Upper layer | mm | 0.25,0.5,8,1.6,10,13 | 13,25,50 | 0.25,0.5,8,1.6,10,13 | 13,25,50 | 0.25,0.5,8,1.6,10,13 | 13,25,50 | |
|
Lower layer |
mm/rpm | 0.25～13 | 0.25～13 | 0.25～13 | |||||
| Vibration frequency | 800 | 800 | 800 | ||||||
| Double amplitude | mm | 11 | 10 | 9 | |||||
| Mass ejection angle | ° | 45 | 45 | 45 | 45±5 | 45 | 45 | 45 | |
| Screen surface inclination | ° | —2～ 10 | —2～ 10 | —2～ 10 | |||||
| Motor | Type | Y160L-4 | Y160L-4 | Y160L-4 | Y160M-4 | Y160L-4 | Y180M-4 | Y180M-4 | |
| Number of speed | rpm | 1460 | 1460 | 1460 | 1460 | 1460 | 1470 | 1470 | |
| Power | kw | 15 | 15 | 15 | 11×2 | 15 | 18.5 | 18.5 | |
| Dimension | L | mm | 5850 | 5850 | 5850 | 5850 | 5850 | 6750 | 6750 |
| W | mm | 2675 | 2527 | 2935 | 3104 | 2777 | 3208 | 3148 | |
| H | mm | 1707 | 2023 | 1703 | 1703 | 2015 | 1885 | 2185 | |
| Total weight | kg | 4644 | 5651 | 5117 | 5266 | 6100 | 6577 | 7946 | |
| Working dynamic load (single support) | kg | ±140 | ±140 | ±140 | ±140 | ±140 | ±203 | ±203 | |
| Maximum dynamic load (single support) | kg | ±980 | ±980 | ±980 | ±980 | ±980 | ±1421 | ±1421 | |

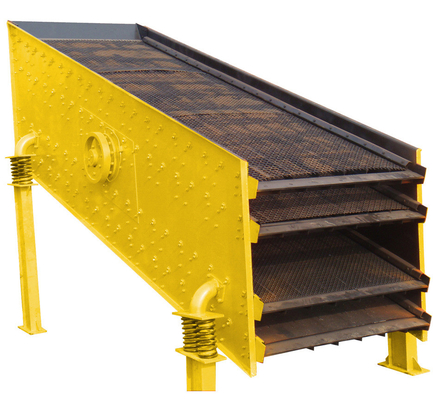

ZSM Series Mining Circular Vibrating Screen Of Ore Dressing Equipment

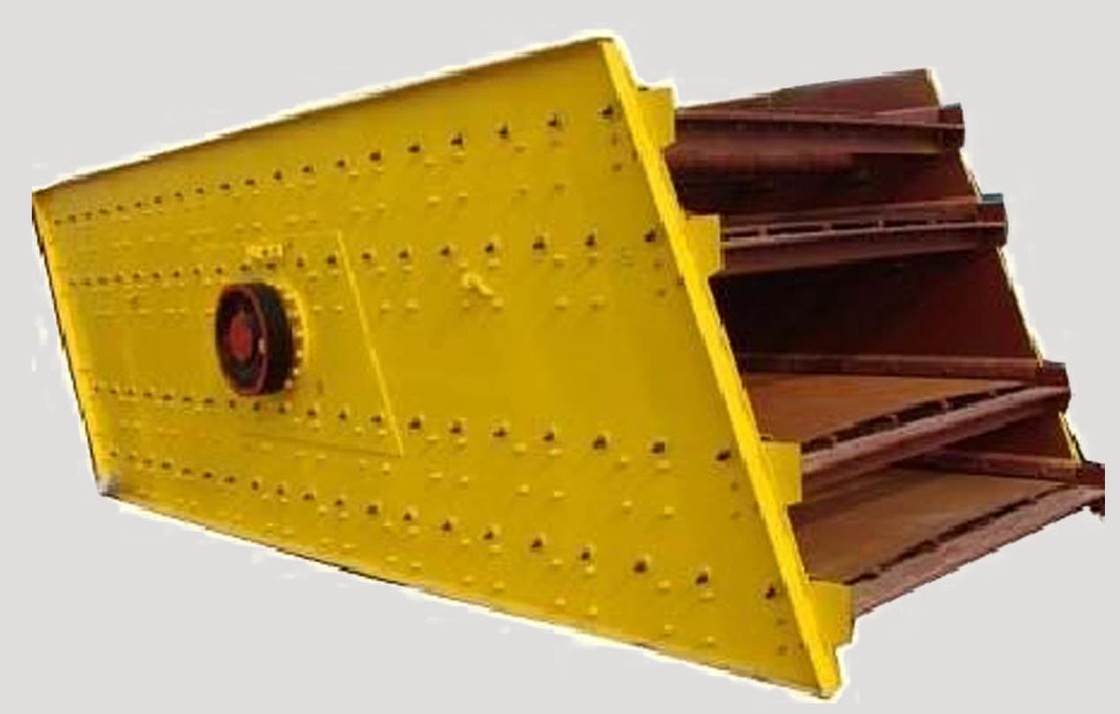

ZSM Series Mining Circular Vibrating Screen Of Ore Dressing Equipment
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
