Product Details:
Payment & Shipping Terms:
|
| Product: | 4-35 Small Brick Making Machine | Raw Materials: | Slag, Sand, Gravel, Aluminum Red Slag, Etc. |
|---|---|---|---|
| Brick Size: | 390*190*190mm | Weight（t）: | 1.2 T |
| Conveyor Power: | 3kw | Blender Model: | Jq-400 |
| Capacity: | 360 Pieces/h | Classification: | Metallurgy Machine |
| High Light: | Red Slag Small Brick Machine,Brick making machine For Gravel,360 pieces/h Small Brick Machine |
||

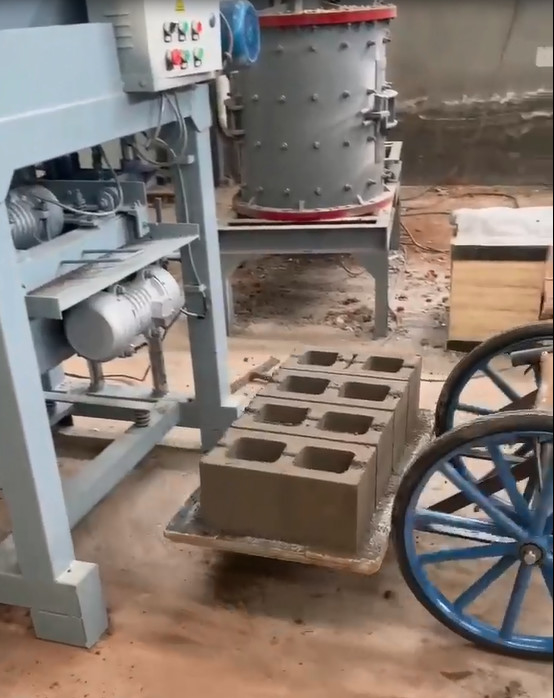

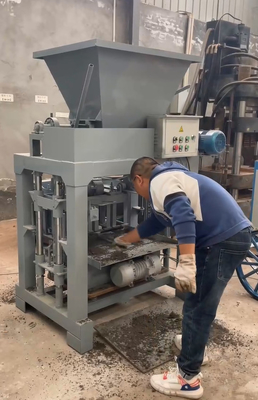

Suitable For Slag, Sand, Gravel, Aluminum Red Slag Small Brick Machine
1. Product introduction of 4-35 Small brick machine
4-35 Brick making machine is a small brick making machine equipment, its unique structure, the use of control system. In addition to the frame itself, the suspension and connection parts of the whole machine are using springs. Vibration molding not only to achieve the indenter, mold box, mold core and support plate vibration under the four tubes, to ensure the product of high compactness and uniformity, and stable operation, low noise, to achieve good vibration reduction effect. All kinds of size brick type can be done, can replace the mold.
Brick making machine raw materials: slag, sand, gravel, aluminum red slag, electrolytic copper slag, coal gangue, construction waste, fly ash, cinder and other raw materials. Rich raw materials, can be seen everywhere, investment plant, extremely convenient.
Production process of brick making machine: Raw materials (40% stone powder, 40% sand, 10% cement, 10%-15% moisture) are evenly mixed by the mixer, transported to the hopper of the main engine by conveyor belt, dropped to the mold of the main engine by the blanking wrench switch, and then formed by the control cabinet. After forming, the finished products are transported to the drying site by the supporting fork brick car.
2. Table of theoretical capacity of 4-35 Small brick machine
|
Model |
Name |
Block specification |
Plate/piece |
piece/h |
|
4-35 |
Block brick |
390*190*190 |
4 |
360 pieces |
|
Standard brick |
240*115*53 |
21 |
1800 pieces |
3. Configuration list of 4-35 Small brick machine
|
Name |
Model |
QTY |
Power (kw) |
|
Main machine |
4-35 |
1 set |
4.8KW |
|
Conveyor |
6000*500 |
1 piece |
3KW |
|
Blender |
Jq-400 |
1 piece |
5.5KW |
4. Dimensions of 4-35 small brick making machine
|
No. |
Name |
Dimensions(m) |
|
1 |
Main machine |
1.37*1.46*1.9 |
|
2 |
Conveyor |
3.3*0.8*0.7 |
|
3 |
Blender |
1.22*1.22*1.27 |
|
Weight |
1.2T |
|
After-sales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands. Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time. LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
