Product Details:
Payment & Shipping Terms:
|
| Product: | Thrust Cylindrical Roller Bearing | Rollng Elements: | Cylindrical Roller |
|---|---|---|---|
| Inside Diameter（mm）: | 20 ~ 1,200 Mm | Classification: | Slewing Ring Bearing |
| Outer Diameter(mm): | 50-10000mm | Axial Dynamic Load Capacity(N): | 1,000 ~ 3,000,000 N |
| Axial Static Load Capacity(N): | 2,000 ~ 6,000,000 N | Port: | QingDao,ShangHai,TianJin |
| High Light: | Long Life Thrust Cylindrical Roller Bearing,20mm Thrust Cylindrical Roller Bearing,Long Life Slewing Ring Bearing |
||
Long Life Slewing Ring Bearing And Thrust Cylindrical Roller Bearing
1. Introduction of thrust bearing
Thrust cylindrical roller bearing and thrust tapered roller bearing are rolling bearings used to withstand axial loads and are widely used in mechanical engineering fields.
2. Introduction of thrust cylindrical roller bearings
Thrust cylindrical roller bearing is a kind of rolling bearing used to bear axial load. It consists of an inner and outer cylinder, a roller and a cage, wherein the rollers are cylindrical, they are arranged along the axis, and roll on the inner and outer cylinders. It can withstand large axial loads, and has high stiffness and load capacity.
3. Thrust cylindrical roller bearing characteristics
The main characteristics of thrust cylindrical roller bearings are that they can bear large axial loads, and have high stiffness and load capacity. Compared with other types of thrust bearings, the axial size of thrust cylindrical roller bearings is smaller, so it is more convenient in terms of installation and maintenance. In addition, the thrust cylindrical roller bearing also has higher rotation accuracy and lower friction loss.
4. Thrust cylindrical roller bearing application
Thrust cylindrical roller bearings are widely used in various industrial machinery and equipment, such as steel, mining, lifting, power, water pumps and ships. They play an important role in large mechanical equipment, such as generators, hydraulic machines, wind turbines, ship propellers and so on.
5. Parameter table of thrust cylindrical roller bearing and thrust tapered roller bearing:
(1) Parameter table 1
| Parameter | Thrust cylindrical roller bearing | Thrust tapered roller bearing |
| Rolling element shape | Cylindrical | Conical |
| Inside and outside circular shape | Cylindrical surface | Conical surface |
| Bear axial load | √ | √ |
| Bear radial load | × | √ |
| The cone Angle is adjustable | × | √ |
| The axial size is small | √ | × |
| Scope of application | Heavy machine tools, metallurgical equipment, mining machinery, etc | Steel, mining, lifting, electricity, water pumps and ships |
(2) Parameter table 2
| Parameter | Description |
| Axial dynamic load capacity | 1,000 ~ 3,000,000 N |
| Axial static load capacity | 2,000 ~ 6,000,000 N |
| Maximum speed | 500 ~ 2,000 rpm |
| Maximum temperature | 200 ~ 300 ℃ |
| Precision class | P0, P6, P5, P4 |
| Size range | Inside diameter 20 ~ 1,200 mm,Outside diameter 40 ~ 1,500 mm |

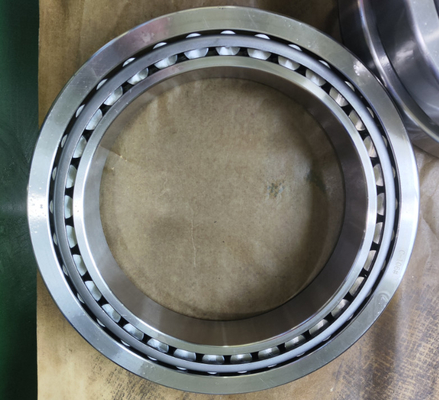

Slewing Ring Bearing And Thrust Cylindrical Roller Bearing

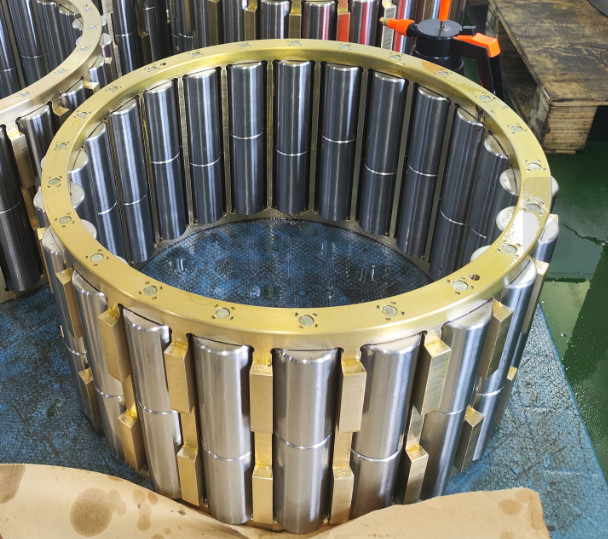

Slewing Ring Bearing And Thrust Cylindrical Roller Bearing

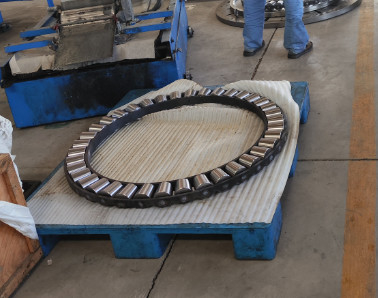

Slewing Ring Bearing And Thrust Cylindrical Roller Bearing For Mining
