| Product Name: | Thrust Tapered Roller Bearing | Rollng Elements: | Conical |
|---|---|---|---|
| Size Range Mm: | Inside Diameter 20 ~ 1,200 Mm，Outside Diameter 40 ~ 1,500 Mm | Classification: | Slewing Ring Bearing |
| Precision Class: | P0, P6, P5, P4 | Maximum Temperature: | 200 ~ 300 ℃ |
| Maximum Speed: | 500 ~ 2,000 Rpm | Port: | QingDao,ShangHai,TianJin |
| High Light: | double direction tapered thrust bearings,P0 tapered thrust bearings,P0 thrust tapered roller bearing |
||
High Quality Precision Thrust Tapered Roller Bearing Slewing Ring Bearing
1. Introduction of thrust bearing
Thrust cylindrical roller bearing and thrust tapered roller bearing (Thrust tapered roller bearing) are rolling bearings used to withstand axial loads and are widely used in mechanical engineering fields.
2. Introduction of thrust tapered roller bearings

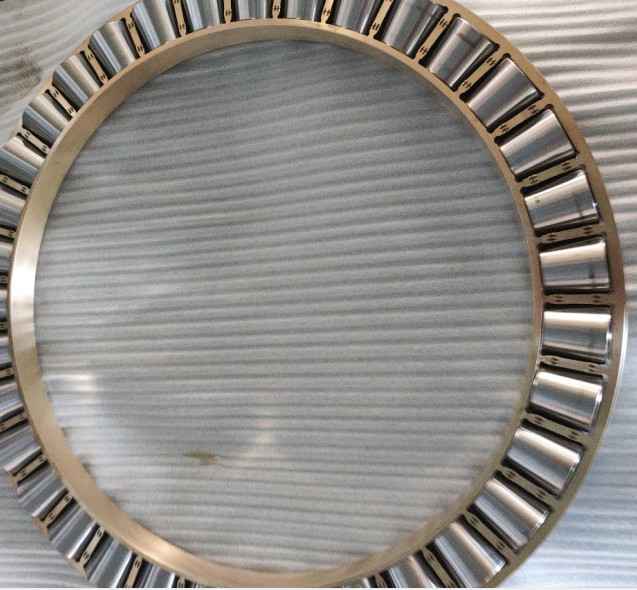

Thrust tapered roller bearing is a kind of rolling bearing used to bear axial load. It consists of an inner and outer conical surface, a roller and a cage, wherein the roller is conical, they are arranged along the axis, and roll on the inner and outer conical surface.
Double Direction Thrust Tapered Roller Bearing Metal Mill Bearing Slewing Ring Bearing
3. Parameter table of thrust cylindrical roller bearing and thrust tapered roller bearing:
Parameter table 1
| Parameter | Thrust cylindrical roller bearing | Thrust tapered roller bearing |
| Rolling element shape | Cylindrical | Conical |
| Inside and outside circular shape | Cylindrical surface | Conical surface |
| Bear axial load | √ | √ |
| Bear radial load | × | √ |
| The cone Angle is adjustable | × | √ |
| The axial size is small | √ | × |
| Scope of application | Heavy machine tools, metallurgical equipment, mining machinery, etc | Steel, mining, lifting, electricity, water pumps and ships |
Double Direction Thrust Tapered Roller Bearing Metal Mill Bearing Slewing Ring Bearing
Parameter table 2
| Parameter | Description |
| Axial dynamic load capacity | 1,000 ~ 3,000,000 N |
| Axial static load capacity | 2,000 ~ 6,000,000 N |
| Maximum speed | 500 ~ 2,000 rpm |
| Maximum temperature | 200 ~ 300 ℃ |
| Precision class | P0, P6, P5, P4 |
| Size range | Inside diameter 20 ~ 1,200 mm,Outside diameter 40 ~ 1,500 mm |
Double Direction Thrust Tapered Roller Bearing Metal Mill Bearing Slewing Ring Bearing
