| Name: | Thrust Tapered Roller Bearing | Rollng Elements: | Conical |
|---|---|---|---|
| Size Range: | Inside Diameter 20 ~ 1,200 Mm，Outside Diameter 40 ~ 1,500 Mm | Classification: | Slewing Ring Bearing |
| Inside And Outside Circular Shape: | Conical Surface | Scope Of Application: | Steel, Mining, Lifting, Electricity, Water Pumps And Ships |
| Axial Dynamic Load Capacity: | 1,000 ~ 3,000,000 N | Port: | QingDao,ShangHai,TianJin |
| High Light: | Conical thrust tapered roller bearing,1200mm thrust tapered roller bearing,20mm tapered thrust bearings |
||

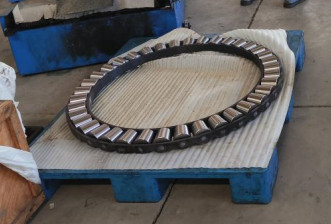

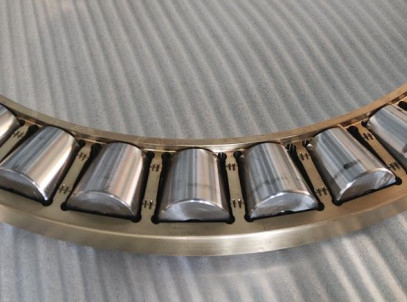

Thrust Tapered Roller Bearing With Inside Diameter 20 ~ 1200 MM
1. Introduction of thrust tapered roller bearings
Thrust tapered roller bearing is a kind of rolling bearing used to bear axial load. It consists of an inner and outer conical surface, a roller and a cage, wherein the roller is conical, they are arranged along the axis, and roll on the inner and outer conical surface.
2. Thrust tapered roller bearing application
The main characteristics of thrust tapered roller bearings are that they can bear large axial loads, and have high stiffness and load capacity. The cone Angle of the inner and outer tapered surfaces of the thrust tapered roller bearing can be adjusted, so that the radial clearance of the bearing can be adjusted to adapt to different working conditions.
Thrust tapered roller bearings are widely used in various industrial machinery and equipment, such as steel, mining, lifting, power, water pumps and ships. They play an important role in large mechanical equipment, such as generators, hydraulic machines, wind turbines, ship propellers and so on.
Thrust Tapered Roller Bearing With Inside Diameter 20 ~ 1200 MM Slewing Ring Bearing
3. Parameter table of thrust cylindrical roller bearing and thrust tapered roller bearing:
Parameter table 1
| Parameter | Thrust cylindrical roller bearing | Thrust tapered roller bearing |
| Rolling element shape | Cylindrical | Conical |
| Inside and outside circular shape | Cylindrical surface | Conical surface |
| Bear axial load | √ | √ |
| Bear radial load | × | √ |
| The cone Angle is adjustable | × | √ |
| The axial size is small | √ | × |
| Scope of application | Heavy machine tools, metallurgical equipment, mining machinery, etc | Steel, mining, lifting, electricity, water pumps and ships |
Parameter table 2
| Parameter | Description |
| Axial dynamic load capacity | 1,000 ~ 3,000,000 N |
| Axial static load capacity | 2,000 ~ 6,000,000 N |
| Maximum speed | 500 ~ 2,000 rpm |
| Maximum temperature | 200 ~ 300 ℃ |
| Precision class | P0, P6, P5, P4 |
| Size range | Inside diameter 20 ~ 1,200 mm,Outside diameter 40 ~ 1,500 mm |
Thrust Tapered Roller Bearing With Inside Diameter 20 ~ 1200 MM Slewing Ring Bearing
Thrust Tapered Roller Bearing With Inside Diameter 20 ~ 1200 MM Slewing Ring Bearing
