Product Details:
Payment & Shipping Terms:
|
| Model: | Thrust Tapered Roller Bearing | Rolling Element Shape: | Conical |
|---|---|---|---|
| Type: | Slewing Ring Bearing | The Cone Angle Is Adjustable: | Yes |
| Maximum Temperature: | 200 ~ 300 ℃ | Bear Axial Load: | Yes |
| Maximum Speed: | 500 ~ 2,000 Rpm | Port: | QingDao,ShangHai,TianJin |
| High Light: | high performance slewing bearing,axial loads slewing bearing |
||
High-Performance Slewing Ring Bearing With Tapered Roller Bearing For Axial Loads
1.Introduction of thrust tapered roller bearings
Thrust tapered roller bearing is a kind of rolling bearing used to bear axial load. It consists of an inner and outer conical surface, a roller and a cage, wherein the roller is conical, they are arranged along the axis, and roll on the inner and outer conical surface.
2. Advantages of thrust tapered roller bearing
Compared with thrust cylindrical roller bearings, the advantages of thrust tapered roller bearings are that they can bear larger axial loads and can adjust the radial clearance to adapt to different working conditions. However, the disadvantage of thrust tapered roller bearings is that higher installation accuracy is required, and the radial clearance of the internal and external tapered surfaces needs to be adjusted during installation and use to ensure their normal operation.

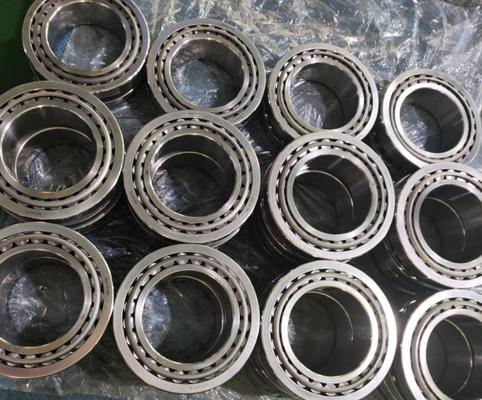

High-Performance Slewing Ring Bearing With Tapered Roller Bearing For Axial Loads

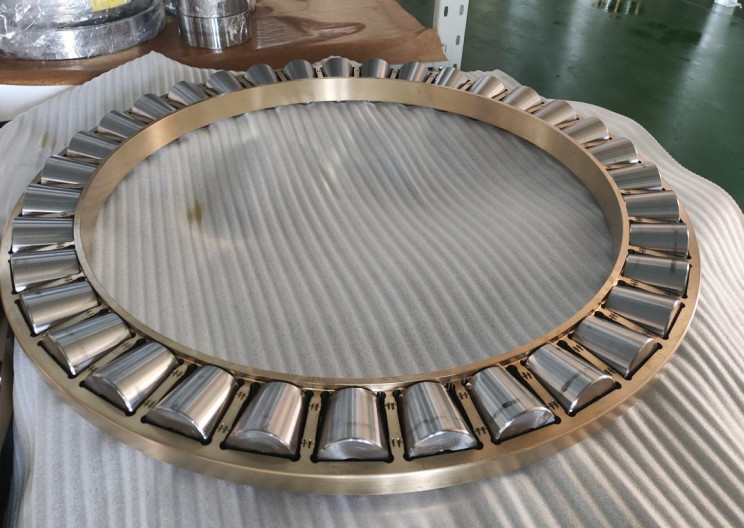

High Quality Precision Thrust Tapered Roller Bearing Slewing Ring Bearing
5. Parameter table of thrust cylindrical roller bearing and thrust tapered roller bearing:
Parameter table 1
| Parameter | Thrust cylindrical roller bearing | Thrust tapered roller bearing |
| Rolling element shape | Cylindrical | Conical |
| Inside and outside circular shape | Cylindrical surface | Conical surface |
| Bear axial load | √ | √ |
| Bear radial load | × | √ |
| The cone Angle is adjustable | × | √ |
| The axial size is small | √ | × |
| Scope of application | Heavy machine tools, metallurgical equipment, mining machinery, etc | Steel, mining, lifting, electricity, water pumps and ships |
Parameter table 2
| Parameter | Description |
| Axial dynamic load capacity | 1,000 ~ 3,000,000 N |
| Axial static load capacity | 2,000 ~ 6,000,000 N |
| Maximum speed | 500 ~ 2,000 rpm |
| Maximum temperature | 200 ~ 300 ℃ |
| Precision class | P0, P6, P5, P4 |
| Size range | Inside diameter 20 ~ 1,200 mm,Outside diameter 40 ~ 1,500 mm |
High-Performance Slewing Ring Bearing With Tapered Roller Bearing For Axial Loads
High-Performance Slewing Ring Bearing With Tapered Roller Bearing For Axial Loads
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
