Product Details:
Payment & Shipping Terms:
|
| Model Number: | 600 | Air-frame Material: | Q235 Steel |
|---|---|---|---|
| Overall Dimensions: | 2600*1200*1600 (mm) | Usage: | Rubber Tire Waste Plastic Bottles Metal Scrap |
| Speed: | 11rpm | Required Power (kw): | 15*2 Kw |
| Cutter Material: | 9crsi | Classification: | Metallurgy Machine |
| High Light: | rubber waste tire shredder,11rpm metal scrap shredder,11rpm waste tire shredder |
||

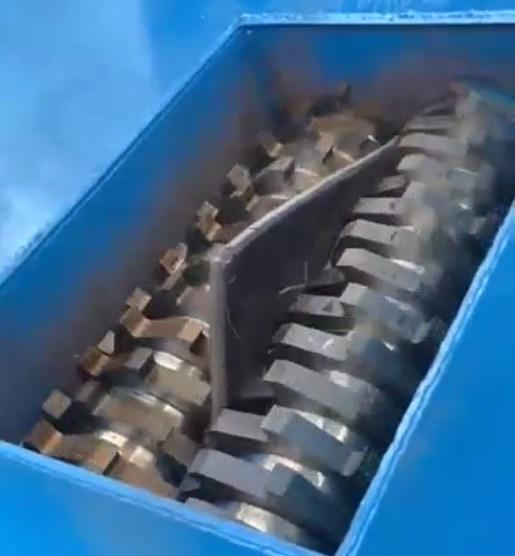

Metallurgy Machine Rubber Tire Waste Plastic Bottles Metal Scrap Shredder Machine
1. Metallurgy Machine Shredder introduction
Shredder is a kind of machine used for coarse crushing, generally used for processing raw materials or scraps, recycling industry, to make its size smaller. Compared with other crushers, the tool shaft has low speed, low noise and low energy consumption.
2. Metallurgy Machine Shredder use
Shredder is a machine used for fine crushing, generally used for processing raw materials or scraps, to make its size smaller. A typical example is the shredding of plastic or rubber scraps as raw materials to melt and then granulated, used to recreate plastic bottles, tires or trash cans, etc. Shredder used in plastic recycling industry, often used for waste large diameter PE plastic pipe, bale packaging plastic film, large piles of plastic sheets and machine head material crushing.

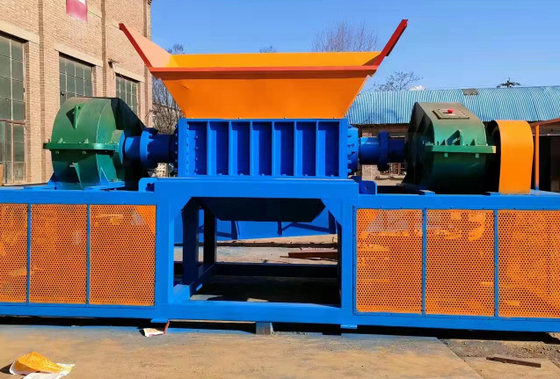

Metallurgy Machine Rubber Tire Waste Plastic Bottles Metal Scrap Shredder Machine
3. A detailed list of attachments required for Model 600 shredder
| Subject form | Model number | 600 |
| Air-frame | It is easy to disassemble and assemble with split type and welded with Q235 steel plate | |
| Overall dimensions (mm) | 2600*1200*1600 (length, width and height including hopper) | |
| Speed (r/min) | 11 RPM | |
| Required power (kw) | 15kw*2 sets of national standard copper wire (Kaifeng Wanli) | |
| Reduction type number | ZQ400*2 (Zibo Huiyi) | |
| Reducer speed ratio | 48.57 | |
| Rack | Square steel structure | |
| Cutter head | Quantity (pieces) | 75 |
| Cutter material | 9crsi | |
| Cutter diameter | 220mm | |
| Cutter thickness | 0.8mm | |
| Knife cut | Small hook Angle external triangular multi-dense tooth shape, the inner hole is hexagonal | |
| Supporting manufacturer | Ma On Shan | |
| Shaft | Form | Octagonal axis |
| Shaft diameter (mm) | 120 | |
| Shaft length (mm) | 1000 | |
| Spacer sleeve | Material | 9crsi |
| Quantity (PCS) | 75 | |
| Bearing | - | Harbin (aligning roller bearing) |
| connect | Host connection mode | Chain coupling |
| Control cabinet | Start protection | Automatic reversal when current is overloaded |
Remarks:
1. According to the data provided by the user and relevant requirements, according to the site design layout, to optimize the process and minimize the crushing cost.
2. Technical guidance installation, free technical training for user operators.
3. Provide basic drawings, installation instructions, and precautions for operation and maintenance.
4. The warranty period is one year, and the supplier of the equipment has quality problems during the warranty period for free maintenance of the user. If there is a problem outside the warranty period, the supplier will pay the cost to the user for maintenance.
Parts quality assurance:
1. Universal parts and standard parts shall be implemented according to national standards.
2. Non-standard parts shall be executed in accordance with the contract.
Metallurgy Machine Rubber Tire Waste Plastic Bottles Metal Scrap Shredder Machine
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
