Product Details:
Payment & Shipping Terms:
|
| Name: | Crane Wheel、crown Sheave、sky Wheel | Material: | 45# Steel，42CrMo Alloy Steel，34CrNiMo6 Alloy Steel，30CrNiMo8 Alloy Steel |
|---|---|---|---|
| Size: | Customizable | Feature: | High-strength Metal Materials |
| Type: | Castings And Forgings | Used In: | Crane |
| Warranty: | 12 Months | Classification: | Castings And Forgings |
| High Light: | crane parts sky wheels,t shape crane parts |
||

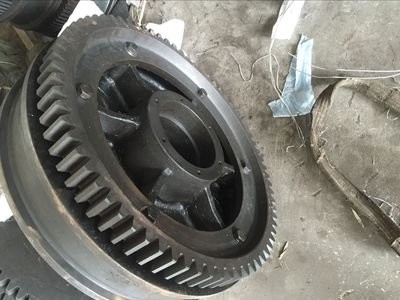

Customizable Crane Wheel Castings And Forgings
1. The crane wheel usually refers to the key component used in the crane (crane), which is mainly used for lifting, suspending and moving heavy objects. The crane wheels are usually made of high-strength metal materials, such as alloy steel or carbon steel.
2. The following is a brief description of the manufacturing process of crown wheel castings and forgings:
Casting manufacturing process:
1) Mold preparation: According to the design requirements of the crane wheel, a mold suitable for casting is produced, usually using a sand mold or a metal mold.
2) Melting metal: Select appropriate metal material and heat it to the melting point to form liquid metal.
3) Pouring: Pour the molten metal into the prepared mold so that it fills the entire mold cavity.
4) Cooling and solidification: After the metal cools in the mold, it gradually solidifies into a solid state and forms the initial shape of the crane wheel.
5) Mold removal and finishing: Remove the solidified casting from the mold and perform trimming and sand removal to remove excess material and surface defects.
6) Heat treatment: Heat treatment is performed on castings to adjust the structure and performance and improve strength and wear resistance.
7) Mechanical processing: Necessary mechanical processing is performed on the castings, such as turning, milling, drilling, etc., to achieve the required size and accuracy.
Customizable Crane Wheel Castings And Forgings
3. Table of steel grades and applicability of commonly used materials for crane wheels:
| Material | Applicability |
| 45# Steel(GB 45,ASTM/AISI 1045) | Suitable for medium load and general working conditions of sky wheel forgings |
| 42CrMo Alloy steel(GB 42CrMo,ASTM/AISI 4140) | Suitable for high load and harsh working conditions of sky wheel forgings |
| 34CrNiMo6 Alloy steel(EN 34CrNiMo6,ASTM/AISI 4340) | Suitable for sky wheel forgings requiring higher strength and wear resistance |
| 30CrNiMo8 Alloy steel(EN 30CrNiMo8) | Suitable for high load and high toughness of sky wheel forgings |
Customizable Crane Wheel Castings And Forgings
Customizable Crane Wheel Castings And Forgings
After-sales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands. Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time. LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
