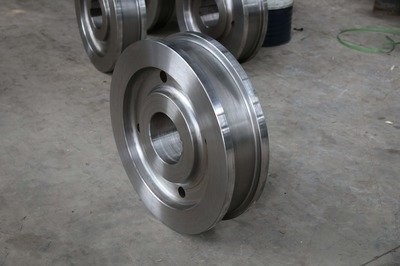

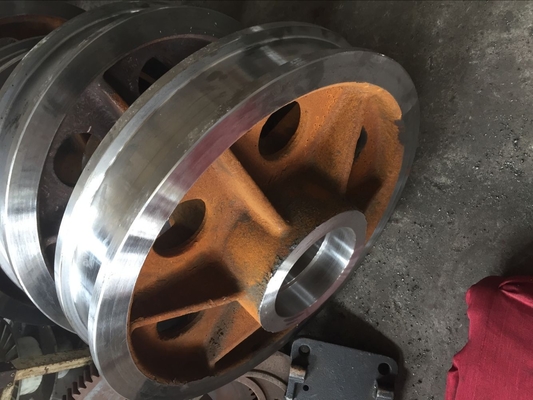

Crane Wheel Castings And Forgings Single Or Double Flanged Or No Flanged

Crane Parts Single Or Double Flanged Or No Flanged Cast And Forging Crane Wheel

1. The crane wheel usually refers to the key component used in the crane (crane), which is mainly used for lifting, suspending and moving heavy objects. The crane wheels are usually made of high-strength metal materials, such as alloy steel or carbon steel.

2. The manufacturing process of the crane wheel can be carried out by casting or forging process.

The following is a brief description of the manufacturing process of crown wheel forgings:

 Forging manufacturing process:

1) Material preparation: Select appropriate metal materials, usually alloy steel or stainless steel.

2) Heating: Heating the metal material to the appropriate temperature to make it plastic.

3) Forging: Using pressure equipment (such as hammering or press), the heated metal material is placed in the mold, and pressure is applied to deform it to form the preliminary shape of the crown wheel.

4) Heat treatment: Heat treatment is performed on forgings to adjust the structure and performance and improve strength and wear resistance.

5) Mechanical processing: Necessary mechanical processing is performed on the forgings, such as turning, milling, drilling, etc., to achieve the required size and accuracy.

6) Surface treatment: As needed, perform surface treatment on the forgings, such as spraying anti-rust coating or surface polishing.

Customizable Crane Wheel Castings And Forgings

3. Table of steel grades and applicability of commonly used materials for crane wheels:

Customizable Crane Wheel Castings And Forgings

Customizable Crane Wheel Castings And Forgings
