Quartz Dolomite Mobile Impact 550TPH Stone Crusher Machine

China Luoyang Zhongtai Industrial Co., Ltd. certification
China Luoyang Zhongtai Industrial Co., Ltd. certification
I'm Online Chat Now

Quartz Dolomite Mobile Impact 550TPH Stone Crusher Machine

Quartz Dolomite Mobile Impact 550TPH Stone Crusher Machine
Quartz Dolomite Mobile Impact 550TPH Stone Crusher Machine Quartz Dolomite Mobile Impact 550TPH Stone Crusher Machine

Large Image :  Quartz Dolomite Mobile Impact 550TPH Stone Crusher Machine

Product Details:
Place of Origin: Henan, China
Brand Name: CITICIC
Certification: ISO9001:2008
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: $5,000.00 - $100,000.00 / Piece
Packaging Details: simple package for CITICIC 30-550TPH PFQ Series Vortex Strong Impact Crusher
Supply Ability: 2000 Piece/Pieces per Year
Detailed Product Description
Type: Impact Crusher Name: 30-550TPH Series Impact Crusher
Condition: New Application: Mining;Constrcution
Motor Type: AC Motor Capacity(t/h): 30-550
Weight: 56t Warranty: 12 Months
Max Feeding Size: 770mm Port: Qingdao, Shanghai
High Light:

550TPH Stone Crusher Machine

,

770mm Stone Crusher Machine

,

550TPH impact stone crusher

Medium-Sized Quartz Dolomite Mobile Stone Crusher Impact Crusher

Product Description

1.Impact crusher brief introduction:

Imapct crusher is the newest generation product designed by our company after absorbing the advanced technology in the domestic and foreign, according on concrete industry and mining condition of domestic sand and crushed stone profession industry. It uses the newest technique of manufacture, the unique structural design, the processing end product is to be cube, unstressing and unstretching, quite good grain shape, it can stave every kinds of thick, thin materail (granite, limestone, concrete and so on) which the feed granularity is not to surpass 500mm, the compressive strength stave does not surpass 350Mpa.



2.Impact crusher application :

Impact crusher can crush large, medium or small size hard materials( granite, limestone, concrete, ect. This machine is widly used in mining, highway and railroad, construction stuff and other relative industries.



3.Impact crusher characteristics:

Hammer is made of high chrome; liner board is made of wearable materials;
Specially designed tooth impact plate;
More suitable for crushing hard rock, high efficiency, low consumption;
Final products is cubic, discharge opening is adjustable;
Make the crushing flow chart simple.

ustry, building and so on .pecification is diversificate.



4.Impact crusher principle:
When the small impact crusher works, the motor drives the rotor rotate of the impact crusher with high speed, on the rotor where installed the hammers. When the materials get into the area which the hammers effect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being recrushed. The materials from large to small all to be crushed at the impact chamber repeatedly. The process won’t stop till the material are crushed to the required size and then discharged from outlet of the small impact crusher



5.Impact crusher specification and technical parameter:

Model



Rotor Spec(mm)

Feed Opening Size

(mm)

Max Feed Size

(mm)

Capacity(t/h)

Motor Power

(kW)



Dimension

(mm)

Weight(t)
PF-0807 850×700 400×730 300 15-30 30-45 2210×1490×2670 8.1
PF-1007 1000×700 400×730 300 30-50 37-55 2400×1558×2660 9.5
PF-1010 1000×1050 400×1080 350 50-80 55-75 2400×2250×2620 12.2
PF-1210 1250×1050 400×1080 350 70-120 110-132 2690×2338×2890 14.9
PF-1214 1250×1400 400×1430 350 130-180 132-160 2690×2688×2890 18.6
PF-1310 1300×1050 490×1170 400 80-140 110-160 2780×2478×2855 16.2
PF-1315 1320×1500 860×1520 500 160-250 180-260 3096×3273×2667 19.3
PF-1415 1450×1500 1145×1520 950 220-450 220-315 3745×3022×3519 27
PF-1520 1520×2000 830×2050 700 300-550 315-440 3581×3560×3265 36.5

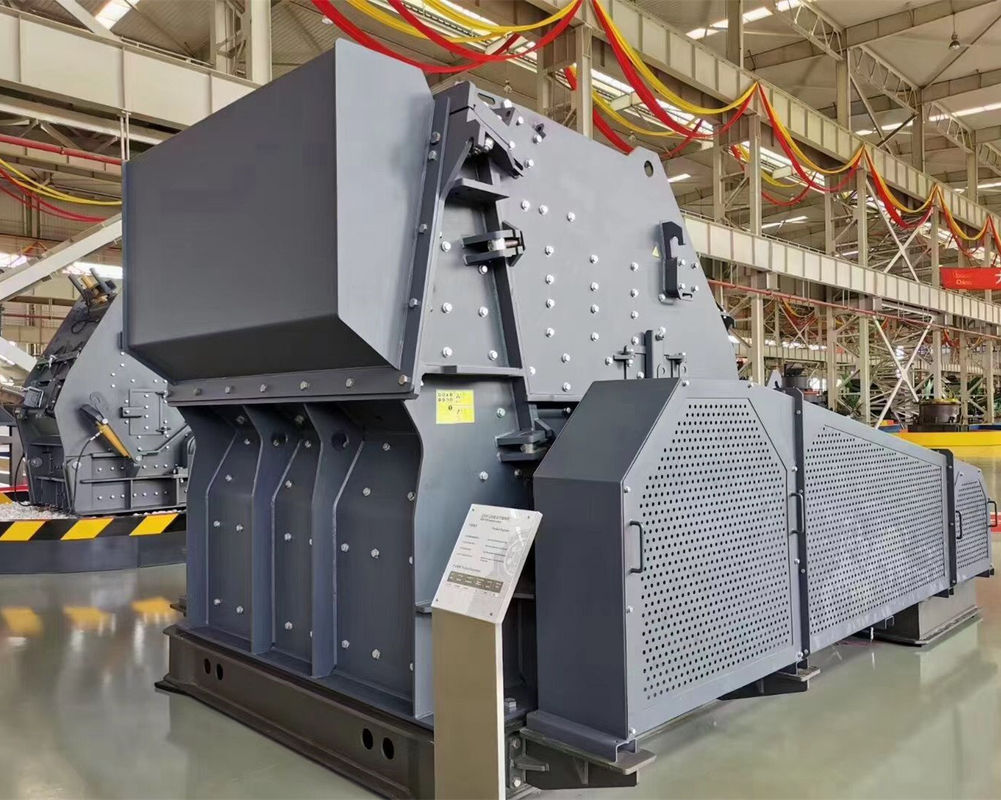

Quartz Dolomite Mobile Impact 550TPH Stone Crusher Machine 0

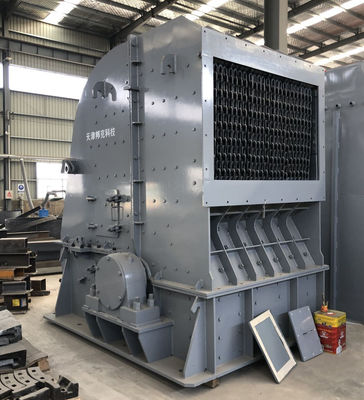

Quartz Dolomite Mobile Impact 550TPH Stone Crusher Machine 1

Our Services

Aftersales service

LUOYANG ZHONGTAI INDUSTRIES able to provide:

1. ENGINEERED SPARES - DESIGN AND MANUFACTURING

2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES

3. HUGE MACHINE SHOP CAPABILITIES

4. TRAINING PROGRAMMES

5. PREVENTATIVE MAINTENANCE PROGRAMS

6. PREVETATIVE MAINTENANCE SERVICES

7. COMPREHENSIVE MAINTENANCE PROGRAMS

LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands.

Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time.

LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.

FAQ

Q: Why we believe in luoyang zhongtai industries co., ltd:

A: 1. More than 30 years experience.

     2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged      parts

     3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.



Q:Delivery time

A: parts lead time 1-2months, machines 2-3months.



Q:Payment terms

A: Accept payment type: T/T, L/C, Western union,Cash.

30% deposit when signed contract. Full payment paid before shipping



Q: Quality warranty?

A: guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.



Q: After sales service?

A: we can supply technical guide for machines running test and parts maintenance if end user needs.
