Product Details:
Payment & Shipping Terms:
|
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Energy & Mining | Condition: | New |
|---|---|---|---|
| Type: | Hammer Crusher | Application: | Compression Strength Is |
| Motor Type: | AC Motor | Capacity(t/h): | 3-260 Tph |
| Dimension(L*W*H): | 5800x3780x2700 Mm | Weight: | 0.9-35.2 |
| Warranty: | 12 Months | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Installation, Commissioning And Training |
| Rotor Length (mm): | 400-1600 | Material Strength: | Less Than 150Mpa |
| Max. Feeding Side Length(mm): | 80-350 | Discharging Particle Size(mm): | ≤25 |
| The Machines Classification: | Crushing Equipment | After Sale Service: | Service |
| Price: | Negotiatable | Installation: | Engineer Guide |
| Motor: | China Famous Brand | Port: | QingDao,ShangHai,TianJin |
| High Light: | 260 Tph Marble Crushing Plant,3 Tph Marble Crushing Plant,260 Tph Heavy Hammer Crusher |
||

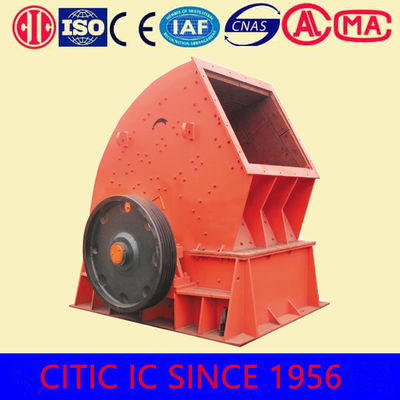

PC Series Hammer Crusher:
1.Secondary and fine crushing
2.3-260 tph
3.Feeding Size:80-350mm,Discharging Size:<25mm
PC Series Hammer Crusher can be used to break the brittle material whose compression strength is less than 150Mpa such as the secondary and fine crushing of limesone,coke and coal etc.but also be used in processing medium hardness material in metallurgy, chemistry industry, e.g. carbon, limestone, and artificial aggregate.
PC Hammer breaker crushes the materials in the way of high speed rotation hammer colliding materials. The main part is the rotor with hammer. Motor brings rotor to rotate at high speed in breaking cavity to impact the materials that enter the breaker from top feeding port, then materials are broken to powdery by high speed operation. There is screen plate on the bottom of rotor, the qualified particle size in crushed materials are discharged trough screen plate. The unfinished granularities that are larger than screen hole are continuously impacted by hammer and discharged through screen plate. The adjustment of discharging particle size is realized by changing the screen plates with different specifications. The clearance between rotor and screen plate can be adjusted by adjustment device according to requirement.
Specification of hammer crusher
| Type | Rotor diameter (mm) |
Rotor length (mm) |
Max. Feeding side length(mm) | Discharging particle size(mm) | Production capacity (t/h) |
Power of motor (KW) | Weight (t) |
Outline dimension(mm) Length× width× Height | ||
| PC-0404 | φ400 | 400 | 80 | ≤15 | 3--5 | 7.5 | 0.9 | 1518 | 1010 | 630 |
| PC-0604 | φ600 | 400 | 100 | ≤15 | 6—10 | 18.5 | 1.5 | 1755 | 1210 | 785 |
| PC-0606 | φ600 | 600 | 100 | ≤15 | 10—18 | 37—45 | 2.5 | 2115 | 1210 | 785 |
| PC-0808 | φ800 | 800 | 160 | ≤15 | 18—30 | 55—75 | 3.5 | 2855 | 1360 | 1040 |
| PC-1010 | φ1000 | 1000 | 200 | ≤20 | 35—55 | 110-132 | 7.6 | 3514 | 1850 | 1400 |
| PC-1012 | φ1000 | 1200 |
200 |
≤20 | 45—65 | 132 | 8.5 | 4055 | 1850 | 1400 |
| PC-1212 | φ1250 | 1200 | 200 | ≤20 | 70--110 | 160-185 | 14.1 |
4475 |
1920 |
1910 |
| PC-1414 | φ1430 | 1400 | 250 | ≤25 | 110--160 |
280 |
25.6 |
5467 | 2465 | 2260 |
| PC-1616 | φ1600 | 1600 | 350 | ≤25 | 180--260 | 500 | 35.2 | 5800 | 3780 | 2700 |
Note:
1. This equipment can control the Max. Value of the discharging particle size with screen plate.
2. When liquid water content is larger than 8%, it is easy to block screen hole to influence the capacity.
Aftersales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands.
Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time.
LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time:
A: parts lead time 1-2months, machines 2-3months.
Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: we can supply technical guide for machines running test and parts maintenance if end user needs.
