Product Details:
Payment & Shipping Terms:
|
| Type: | VSI Sand Crusher | Condition: | New |
|---|---|---|---|
| Application: | Sand Crusher | Motor Type: | AC Motor |
| Power(W): | 110-400kw | Capacity(t/h): | 60-600 Tph |
| Dimension(L*W*H): | 5100x2690x3200 Mm | Weight: | 7.8-25.6 |
| Warranty: | 12 Months | Max Feed Size (mm): | <50 |
| Vibrating Sensor: | Inspect Scope: 0.1-20mm/s Adjusted Continuously | Rotation Speed (r/min): | 1180-1690 |
| Power Source: | 380v 50Hz | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Port: | QingDao,ShangHai,TianJin | ||
| High Light: | vsi stone crusher machine,400kw stone crusher machine,vsi shaft impact crusher |
||

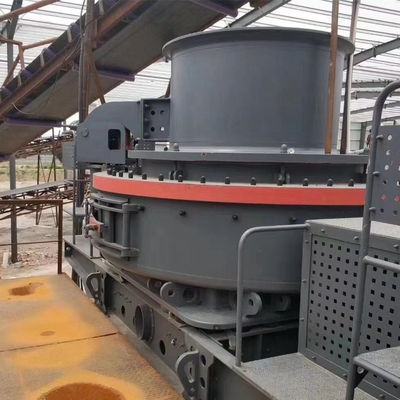

Type: tertiary crusher
Input Size: 0-50mm
Processed Materials:
Iron ore, copper ore, gold and silver ore, zinc ore, manganese ore, limestone,granite,basalt,river stone,coal gangue,quartz
Applications:
Mechanism sand, bituminous concrete, metal mine, aggregates shaping
Supply Ability:200 Sets per Month
Production capacity:12-360t/h
Port:Qingdao,Tianjin, Shanghai or others
Feature:
Structure is simple to install, easy maintenance, low running costs
1. This machine is a new type medium and fine stone crushing machine developed in the 1990s and also the machine type that is widely used to replace cone crusher, double-roll crusher and ball mill in the world.
2. It has novel and unique structure and stable operation.
3. This machine is low in energy consumption, high in output and big in crushing ratio.
4. The equipment is small in size, simple and easy in operation and convenient in installation and maintenance.
5. It has the function of reshaping, and the final products are in the shape of cube and big in stacking density.
6. During the production process, the stone materials can form a protective basement, so that the machine has no abrasion and is durable in use.
7. The few easy-wearing spare parts are made of super-hard wear-resisting materials, so that the machine is small in size, light in weight and convenient in spare part changing.
| Model | VSI7611 | VSI8518 | VSI9526 | VSI1140 | |
| Capacity (t/h) | Center and Ring feeding | 120-180 | 200-260 | 300-380 | 450-520 |
| Center feeding | 60-90 | 100-130 | 150-190 | 225-260 | |
| Max Feed Size (mm) | Soft material | <35 | <40 | <45 | <50 |
| Hard material | <30 | <35 | <40 | <45 | |
| Rotation speed (r/min) | 1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 | |
| Power for double motor (kW) | 110 | 180 | 264 | 400 | |
| Overall Dimension L×W×H (mm) | 4100×2250×2285 | 4140×2280×2425 | 4560×2450×2780 | 5100×2690×3200 | |
| Weight (t) | 7.8 | 10.3 | 16 | 25.6 | |
| Power Source | 380v 50Hz | ||||
| Vibrating Sensor | Inspect scope: 0.1-20mm/s adjusted continuously | ||||
| Lubrication hydraulic pressure station | Power for double oil pump | 2×0.31kW | |||
| Safety | To make sure the supply of the oil with double oil pump; stop working without oil or hydraulic pressure; temperature falls when the water cools; start the motor by heating it in winter. | ||||
| Overall dimension L×W×H(mm) | 820×520×1270 | ||||
| Power for oil box heater | 2 kW | ||||
Note:Any change of technical data shall not be advised additionally.
Working principle
The materials go into the crusher from the feed hopper and are separated into two parts by the distributor. One part goes into the impeller rotating with high speed from the middle of the distributor, and is quickened inside the impeller, and the acceleration can reach hundred times of the acceleration of gravity, and then the materials will cast from the three uniformly distributed runners of the impeller at a speed of 60-70m/s, and impact and crush with the other part of materials which fall from around the distributor and then they will together impact to the material lining inside the vortex cavity. Bounced from the material lining, the materials will impact obliquely upward to the top of the whirling motion chamber which will change their movement direction again, so that materials will move down, and the materials launching from the runners of the impeller will form a continuous material curtain. In this way, the materials will get two times or more hitting, friction, grinding and crushing effect inside the whirling motion crushing chamber. The crushed materials will be discharged from the bottom discharging mouth. This process will form a closed-circuit system together with the cyclic screening system and generally speaking, after three times of cycle, the materials will be crushed below 20Moh.
In the whole crushing process, the materials impact and crush with each other without directly contacting the metal spare parts, and just impact and grind with the material lining to be crushed, thus extending the abrasion time of the machine. The ingenious airflow self cycle inside the whirling motion chamber eliminates powder dust pollution
CITICIC began in 1956-The largest mining equipment and cement equipment manufacturers in China.CITICIC is a global supplier of technology and services to customers in the process industries,including
Mining,Construction,Metallurgical,Environmental,Power,Chemical,Marine,Casting&Forgings.
CITIC IC produces over 200,000 tons of quality equipment annually. Our products include grinding mills, scrubbers,crushers, kilns, coolers, hoists, reducers, steam turbines and compressors. CITIC IC also manufactures heavy castings and forgings, as well as electric/hydraulic control and lubrication systems.
Our factory in Luoyang covers more than 3 million square meters, of which 2 million square meters is under cover. It has a total workforce of approximately 10,000 employees of which more than 1,200 are engineers.
CITIC HIC produces over 200,000 tons of quality equipment annually. Our products include grinding mills, scrubbers,crushers, kilns, coolers, hoists, reducers, steam turbines and compressors. CITIC HIC also manufactures heavy castings and forgings, as well as electric/hydraulic control and lubrication systems Etc.
CITICIC owns a professional testing and metrology institute which provides advanced testing methods such as nondestructive testing, industrial chemical analysis, metallographic testing and analysis, mechanical testing, sample preparation, meter/length measurement, weighing apparatus verification, and weighman inspection. Our metrology institute has taken a leading role in China.
CITICIC owns nearly two hundred types of advanced testing equipment, nine different measurement standards and nearly twenty types of world-class testing equipment which have been imported from international locations such as Germany, Japan, USA, UK and Belgium.
Aftersales service
CITIC Heavy Industries is your business partner in the After Market.
CITICIC able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
CITIC’s Field Service Engineers are trained specifically in the CITIC brand group products but are capable of undertaking the servicing of other OEM brands.
Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time.
CITICIC also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.
