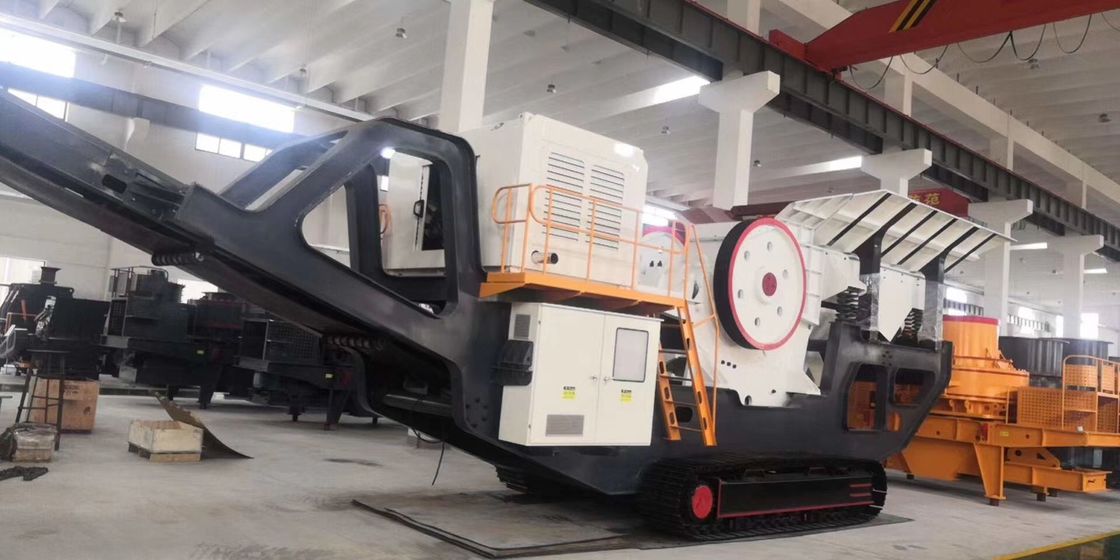

Various Models Impact Jaw 90TPH-650TPH Mobile Crusher Plant

Large Image : Various Models Impact Jaw 90TPH-650TPH Mobile Crusher Plant

Product Details:

Place of Origin:	China
Brand Name:	ZTIC
Certification:	ISO/CE
Model Number:	LKY series

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	Standard shipping packaging
Delivery Time:	30 days
Payment Terms:	L/C, T/T
Supply Ability:	30 sets per month

Contact Now

Detailed Product Description

Product Name:	Mobile Crushing Plant	After Sale Service:	1 Year Warrenty
Usage:	Energy & Mining	Certification:	ISO/CE
Processed Materials:	Stone Ore	Weight(t):	35-85
The Maximum Feeding Size(mm):	500-940	Discharge Opening Size(mm):	65-275
Capacity(t/h):	90-650	Genset(optional)(kw):	180-440
Highlight:	650TPH Jaw Mobile Crusher Plant , 650TPH Impact Mobile Crusher Plant , 90TPH mobile jaw crusher

high performance mobile crusher plant Various models Impact Crusher Jaw Crusher

LKY series mobile crushing plant is a complete mobile crushing and screening plant which consists of raw material bins which located on one or more trailers, vibrating feeders, primary crushers, multi-layer vibrating screens, secondary crushers, fine crushers, mobile belt conveyors, sand washers, electric control systems and etc.; It is applicable to the mobile crushing processes in highway, railway, metallurgy, ore mine, construction and other industries.

Various Models Impact Jaw 90TPH-650TPH Mobile Crusher Plant 0

Mobile Impact Crusher

Technical Data//Model		LCI1214Ⅱ	LCI1315Ⅱ	LCI1318Ⅱ
Transportation size(mm)		1190026503850	1350027804150	1520029504300
Weight(t)		41	52	61
Tire Configuration		Dualaxial	Triaxial	Triaxial
Impact Crusher		PFW-1214Ⅱ	PFW-1315Ⅱ	PFW-1318Ⅱ
The Maximum Feeding Size(mm)		500	600	700
Capacity(t/h)		130~200	180~320	240~400
Vibrating Feeder		GZD960*3800	GZD1100*4200	GZD1300*4900
Main Belt Conveyor		B800*8.5M	B1000*9M	B1200*9.5M
Side Belt Conveyor(optional)		B420*3M	B500*3.5M	B650*4M
Electric control	standard	Control box+control panel	Control box+control panel	Control box+control panel
Electric control	optional	Control box+LCD	Control box+LCD	Control box+LCD
Hydraulic leg	standard	4	4	4
Hydraulic leg	optional	2	2	2
Hydraulic cyclinder	standard	4	4	4
Hydraulic cyclinder	optional	5	5	5
Genset(optional)(kw)		270	380	440
Iron Separator(optional)(kw)		RCYD(C)-8	RCYD(C)-10	RCYD(C)-12
Note:Any change of technical data shall not be advised additionally.

Mobile Primary Jaw Crusher

Technical Data//Model		LYCJ69	LYCJ750	LYCJ912	LYCJ860	LYCJ1100
Transportation size(mm)		1190025503650	1350025504300	1520029504450	1460027504350	1520028004900
Weight(t)		35	52	80	59	85
Tire Configuration		Dualaxial	Triaxial	Triaxial	Triaxial	Triaxial
Jaw Crusher		PE600*900	PE750*1060	PE900*1200	PEW860	PEW1100
The Maximum Feeding Size(mm)		480	630	750	730	940
Discharge Opening Size(mm)		65~160	80~140	100~200	75~225	150~275
Capacity(t/h)		90~180	110~320	220~450	150~500	300~650
Vibrating Feeder		GZD960*3800	GZD1100*4200	GZD1300*4900	GZD1300*4900	GZD1300*4900
Main Belt Conveyor		B800*8.5M	B1000*9M	B1200*9.5M	B1200*9.5M	B1200*9.5M
Side Belt Conveyor(optional)		B450*3M	B500*3.5M	B650*4M	B650*4M	B650*4M
Electric control	standard	Control box+control panel	Control box+control panel	Control box+control panel	Control box+control panel	Control box+control panel
Electric control	optional	Control box+LCD	Control box+LCD	Control box+LCD	Control box+LCD	Control box+LCD
Hydraulic leg	standard	4	4	4	4	4
Hydraulic leg	optional	2	2	2	2	2
Hydraulic cyclinder	standard	4	4	4	4	4
Hydraulic cyclinder	optional	5	5	5	5	5
Genset(optional)(kw)		180	250	250	270	380
Iron Separator(optional)(kw)		RCYD(C)-8	RCYD(C)-10	RCYD(C)-12	RCYD(C)-12	RCYD(C)-12
Note:Any change of technical data shall not be advised additionally.

Various Models Impact Jaw 90TPH-650TPH Mobile Crusher Plant 1
