| Product Name: | Raymond Vertical Grinding Mill | Keyword: | Vertical Grinding Mill |
|---|---|---|---|
| Feature: | Powder-saving And Higher Production Capacity | Applicaton: | Mining, Building Material, Chemical Engineering |
| Roller Dimension(mm): | 260-440 | Roller Height(mm): | 150-270 |
| Max. Feeding Size(mm): | 15-35 | Fineness(mm): | 0.613-0.033 |
| Output(mm): | 1-3 | Power(kw): | 18.5-132 |
| High Light: | 425 Mesh Ore Grinding Mill,30 Mesh Ore Grinding Mill,425 Mesh Vertical Grinding Mill |
||

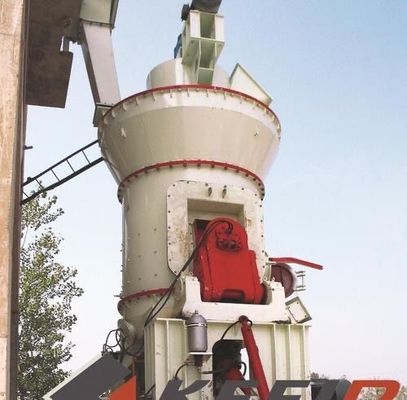

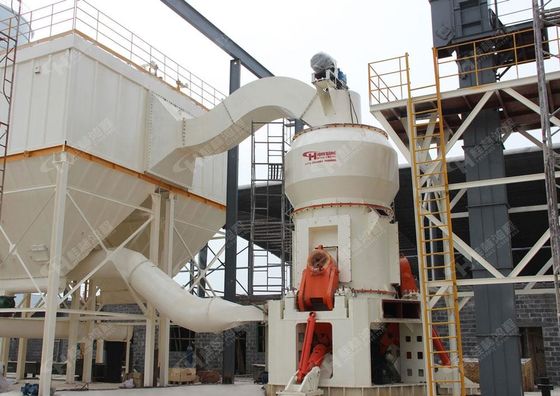

30-425 Mesh Smooth and Reliable Performance raymond vertical grinding mill
Product description
The raymond vertical grinding mill is used to grind barite, calcite, potash feldspar, talcum,marble, limestone, cream and slag below scale 7 of Moths hardness and 280-odd sorts of non-inflammable and non-explosive stuff in the traded of mining, building material, chemical engineering and metallurgy forpower generation and processing. Thefinal product size of raymond vertical grinding mill is adjustable onrequired in the range of 100-325 meshes.
Cement Vertical Mill
Cement vertical mill is mainly used for grinding cement clinker.In recent years, with the improvement of design and manufacturing technology of vertical mill, and the innovation of grinding process, vertical mill has been successfully applied as cement final grinding equipment in foreign countries.Used in cement industry with annual output of 30, 60, 100, 120, 1.5 million tons and other industries, to meet users' requirements for different output and grinding of different materials.
Working Principle
Materials first enter the crusher to be crushed to smaller size. Then they are lift to storage room by elevator. Vibrating feeder will feed materials into raymond vertical grinding mill chamber evenly and gradually. After being grinded, the powder will be blowed to cyclone by blower. Then the material will be transferred to storage room through pipes, and then will be discharged as final products. The whole processof raymond vertical grinding mill works in a negative pressure environment. First, through pipes, the air from the blower enters the cyclone collector above the storage room along with powder, and then returns to the blower through return pipe. In the way, air can be recycled. There is a powder locking equipment under the cyclone in raymond vertical grinding mill , which isolates the outside positive air pressure and the negative air pressure inside cyclone. And this ensures high productivity. In addition, the residual air and dust under the main unit will be transferred to dust catcher equipment through pipes and be cleaned there. The clean air will be discharged so that environment will be protected.
Features
1) The professional producer of raymond vertical grinding mill
2) Powder-saving and Higher Production Capacity .
3) Smooth and Reliable Performance.
4) Fineness: 30—425Mesh (Adjustable)
5)Run for 1000 hours without Lubrication
Technical parameters
| Type | Roller |
Max. feeding size(mm) |
Fineness(mm) | Output(mm) | Power(kw) | Size (mm) | ||
| No. | Dimension(mm) | Height(mm) | ||||||
| YGM7815 | 3 | 260 | 150 | 15 | 0.613-0.033 | 1-3 | 18.5 | 4300*3500*5100 |
| YGM8314 | 3 | 270 | 140 | 20 | 0.613-0.033 | 1.2-4.6 | 22 | 5300*4100*5200 |
| YGM9517 | 4 | 310 | 170 | 25 | 0.613-0.033 | 2.1-5.6 | 37 | 7100*5900*7900 |
| YGM4121 | 5 | 410 | 210 | 30 | 0.613-0.033 | 2.8-10.5 | 75 | 9200*7250*9700 |
| MTM1600 | 6 | 440 | 270 | 35 | 0.613-0.033 | 5-20 | 132 | 12550*5700*8350 |
