500-650 Tph Cement HPGR crusher Machine And Wearparts

China Luoyang Zhongtai Industrial Co., Ltd. certification
China Luoyang Zhongtai Industrial Co., Ltd. certification
I'm Online Chat Now

500-650 Tph Cement HPGR crusher Machine And Wearparts

500-650 Tph Cement HPGR crusher Machine And Wearparts
500-650 Tph Cement HPGR crusher Machine And Wearparts 500-650 Tph Cement HPGR crusher Machine And Wearparts 500-650 Tph Cement HPGR crusher Machine And Wearparts 500-650 Tph Cement HPGR crusher Machine And Wearparts 500-650 Tph Cement HPGR crusher Machine And Wearparts 500-650 Tph Cement HPGR crusher Machine And Wearparts

Large Image :  500-650 Tph Cement HPGR crusher Machine And Wearparts

Product Details:
Place of Origin: China
Brand Name: ZTIC
Certification: ISO/CE
Model Number: According to customer demand
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard shipping packaging
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month
Detailed Product Description
Roller Surface Diameter(mm): 1200-1800 Roller Width(mm): 450-1200
Motor Power (Kw): 2*280-2*1250 Feeding Size (mm): ≤30
Discharging Size(mm): ≤3more Than 65% Through-put(t/h): 500-650
High Light:

650 Tph Cement HPGR Crusher

,

500 Tph Cement HPGR Crusher

,

650 Tph HPGR Crusher Machine

Professional cement HPGR crushing machine and wearparts for sale

Product advantage:

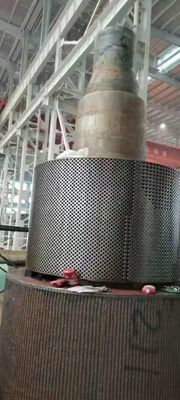

1. The press roller surface adopts hard alloy stud setting-in structure to increase the life time of the roller sleeve
2. Universal coupling-planetary retarder-press roller to consist of shaft flexible drive system
3. Compound structure of non-contact sealing and contact sealing are adopted at the side of the press roller
4. Unique ellipse structure is used for the feeding pipe to make the feeding process smooth
5. Oil spray lubrication system is used for the lubrication of the main bearing
6. The main bearing adopts inner passage fully-sealing structure for cooling
7. The hard alloy welding press roller surface or setting-in surface are available depending on the user’s need.

500-650 Tph Cement HPGR crusher Machine And Wearparts 0

Applicable scope:



1. Applicable for the mineral processing industry; it can be installed before the ball mill as pre-milling equipment or consist of mixing grinding system with ball mill.
2. Applicable for oxide pellet industry instead of the common used damp mill.
3. Applicable for building material and fire-proof material industry; successful application for the grinding of clinker, limestone and bauxite.



Specification GM1200*450 GM1400*650 GM1400*800 GM1500*900 GM1600*1000 GM1700*1000 GM1700*1400 GM1800*1200
Roller surface diameter(mm) 1200 1400 1400 1500 1600 1700 1700 1800
Roller width(mm) 450 650 800 900 1000 1000 1400 1200
Motor power (Kw) 2*280 2*500 2*560 2*710 2*710 2*800 2*1250 2*1250
Feeding size (mm) ≤30 ≤40 ≤40 ≤40 ≤45 ≤50 ≤50 ≤50
Discharging size(mm) ≤5 more than 65% ≤3 more than 65% ≤3 more than 65% ≤3 more than 65% ≤3 more than 65% ≤3more than 65% ≤3 more than 65% ≤3more than 65%
Through-put(t/h) 75-150 150-250 200-320 250-370 320-450 350-510 450-650 500-650
Equipment weight(t) ~44 ~107 ~132 ~167 ~197 ~240 ~246

~260





500-650 Tph Cement HPGR crusher Machine And Wearparts 1500-650 Tph Cement HPGR crusher Machine And Wearparts 2
