Construction 500Tph Mobile Jaw Crusher Impact Crusher Plant

China Luoyang Zhongtai Industrial Co., Ltd. certification
China Luoyang Zhongtai Industrial Co., Ltd. certification
I'm Online Chat Now

Construction 500Tph Mobile Jaw Crusher Impact Crusher Plant

Construction 500Tph Mobile Jaw Crusher Impact Crusher Plant
Construction 500Tph Mobile Jaw Crusher Impact Crusher Plant Construction 500Tph Mobile Jaw Crusher Impact Crusher Plant Construction 500Tph Mobile Jaw Crusher Impact Crusher Plant Construction 500Tph Mobile Jaw Crusher Impact Crusher Plant Construction 500Tph Mobile Jaw Crusher Impact Crusher Plant

Large Image :  Construction 500Tph Mobile Jaw Crusher Impact Crusher Plant

Product Details:
Place of Origin: China
Brand Name: ZTIC
Certification: ISO/CE
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: regular packing
Delivery Time: 1-2 months
Payment Terms: L/C, T/T
Supply Ability: 300 sets per month
Detailed Product Description
Product Name: Mobile Crusher Item: Wheel Mobile Crushing Plant
Car Body: Two-Spindle Feeding Size (mm): 750
Power (kw): 6-22 Application: Construction,Mining
Advantage: Low Noise, Less Dust Usage: Approaching Treatment Of Materials
Weight: 20t Certification: ISO/CE
High Light:

500Tph Mobile Jaw Crusher

,

500Tph Impact Crusher Plant

,

750MM Mobile Jaw Crusher

500 tph output mobile crusher jaw crusher impact crusher crushing plant



Introduction of Mobile crusher



Mobile crusher is a new type of equipment developed on the basis of years of independent research and development and manufacturing experience of wheel mobile crushing plant, and in combination with the new user demands. It is optimized and innovated in the aspects of structural design, equipment configuration and combined application, so as to realize more flexible combinations, greatly widen the application fields of wheel mobile crushing plant, and truly realize the approaching treatment of materials.

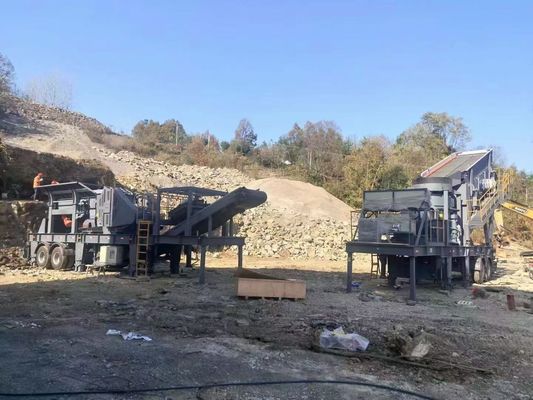

Construction 500Tph Mobile Jaw Crusher Impact Crusher Plant 0

Mobile crusher component



1. The product use of world-class manufacturing processes, selection of the high-end materials.

2. The base of bearing use of integrated steel structures.

3. The broken cavity using "V"-shaped structure, so that the actual width of feed is same as nominal line width.

4. The broken cavity is deep and without dead zone, increased capacity and output feed.

5. Lubrication system is safe and reliable, convenient of replace parts, easy to maintenance.

6. The outlet use of pad-style adjustment devices, convenient and reliable, large of adjustment range, and increase the flexibility of the equipment.

7. Low noise, less dust.

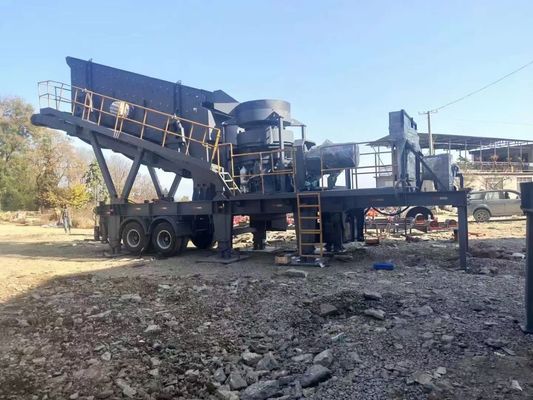

Construction 500Tph Mobile Jaw Crusher Impact Crusher Plant 1

Application of Mobile crusher



We provides a complete line of stone production; the output is widely used in Construction (like concrete, highway, railway, brick, building, etc), For Mining ( like gold, copper, Iron ore beneficiation or nonmetal beneficiation, etc)



Mobile crusher parameters



Mobile jaw crusher:



Model Car Body Feeder Crusher Belt Conveyor (standard configuration↵ ) Engine (Optional) Overall dimension (mm)
Model Feeding Size (mm) Power (kw) Model Feeding Size (mm) Power (kw) Size(m) Power(kw)
YF938J69-N Two-Spindle GZD960×3800 500 6-11 PE600×900 500 6-75 B800×8.5 200 12600×2550×3870
YF1142J710-N Three-Spindle GZD1100×4200 580 6-11 PE750×1060 630 8-90 B1000×9.5 250 13900×2750×4320
YF1349J912-N Three-Spindle GZD1100×4900 750 6-22 PE900×1200 750 8-130 B1200×10.5 270 15450×2950×4380
YF1349J811-N Three-Spindle GZD1300×4900 750 6-22 PEW860 720 6-132 B1200×10.5 320 15450×2950×4380
YF1349J1120-N Three-Spindle GZD1300×4900 750 6-22 PEW1100 930 8-185 B1200×10.5 400 15450×2950×4380

Mobile (Portable) Jaw Crusher plant provides a new field of business opportunities for contractors, quarry operators, recycling and mining applications. It offers high efficient and low cost project plan without environment limit for the client.



Mobile impact crusher plant:

Model Car Body Feeder Crusher Belt Conveyor (standard configuration) Engine (Optional) Overall dimension (mm)
Model Feeding Size (mm) Power (kw) Model Feeding Size (mm) Power (kw) Size(m) Power (kw)
YF938FW1214Ⅱ Two-Spindle GZD960×3800 500 6-11 PFW1214II 500 4-132 B800×8.5 360 12600×2550×3870
YF1142FW315Ⅱ Three-Spindle GZD1100×4200 580 6-15 PFW1315II 600 4-160 B1000×9.5 400 13900×2750×4180
YF1349FW318Ⅱ Three-Spindle GZD1300×4900 750 6-22 PFW1318II 700 4-200 B1200×10.5 500 15450×2950×4180
Y3S1860F1214-N Three-Spindle 3YK1860 ≤400 4-22 PF1214 350 6-132 B800×8.5 360 14300×2830×4380
Y3S2160F1315-N Three-Spindle 3YK2160 ≤400 4-30 PF1315 350 6-200 B1000×8.5 500 14300×3190×4380
Y3S1860FW214Ⅲ Three-Spindle 3YK1860 ≤400 4-22 PFW1214Ⅲ 250 4-132 B800×8.5 360 14300×2830×4380
Y3S2160FW315Ⅲ Three-Spindle 3YK2160 ≤400 4-30 PFW1315Ⅲ 300 4-160 B1000×8.5 400 14300×3190×4380



Mobile (Portable) Impact Crusher plant provides a new field of business opportunities for contractors, quarry operators, recycling and mining applications. It offers high efficient and low cost project plan without environment limit for the clifent.

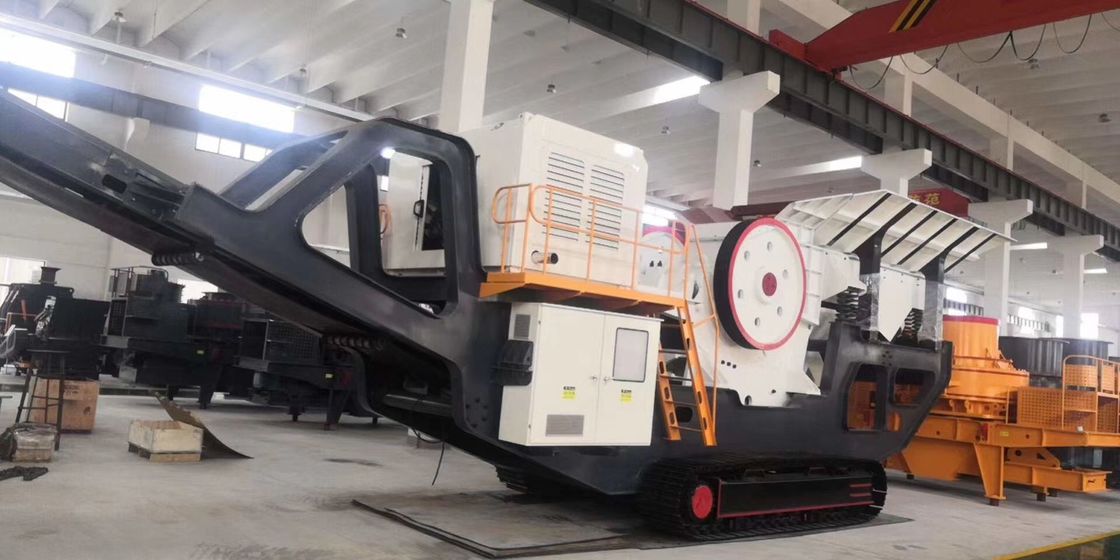

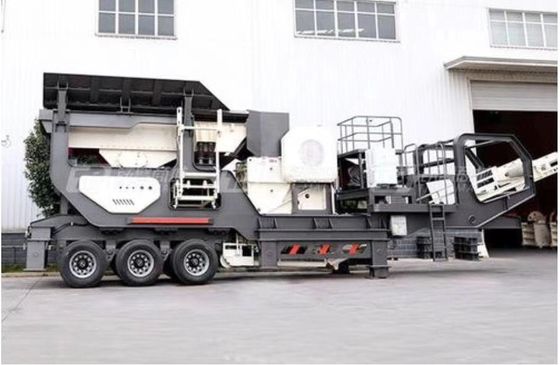

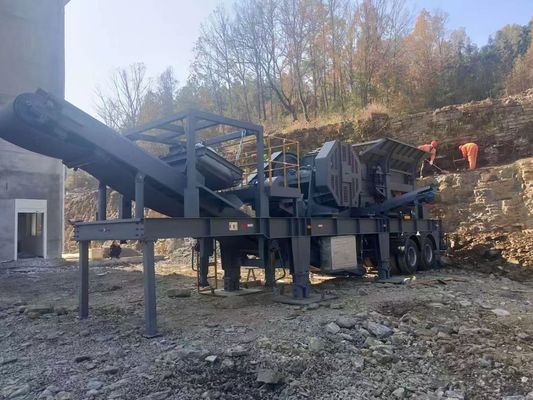

Construction 500Tph Mobile Jaw Crusher Impact Crusher Plant 2Construction 500Tph Mobile Jaw Crusher Impact Crusher Plant 3Construction 500Tph Mobile Jaw Crusher Impact Crusher Plant 4
