Keyword: | Fine Stone Crusher | Product Name: | Vertical Complex Crusher |
---|---|---|---|
Feed Size (mm): | ≤220 | Discharge Size (mm): | ≤3,70-90% |
Rotating Speed Of Main Shaft (r/min): | 880~1350 | Capacity T/h: | 8-120 |
Power (kw): | 45-200 | Outline Dimension (mm): | 4270*2610*2180 |
Usage: | Fine Crushing, Coarse Grinding | Feature: | High Efficient |
High Light: | 1350R/Min Stone Crusher Machine,PFL Stone Crusher Machine,1350R/Min Vertical Complex Crusher |
advanced technology high efficient PFL Vertical Complex Crusher

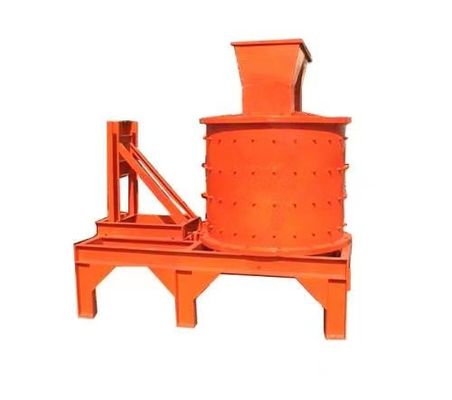

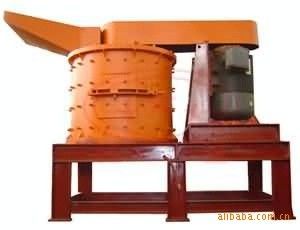

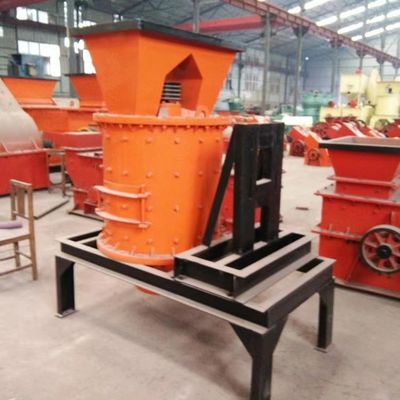

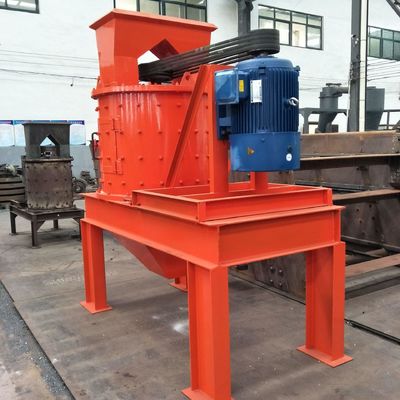

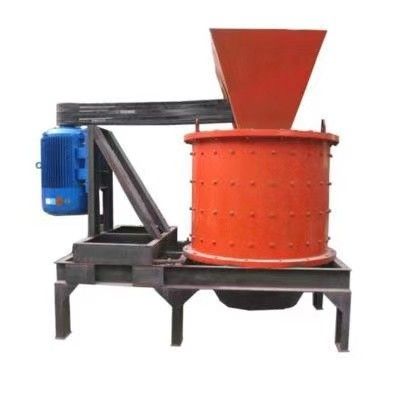

PFL Vertical Complex Crusher
Product Description:
PFL series vertical impact crusher is developed by our company which combined with domestic and overseas advanced technology, it is optimized to be new type fine crushing, coarse grinding crusher. The machine has features such as simple structure, large ratio of crushing, low energy consumption, stable rotation, easy operation and maintenance etc. among them, high efficient vertical impact crusher obtained the national patent . The series product is mainly used in raw material and agglomerate material crushing of cement factory. It is the ideal equipment for updating technology and cement product line. It is also applied in other medium hardness stones such as medium hardness iron ore, sandstone, gypsum, blast furnace slag, gangue, lump coal, metallurgy solvent material etc.
Performance Parameter:
Specification |
Feed Size (mm) |
Discharge Size (mm) |
Rotating Speed of Main Shaft (r/min) |
Capacity (t/h) |
Power (kw) |
Outline Dimension (mm) |
PFL-750Ⅲ | ≤100 | ≤3,70-90% | 880~1350 | 8~20 | 45 | 2370×1110×1300 |
PFL-1000Ⅲ | ≤120 | ≤3,70-90% | 650~980 | 15~30 | 55 | 2680×1520×1420 |
PFL-1250Ⅲ | ≤150 | ≤3,70-90% | 510~770 | 35~45 | 90 | 3240×1690×1660 |
PFL-1500Ⅲ (ⅢX) | ≤180 | ≤3,70-90% | 430~640 | 50~70 | 132 |
3530×2050×2030 (3392×2200×2180) |
PFL-1750Ⅲ (ⅢX) | ≤200 | ≤3,70-90% | 420~540 | 70~100 | 160 |
3710×2360×2390 (3720×2360×2280) |
PFL-2000Ⅲ | ≤220 | ≤3,70-90% | 360~500 | 90~120 | 200 | 4270×2610×2180 |
