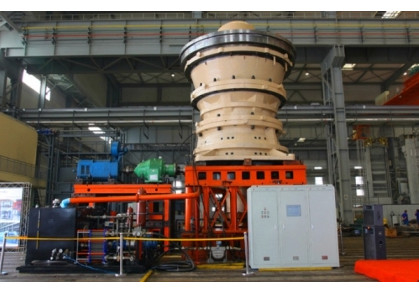

Factory Direct Sale Pxz Series Hydraulic Gyratory Crusher For Mining
1. Product Introduction
Hydraulic gyratory crusher is widely used in metallurgy, building materials, chemical industry, hydropower and other industries. It is one of the main equipment for coarse crushing ore or rock, and has the characteristics of large crushing ratio, high production capacity and uniform particle size of products.
Luo Mine design and manufacture of rotary crusher from PXZ-0506 to PXZ-1623 has formed a series, complete product specifications, advanced design, reliable performance, smooth work, low energy consumption. Luo mine production of hydraulic rotary crusher has PXZ(heavy) and PXQ(light) two series, which PXZ series used for crushing medium or above the hardness of various materials; PXQ series are used for crushing various materials with medium or below hardness.
2. Technical specifications
| Model |
The imperial model
|
kW (max) |
RPM | T | Feeding size MM |
Max. feeding size MM |
Bottom diameter of moving cone MM |
Moving cone bottom opening MM |
Output Tph |
| PXZ45-65 | 42-65 | 400 | 600 | 128 | 1100 | 900 | 1650 | 140-175 | 1800-2850 |
| PXZ50-65 | 50-65 | 400 | 600 | 175 | 1270 | 1050 | 1650 | 150-175 | 2200-2950 |
| PXZ54-75 (PXZ-1375Ⅱ) |
54-75 | 650 | 600 | 256 | 1375 | 1180 | 1910 | 150-200 | 2620-3470 |
| PXZ63-79 (PXZ-1450Ⅱ) |
63-79 | 650 | 600 | 320 | 1600 | 1400 | 1910 | 150-200 | 2670-4325 |
| PXZ60-89 (PXZ-1500Ⅱ) |
60-89 | 800 | 600 | 400 | 1524 | 1300 | 2260 | 160-230 | 4200-5810 |
| PXZ60-113 (PXZ-1750Ⅱ) |
60-113 | 1200 | 600 | 600 | 1524 | 1300 | 2870 | 160-260 | 5430-10000 |
|
Hydraulic gyratory crusher specifications: P(crusher)X(cycle)Z(heavy type)45(Feeding size [in])-65(Bottom diameter of moving cone [in]) |
|||||||||
3. Working principle

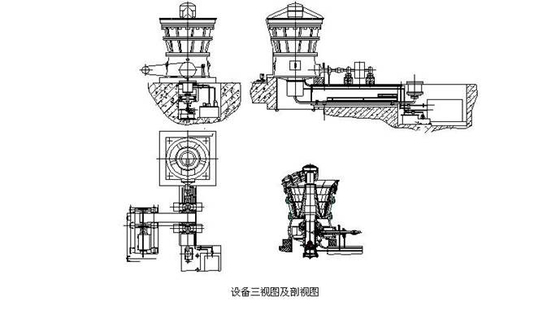

Hydraulic rotary crusher is the use of crushing cone in the cone chamber in the shell of the rotary movement, extrusion, splitting and bending of the material, is coarse crushing all kinds of hardness of ore or rock crushing machinery. The upper end of the spindle with broken cone is supported in the bushing in the middle of the beam, and the lower end is arranged in the eccentric hole of the shaft sleeve. When the shaft sleeve rotates, the crushing cone rotates eccentrically around the center line of the machine. Its crushing action is continuous, so the working efficiency is higher than that of jaw crusher.
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: we can supply technical guide for machines running test and parts maintenance if end user needs.
