PCH Type Ring Hammer Crusher And DSJ Drying Hammer Crusher Machine

PCH Type Ring Hammer Crusher And DSJ Drying Hammer Crusher Stone Crusher Machine

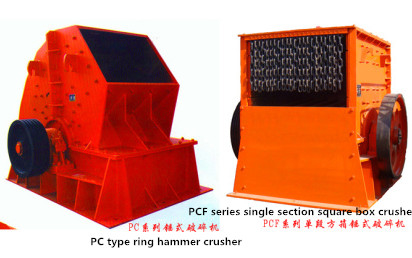

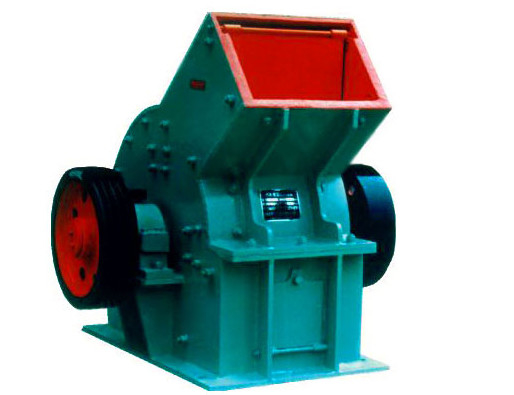

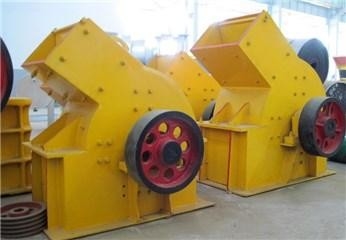

Luoyang mine machinery factory design and development of hammer crusher mainly includes: Luo mine hammer crusher single or double rotor hammer crusher. Luo mine hammer crusher model for PCH ring hammer crusher,PCF series single section square box hammer crusher and PC series hammer crusher, DSJ series drying hammer crusher.

1. Hammer crusher product introduction:

Hammer crusher is widely used in concentrator, refractory factory, cement factory, glass factory and other industrial departments of fine grinding medium hardness materials. Can be used for dry, wet two forms of crushing, wet is the material seepage wet grinding, dry does not allow water seepage and dry grinding.

2. USES:

Used in coal, metallurgy, building materials, chemical, electricity and other departments in the broken page or finely coal, coal gangue, limestone, stone, feldspar, gypsum, coke, brick, brick rubble, salt and sulfur, phosphorus, limonite, this machine has the advantage of light body is compact, simple structure, easy operation and maintenance, broken than large, after crushing, less product granularity and the small, high production capacity, low energy consumption, etc.

3. Hammer crusher scope of application

(1) PCF series single section square box hammer crusher is suitable for crushing limestone, marl, sandstone, shale, gypsum, coal and other hard materials with compressive strength < 100MPa.

(2) PC series hammer crusher is suitable for crushing brittle, medium hard that is, the surface moisture is not more than 2%, compressive strength is not more than 150Mpa of all kinds of materials.

(3) DSJ series of hammer crusher is suitable for drying and crushing and drying soft abrasive material, such as gypsum, chalk, clay, slurry filter cake, etc., such as for industrial by-products such as gypsum, flue gas desulfurization gypsum were scattered, drying and calcining, the machine is high efficiency, low energy consumption, at the same time of drying is scattered and broken. The rotating rotor will break up the material, hot air will dry the material, air flow will have broken and dried material to the separation chamber, fine powder then into the cyclone cylinder separation, coarse particles back into the hammer crusher again broken.

(4) PCH ring hammer crusher, suitable for crushing all kinds of brittle materials, such as coal, coal, coke, slag, red sandstone, shale, loose limestone and so on. The compressive strength of the material shall not exceed 100MPa, and the surface moisture shall not exceed 15%.

4.Specifications
