| Use: | Granite, Limestone, Concrete, Quick Lime, Gypsum, Hydrated Lime | Condition: | New |
|---|---|---|---|
| Production Capacity: | 15-850T/H | Feed Size: | ≤1000mm |
| Name: | Impact Crusher | Warranty: | 12 Month |
| Type: | Stone Crusher Machine | Place Of Origin: | Henan, China |
| High Light: | Full Hydraulic Impact Crusher Machine,350 mpa Impact Crusher Machine,Hard Rock Impact Crusher Machine |
||

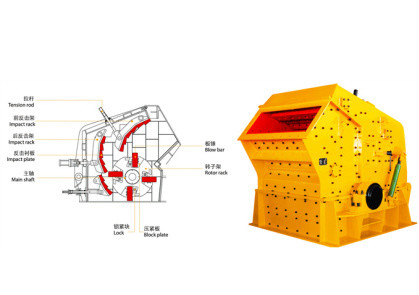

Factory Direct Sale PF Series Impact Crusher Of Stone Crusher Machine
1. Product introduction
This series of products can deal with the side length of 100 ~ 500 mm below the material, its compressive strength up to 350 mpa, with a large crushing ratio, broken materials into cubic particles and other advantages. This product can handle all kinds of coarse, medium and fine materials (granite, limestone, concrete, etc.) with side length not more than 500mm and compressive strength not more than 350MPa. It is widely used in hydropower, highway, artificial sand and stone, crushing and other industries.
2. Application
(1) PF series impact crusher absorbs the advanced technology at home and abroad on the basis of elaborately designed new products, with excellent performance and good performance, widely used in the production of high-grade highway, hydropower, artificial sand and stone, crushing, construction and other industries with stone.
(2) PFQ series strong scroll impact crusher is our company to absorb the advanced technology of similar models at home and abroad, combined with the specific working conditions of domestic related industries, and according to our company over the years of production and manufacturing experience and development of new high-efficiency series of crusher.
3. Specifications
| Type | SPEC (mm) |
Feeding port size (mm) |
Feed size Max (mm) |
Production capacity (t/h) |
Motor power (kw) |
Total weight(t) | Dimensions (L×W×H)(mm) |
| PF-1007 | Φ1000×700 | 400×730 | 300 | 30-70 | 37-45 | 12 | 2330×1660×2300 |
| PF-1010 | Φ1000×1050 | 400×1080 | 350 | 50-90 | 45-55 | 15 | 2370×1700×2390 |
| PF-1210 | Φ1250×1050 | 400×1080 | 350 | 70-130 | 110 | 17.7 | 2680×2160×2800 |
| PF-1214 | Φ1250×1400 | 400×1430 | 350 | 100-180 | 132 | 22.4 | 2650×2460×2800 |
| PF-1315 | Φ1320×1500 | 860×1520 | 500 | 130-250 | 220 | 27 | 3180×2720×2620 |
| PF-1520 | Φ1500×2000 | 830×2040 | 700 | 300-550 | 315-400 | 50.6 | 3959×3564×3330 |
| PF-1820 | Φ1800×2000 | 1260×2040 | 800 | 600-800 | 630-710 | 83.21 | 4400×3866×4009 |
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
