| Name: | C / PE Series Jaw Crusher | Condition: | New |
|---|---|---|---|
| Usage: | Stones And Bulk Materials | Compressive Strength: | 320Mpa |
| Classification: | Stone Crusher Machine | Warranty: | 12 Months |
| Suitable: | Mining, Smelting, Construction, Highway, Railway | Color: | Custom |
| High Light: | PE Series Jaw Crusher Machine,Mining Equipment Jaw Crusher Machine,PE Series Mining Jaw Crusher |
||

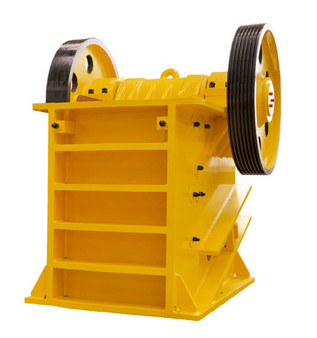

C / PE Series Jaw Crusher Of Stone Crusher Machine For Mining Equipment
Jaw crusher series products Of Stone Crusher Machine
Widely used in mining, smelting, construction, highway, railway, water conservancy and chemical industry and other industries. It has the characteristics of large crushing ratio, uniform product material, reasonable structure, reliable work, convenient maintenance, economic operation cost, etc., crushing compressive strength is not more than 320 mpa of various materials.
1. C series jaw crusher
(1) Brief introduction of C series jaw crusher
C series jaw crusher is a new generation of jaw crusher introduced European technology, compared with similar models, its high output, low energy consumption, reliable structure, simple operation and maintenance, is the preferred equipment for coarse crushing all kinds of rock.
(2) Scope of application
Sand and stone field, mining, coal mining, concrete mixing station, dry mortar, power plant desulfurization, quartz sand and so on
Material: pebble, granite, basalt, iron ore, limestone, quartz, diabase, iron ore, gold ore, copper ore, etc
(3) Features
a. Superior motion characteristics, unique cavity type, more than 15% more processing capacity than similar models, save energy consumption more than 10%.
b. The unique crushing chamber makes the material utilization rate of the jaw plate higher. The jaw plate can be turned around for four times to achieve uniform wear on the crushing surface of the jaw plate, improve the material utilization rate and prolong the service life.
c. The tooth peak of jaw plate in crushing chamber is more conducive to crushing hard materials than that of movable jaw plate and fixed jaw plate.
d. The structure design with adjustable transmission Angle can increase the output under the same discharge port.
e. Fixed jaw plate and movable jaw plate are common, which can effectively reduce the number of spare parts for users and make installation more convenient.
f. Discharging port adopts double jack hydraulic adjustment mode, which is faster and more labor-saving.
g. Movable jaw and frame part are separable structure, convenient transportation.
2. Parameter list
PE Series Jaw Crusher Of Stone Crusher Machine For Mining Equipment parameters:
| Model | Feeding port size (mm) |
Feed size Max (mm) |
Discharge range opening (mm) |
Processing capacity (t/h) |
Eccentric shaft speed (r/min) |
Motor power (kw) |
Total weight (t) |
Dimensions (L×W×H) (mm) |
| PE-150×250 | 150×250 | 125 | 10-40 | 1-3 | 250 | 5.5 | 0.8 | 720×660×850 |
| PE-200×300 | 200×300 | 180 | 15-50 | 2-6 | 260 | 7.5 | 1.2 | 910×750×990 |
| PE-200×350 | 200×350 | 180 | 18-70 | 3-10 | 260 | 11 | 1.5 | 1000×870×990 |
| PE-250×400 | 250×400 | 210 | 20-60 | 5-20 | 300 | 15 | 2.8 | 1300×1090×1270 |
| PE-400×600 | 400×600 | 340 | 40-100 | 16-60 | 275 | 30 | 7 | 1730×1730×1630 |
| PE-500×750 | 500×750 | 425 | 50-100 | 40-110 | 275 | 55 | 12 | 1980×2080×1870 |
| PE-600×750 | 600×750 | 500 | 150-200 | 80-240 | 275 | 55 | 15.8 | 2070×2000×1920 |
| PE-600×900 | 600×900 | 500 | 65-160 | 50-180 | 250 | 55 | 17 | 2190×2206×2300 |
| PE-750×1060 | 750×1060 | 630 | 80-140 | 110-320 | 250 | 110 | 29 | 2660×2430×2800 |
| PE-800×1060 | 800×1060 | 640 | 130-190 | 130-330 | 250 | 110 | 29.8 | 2710×2430×2800 |
| PE-830×1060 | 830×1060 | 650 | 160-220 | 150-336 | 250 | 110 | 30.7 | 2740×2430×2800 |
| PE-870×1060 | 870×1060 | 660 | 200-260 | 190-336 | 250 | 110 | 31.5 | 2810×2430×2800 |
| PE-900×1060 | 900×1060 | 685 | 230-290 | 230-390 | 250 | 110 | 33 | 2870×2420×2940 |
| PE-900×1200 | 900×1200 | 750 | 95-165 | 220-450 | 200 | 110 | 52 | 3380×2870×3330 |
| PE-1000×1200 | 1000×1200 | 850 | 195-265 | 315-500 | 200 | 110 | 55 | 3480×2876×3330 |
| PE-1200×1500 | 1200×1500 | 1020 | 150-350 | 400-800 | 180 | 160-220 | 100.9 | 4200×3300×3500 |
| PE-1500×1800 | 1500×1800 | 1200 | 220-350 | 500-1000 | 180 | 280-355 | 122 | 5160×3660×4248 |
| PE-1600×2100 | 1600×2100 | 1500 | 300-400 | 1300-2200 | 160 | 350-380 | 150.6 | 6210×4013×4716 |
| PEX-150×750 | 150×750 | 120 | 18-48 | 8-25 | 320 | 15 | 3.8 | 1200×1530×1060 |
| PEX-250×750 | 250×750 | 210 | 25-60 | 13-35 | 330 | 30 | 5.5 | 1380×1750×1540 |
| PEX-250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 330 | 30 | 7 | 1560×1950×1390 |
| PEX-250×1200 | 250×1200 | 210 | 25-60 | 20-61 | 330 | 37 | 9.7 | 2140×1660×1500 |
| PEX-300×1300 | 300×1300 | 250 | 20-90 | 16-105 | 300 | 55 | 15.6 | 2720×1950×16 |
