Product Name: | Steel Ball Coal Mill | Application: | Cement Industry, Metallurgy Industry, Chemical Industry |
---|---|---|---|
Model: | DTM Series | Condition: | New |
Feature: | Efficient Low Consumption | Materials: | Various Hardness Of Coal |
Type: | Ore Grinding Mill | Warranty: | 12 Months |
High Light: | Ore Steel Coal Ball Mill,Smash Steel Coal Ball Mill,DTM Smash Steel Coal Ball Mill |

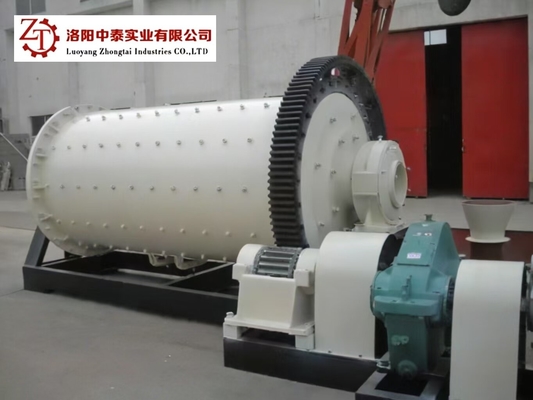

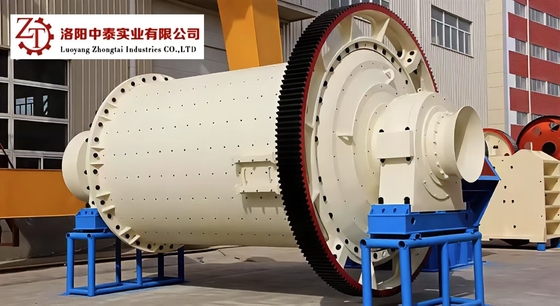

Factory Customizable DTM Series Steel Ball Coal Mill For Ore Smash And Grinding
1. Introduction of steel ball coal mill
Ball mill is the main equipment of coal powder preparation system in thermal power station. At the same time, it is also suitable for cement industry, metallurgy industry, chemical industry, sugar industry and other pulverizing systems, widely used in crushing various hardness of coal. Its function is to dry, break and grind a certain size of coal into pulverized coal for boiler combustion.
2. Working principle of steel ball coal mill
Coal mill is pulverized coal broken and pulverized coal machinery, it is an important auxiliary equipment of pulverized coal furnace. Coal grinding is a process in which coal is broken and its surface area increases continuously. Coal is ground into pulverized coal in a coal mill, mainly by crushing, crushing and grinding three ways. Coal mill can be divided into low speed coal mill, medium speed coal mill and high speed coal mill according to the speed of coal mill working parts.
3. Use of steel ball coal mill
Coal mill/mill is widely used in cement, silicate products, new building materials, refractory materials, chemical fertilizers, black and non-ferrous metal dressing and glass and ceramics and other production industries, dry or wet grinding of all kinds of ores and other grindable materials.
4. Product parameters
Mine steel ball coal mill technical parameters:
Model | Cylinder size(mm) | Cylinder speed(r/min) | Ball load (t) |
Feed size (mm) |
Production capacity (t/h) |
Power (kw) |
Dimensions (mm) |
Weight (kg ) | |
Diameter | length | ||||||||
DTM1722 | 1700 | 2200 | 24.5 | 5 | ≤25 | 2-3 | 75 | 6685×3500×3000 | 23000 |
DTM1725 | 1700 | 2500 | 24.5 | 7.5 | ≤25 | 3-5 | 90 | 7026×3745×3295 | 24600 |
DTM2126 | 2100 | 2600 | 22.81 | 10 | ≤25 | 4-6 | 160 | 7891×4930×3800 | 35000 |
DTM2133 | 2100 | 3300 | 22.81 | 13 | ≤25 | 4.5-6.5 | 210 | 8691×4930×3800 | 38000 |
DTM2137 | 2100 | 3700 | 22.81 | 17 | ≤25 | 5.2-7.1 | 210 | 9110×4930×3800 | 40000 |
DTM2226 | 2200 | 2600 | 22 | 10 | ≤25 | 4.4-6.6 | 160-180 | 7070×4980×3400 | 37400 |
DTM2230 | 2200 | 3000 | 22 | 12 | ≤25 | 4.7-7.0 | 180 | 8450×4980×3400 | 38800 |
DTM2233 | 2200 | 3300 | 22 | 14 | ≤25 | 5-7.4 | 210 | 8850×4980×3400 | 41000 |
DTM2238 | 2200 | 3800 | 22 | 16 | ≤25 | 6-8 | 210-250 | 9450×4980×3400 | 43600 |
DTM2244 | 2200 | 4400 | 22 | 18 | ≤25 | 8-9 | 250-280 | 10500×5340×4300 | 45143 |
DTM2247 | 2200 | 4700 | 22 | 22 | ≤25 | 10-13.8 | -280 | 11000×5340×4300 | 48800 |
DTM2532 | 2500 | 3200 | 20.3 | 18 | ≤25 | 6.5-7.5 | 250-280 | 9810×5450×4194 | 50780 |
DTM2536 | 2500 | 3600 | 20.3 | 20 | ≤25 | 7.5-8.5 | 310 | 10210×5450×4194 | 54900 |
DTM2539 | 2500 | 3900 | 20.3 | 22 | ≤25 | 8.6-10 | 320 | 11000×5450×4194 | 59000 |
DTM2935 | 2900 | 3500 | 19.1 | 22 | ≤25 | 11-12 | 380 | 10715×6355×4846 | 71000 |
DTM2941 | 2900 | 4100 | 19.1 | 30 | ≤25 | 11.8-14 | 475 | 11522×6355×4846 | 75000 |
DTM2947 | 2900 | 4700 | 19.1 | 35 | ≤25 | 13-16.4 | 570 | 12195×6355×4846 | 81000 |
DTM3247 | 3200 | 4700 | 18.4 | 44 | ≤25 | 20 | 630 | 12600×7201×5435 | 120000 |
DTM3258 | 3200 | 5800 | 18.4 | 55 | ≤25 | 25 | 800 | 14143×7201×5435 | 135000 |
DTM3560 | 3500 | 6000 | 17.57 | 64 | ≤25 | 30 | 1000 | 14460×8451×5435 | 175000 |
DTM3570 | 3500 | 7000 | 17.57 | 75 | ≤25 | 35 | 1200 | 15460×8451×5435 | 182000 |
DTM3872 | 3800 | 7200 | 16.54 | 90 | ≤25 | 42 | 1700 | 16730×9249×5900 | 240000 |
DTM3883 | 3800 | 8300 | 16.54 | 95 | ≤25 | 50 | 2000 | 17820×10169×5900 | 252000 |
