| Features: | Efficient Low Consumption | Classification: | Ore Grinding Mill |
|---|---|---|---|
| Feed Size: | 6mm | Discharge Size: | 2mm |
| Material: | Ore Charge | Product Name: | Vertical Spiral Mill |
| Application: | Powder Metallurgy, Mechanical Alloying, Metallurgical Raw Material Processing | Warranty: | 12 Month |
| High Light: | MLL Series Vertical Spiral Mill,Superfine Grinding Vertical Spiral Mill,Spiral Mill Superfine Grinding Equipment |
||
Ore Grinding Mill MLL Series Vertical Spiral Mill For Superfine Grinding Equipment
1. Ore Grinding Mill MLL Series Vertical Spiral Mill Product usage and characteristics
Vertical screw mill is mainly used in the grinding of metal ore, grinding and deep processing of non-metallic ore, comprehensive utilization of low grade minerals, extraction of useful elements in tailings and other mining industry, Powder metallurgy, mechanical alloying, metallurgical raw material processing, metallurgical waste residue utilization, cemented carbide production and other metallurgical industry and other industrial industries. It is a certain size of ore or other materials grinding into more fine-grained equipment, is a kind of ultra-fine grinding equipment.
Vertical spiral mill is to achieve the purpose of grinding and refining particles by means of agitation. Under the agitation of mixer, mixing multidimensional groove ball medium and ore material do circular motion and rotation motion, the integrated use of medium ball and mineral aggregate, gravity and produced by the rotation of the centrifugal force between medium ball, ore material and medium between the ball and the ore materials, impact, friction and shear action between mine materials in the deformation and fracture under the action of momentum and impulse finally shattered, achieve ideal size. Compared with the traditional ball mill at the same power, the energy saving is 30% ~ 50%. The smaller the product size is, the more obvious the energy saving effect is. The maximum particle size of the feed can be 6mm, the minimum particle size of the discharge can be 0.02mm.
2.Ore Grinding Mill MLL Series Vertical Spiral Mill Model specifications
| Model |
(kW) |
maximum charge of balls(t) |
Mill about net weight (t) |
Installation dimensions of mill mm×mm |
Mill height mm |
| MLL1600 | 1600 | 182 | 200 | 4840×5493 | 15988 |
| MLL1250 | 1250 | 156 | 160 | 3870×3663 | 14635 |
| MLL1120 | 1120 | 127 | 140 | 4570×4363 | 14347 |
| MLL950 | 950 | 91 | 105 | 3870×3663 | 13604 |
| MLL750 | 750 | 87 | 95 | 3520×3473 | 13129 |
| MLL355 | 355 | 50 | 40 | 2628×2640 | 10038 |

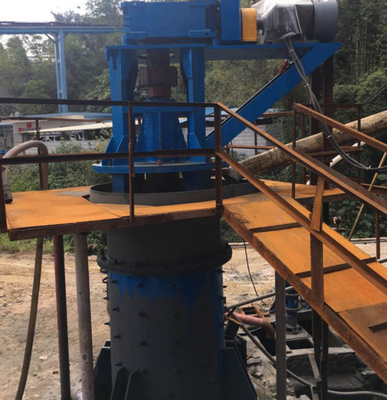

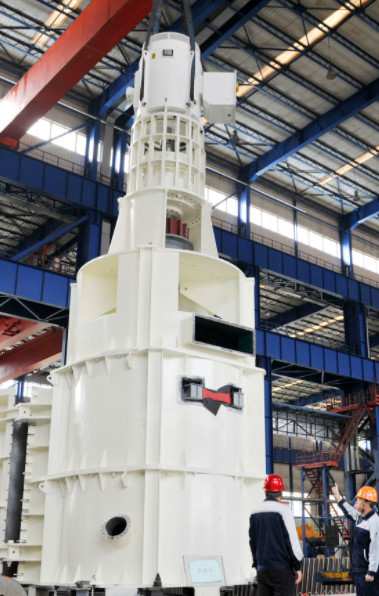

Ore Grinding Mill MLL Series Vertical Spiral Mill
