Product Details:
Payment & Shipping Terms:
|
| Type: | MLL Series Vertical Spiral | Advantage: | Efficient Low Consumption |
|---|---|---|---|
| Model: | MLL1600 | Installed Power: | 1600 KW |
| Application: | Powder Metallurgy, Mechanical Alloying, Metallurgical Raw Material Processing | Feed Size: | 6 Mm |
| Output Size: | 2 Mm | Classification: | Ore Grinding Mill |
| High Light: | MLL Series Vertical Spiral Mill,MLL Series Vertical Screw Mill,Vertical Screw Mill Powder Metallurgy |
||

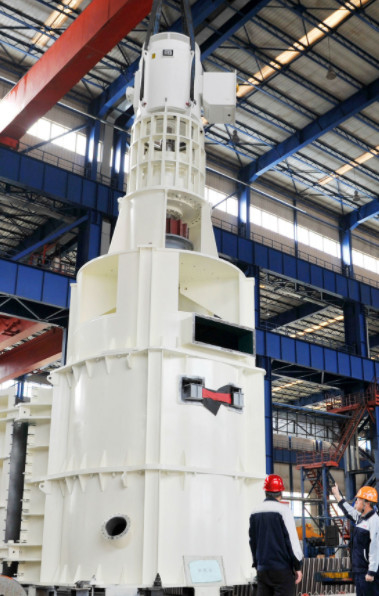

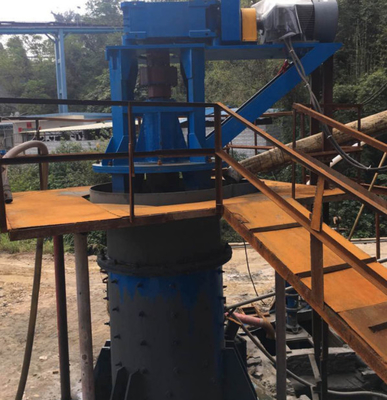

MLL Series Vertical Spiral Mill And Vertical Screw Mill Ore Grinding Mill
1. Product usage and characteristics
MLL Series Vertical Spiral Mill And Vertical Screw Mill Ore Grinding Mill
Vertical spiral mill is to achieve the purpose of grinding and refining particles by means of agitation. Under the agitation of mixer, mixing multidimensional groove ball medium and ore material do circular motion and rotation motion, the integrated use of medium ball and mineral aggregate, gravity and produced by the rotation of the centrifugal force between medium ball, ore material and medium between the ball and the ore materials, impact, friction and shear action between mine materials in the deformation and fracture under the action of momentum and impulse finally shattered, achieve ideal size. Compared with the traditional ball mill at the same power, the energy saving is 30% ~ 50%. The smaller the product size is, the more obvious the energy saving effect is. The maximum particle size of the feed can be 6mm, the minimum particle size of the discharge can be 0.02mm.
Vertical screw mill is mainly used in the grinding of metal ore, grinding and deep processing of non-metallic ore, comprehensive utilization of low grade minerals, extraction of useful elements in tailings and other mining industry, Powder metallurgy, mechanical alloying, metallurgical raw material processing, metallurgical waste residue utilization, cemented carbide production and other metallurgical industry and other industrial industries. It is a certain size of ore or other materials grinding into more fine-grained equipment, is a kind of ultra-fine grinding equipment.
2. Model specifications of MLL Series Vertical Spiral Mill And Vertical Screw Mill Ore Grinding Mill
| Model |
(kW) |
maximum charge of balls(t) |
Mill about net weight (t) |
Installation dimensions of mill mm×mm |
Mill height mm |
| MLL1600 | 1600 | 182 | 200 | 4840×5493 | 15988 |
| MLL1250 | 1250 | 156 | 160 | 3870×3663 | 14635 |
| MLL1120 | 1120 | 127 | 140 | 4570×4363 | 14347 |
| MLL950 | 950 | 91 | 105 | 3870×3663 | 13604 |
| MLL750 | 750 | 87 | 95 | 3520×3473 | 13129 |
| MLL355 | 355 | 50 | 40 | 2628×2640 | 10038 |
3. MLL Series Vertical Spiral Mill And Vertical Screw Mill Ore Grinding Mill Technical features
A. Vertical spiral mill is mainly composed of transmission part, frame part, screw part, overhaul door, coarse grading equipment, screw installation tools and motor, reducer, etc., with simple structure and convenient maintenance.
B. The frame part is lined with wear-resistant and corrosion-resistant rubber, and installed with grid lining board or magnetic lining board to protect the frame and extend the service life.
After-sales service
LUOYANG ZHONGTAI INDUSTRIES able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
