Product Details:
Payment & Shipping Terms:
|
| Product Name: | Micro Powder Production System | Model: | HGM Series |
|---|---|---|---|
| Main Machine Motor Power: | 37 KW | Capacity: | 300-12000 Kg/h |
| Dimensions (L×W×H): | 10×2×5.5 M | Finish Finenes: | D97≤5μm |
| Classification: | Ore Grinding Mill | Warranty: | 12 Months |
| High Light: | HGM Series Ore Grinding Mill,300 Kg/H Micro Powder Production Systems,12000 Kg/H Micro Powder Production Systems |
||
Ore Grinding Mill Of HGM Series Micro Powder Production System
1. Performance characteristics of Ore Grinding Mill Of HGM Series Micro Powder Production System
(1) The micro grinding is efficient and low consumption. Under the same material, power and fineness of finished product, the output is 40% higher than that of air mill and agitation mill.
(2) The micro mill has a long service life. In the case of the same fineness of materials and finished products, the service life of wear parts is longer than that of impact crusher and turbine crusher, generally up to more than 1 year.
(3) There is no rolling bearing or screw in the grinding cavity. There is no bearing and its seals and fragile screws easily loose and destroy the machine and other problems
(4) The fineness of the ultrafine grinding product can reach D97 ≤5μm at one time
2. Product parameters of Ore Grinding Mill Of HGM Series Micro Powder Production System
| Model |
Grinding cavity diameter
(mm) |
Grinding wheel and roller table
|
Feeding size Max ( mm ) |
Finish finenes (Mesh) | Capacity (kg/h) |
Motor power(kw) | dimensions (L×W×H) (m) |
Weight t(kg) | ||||
| Roll QTY | QTY of grinder roll | QTY of roller table |
Main machine |
particle size um | Mesh | Main machine | powder concentrator | air blower | ||||
| HGM60 | 600 | 15 | 3 | ≤10 | 5-45 | 3250-300 | 350-2500 | 37 | 11 | 30 | 10×2×5.5 | 5900 |
| HGM80 | 800 | 21 | 3 | ≤10 | 5-45 | 3250-300 | 600-4000 | 55 | 18.5 | 45 | 11.9×2.7 ×5.8 | 7800 |
| HGM100 | 1000 | 27 | 3 | ≤10 | 5-45 | 3250-300 | 900-6000 | 90 | 30 | 75 | 14.5×3.8 ×6.3 | 10500 |
| HGM1280 | 1280 | 44 | 4 | ≤10 | 5-45 | 3250-300 | 1200-8000 | 132 | 45 | 90 | 17.5×4.5 ×7.5 | 15000 |
3. Working principle of Ore Grinding Mill Of HGM Series Micro Powder Production System

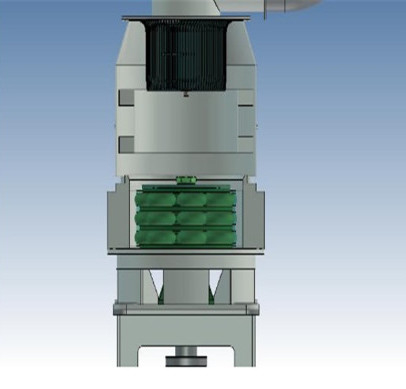

(1)The motor of the micro grinding machine drives the spindle and the turntable of each layer to rotate through the reducer, and the turntable drives dozens of ring rollers to roll and rotate freely in the raceway of the grinding ring through the pin.
(2)Large pieces of material by the hammer crusher broken into small particles into the storage bin by elevator, electromagnetic vibrating feeder will material evenly to the centre of the wheel, on the material under the action of centrifugal force to circle around, and fall into the inside of the ring raceway is stamping ring rolling, roll grinding, grinding and crushing, the material after the first layer crushing and fall into the second and third layer, Small particles of material after thousands of times of impact, rolling and rubbing into ultrafine powder, in the high pressure centrifugal fan suction action will be external air inhalation machine, and the third layer of pulverized coarse powder into the powder separator.
(3)The eddy current generated by the rotating turbine in the powder separator makes the coarse granular materials fall back and reground. The fine powder enters the cyclone powder collector with the airflow and is discharged from the discharge valve at the bottom of the cyclone powder collector, which is the finished product. The airflow with a small amount of fine dust is purified by the pulse dust collector and discharged through the fan and muffler.

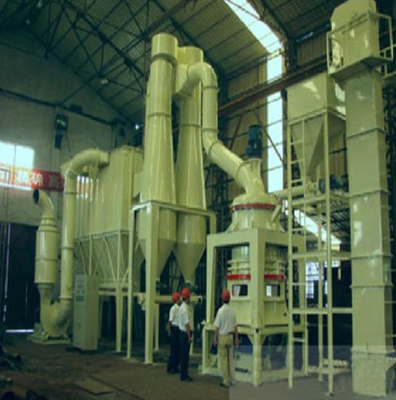

Ore Grinding Mill Of HGM Series Micro Powder Production System
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
