Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Model: | Coal Water Slurry Rod Mill |
|---|---|---|---|
| Type: | Rod Mill | Usage: | Artificial Stone Sand, Mineral Processing, Chemical, Electric Power |
| SPEC: | φ1.5x3.0～φ3.5x5.8m | Maximum Effective Volume: | 77.6m³ |
| Materials: | Cement Clinker, Limestone, Bauxite | Warranty: | 12 Month |
| Classification: | Ore Grinding Mill | ||
| High Light: | Durable Rod Mill Machine,Rod Mill Machine For Coal,Water Slurry Rod Mill Machine |
||

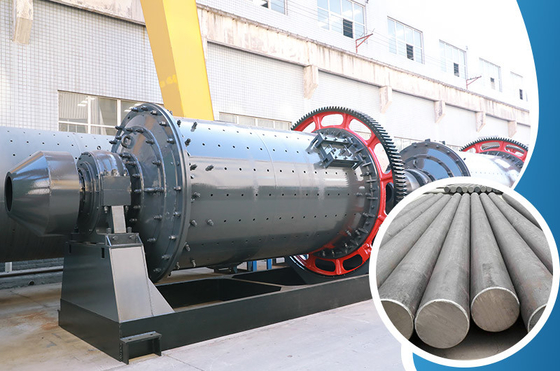

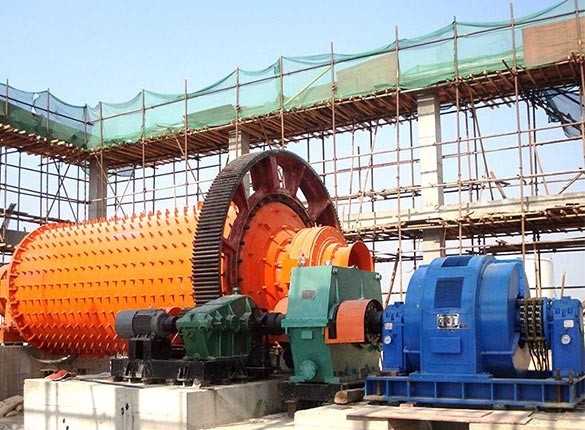

Durable Rod Mill Of Ore Grinding Mill For Coal Water Slurry Equipment
1. Rod mill type specifications and models:
(1) Rod mill: specifications from φ1.5x3.0 ~ φ3.5x5.8m, effective volume of 4.6 ~ 60.7m3 of various configurations of a variety of specifications;
(2) Coal water slurry rod mill: used for chemical industry Texaco gas production of coal water slurry preparation. Specifications from φ3.2x4.5 ~ φ4.0x6.7m, the maximum effective volume is 77.6m3 of various configurations of a variety of specifications;
2. Development design rod mill technical characteristics are:
(1) Cylinder mill adopts the transmission form of edge flyers, center transmission, multi-point meshing edge transmission and other transmission types; The driving form is asynchronous motor + reducer + pinion + big gear and synchronous motor + air clutch + pinion + big gear;
(2) The general use of two static and dynamic pressure bearing support mode, the use of fully enclosed self-alcolating 1200 line contact 'rocker type' bearings, can also use single sliding track, double sliding track static and dynamic pressure support or full static pressure support;
(3) Large open gear adopts American AGMA standard design, equipped with a reliable sealing gear housing, with automatic spray lubrication device glycerin;
(4) Cylinder is the key part of the mill. Finite element analysis is carried out by computer to ensure the reliability of its use.
(5) Large and medium-sized mill equipped with slow driving device;
(6) Large and medium-sized mill equipped with high and low pressure lubrication station;
(7) Control and protection system adopts PLC control.
3. Product parameters OF Durable Rod Mill Of Ore Grinding Mill For Coal Water Slurry Equipment
Technical parameters of ore rod mill:
| Type | Cylinder diameter (mm) |
Cylinder length (mm) |
Effective volume (m3) |
Mill speed (r/min) |
Load of grinding media(t) | Driving Method | Motor | Dimensions (L×W×H) (m) |
Approx weight (t) |
Note | |
| Power (kW) |
Rev (r/min) | ||||||||||
| MB15×30 | 1500 | 3000 | 5 | 23 | 8 | Edge | 75 | 743 | 7.6×3.4×2.8 | 20 | |
| MB17×30 | 1700 | 3000 | 5.8 | 20 | 10.2 | 90 | 980 | 7.6×3.5×3.1 | 40.4 | ||
| MB21×30 | 2100 | 3000 | 8.8 | 19.4 | 25 | 220 | 735 | 8.7×4.8×4.4 | 48 | ||
| MB21×36 | 2100 | 3600 | 10.8 | 21 | 28 | 220 | 735 | 9.5×4×4.7 | 52.5 | ||
| MB24×30 | 2400 | 3000 | 11.8 | 18.2 | 27 | 250 | 735 | 8.5×4.2×4.6 | 58 | ||
| MB27×36 | 2700 | 3600 | 18.8 | 17.5 | 42 | 400 | 187 | 12×5.7×4.7 | 70 | ||
| MB30×40 | 3000 | 4000 | 25.9 | 16.2 | 50 | 500 | 187 | 12.6×6.1×4.9 | 89 | ||
| MB32×45 | 3200 | 4500 | 33 | 15.5 | 56 | 630 | 167 | 16×8×5.6 | 111.5 |
Can be used in coal water slurry equipment
|
|
| MB32×48 | 3200 | 4800 | 34 | 15.5 | 60 | 710 | 740 | 12×7×6 | 121.2 | ||
| MB36×54 | 3600 | 5400 | 50 | 14.5 | 97 | 1000 | 167 | 16×8×6.7 | 155 | ||
| MB38×52 | 3800 | 4200 | 54.1 | 14.2 | 102 | 1120 | 992 | 15×8.27×6.21 | 175 | ||
| MB38×58 | 3800 | 5800 | 60.3 | 14.2 | 112.2 | 1250 | 167 | 15.6×8.27×7.21 | 156 | Rubber lining | |
| MB40×60 | 4000 | 6000 | 70 | 14.0 | 130 | 1400 | 200 | 18.2×9.00×7.5 | 163 | Rubber lining | |
