MB Serise Ore Grinding Mill Dry Grinding And Wet Grinding Rod Mill machine

MB Serise Dry Grinding And Wet Grinding Rod Mill Of Ore Grinding Mill

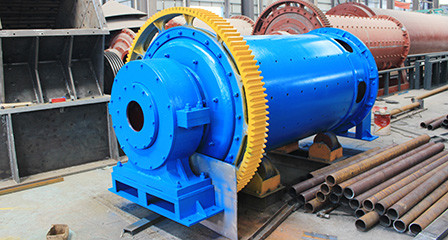

1. Product description of dry grinding and wet grinding rod mill of ore grinding mill

Our company can produce rod mill with diameter below 8M. Rod mill can be used in artificial stone sand, mineral processing, chemical, electric power and other industries of the first grinding.

Φ 3.2 by 4.8 m

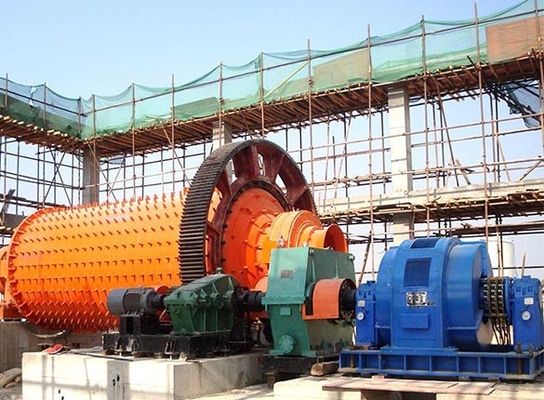

ф4.3 × 6M rod mill unit is a large rod mill developed, which marks a new height in the field of design of large rod mill.

The 4.3× 6M rod mill unit is a large rod mill in the rod mill industry in China, and is also the largest type of rod mill applied in the coal chemical and water slurry industry. Modern design means such as computer-aided design, finite element analysis and optimization design are effectively used in the design of the complete equipment of the rod mill unit. Or the structural design of each component makes the performance of the product more excellent.

Based on the coal gasification project, accelerate the follow-up project φ4.7 × 6M rod mill (wet) market development and promotion efforts.

Rod mill is a series of large mill products.

2. Product parameters of dry grinding and wet grinding rod mill of ore grinding mill

3. The technical characteristics of the rod mill development and design are:

(1) The transmission forms of drum mill are edge leaflet, center transmission, multi-point meshing edge transmission and other transmission types; Drive form of induction motor + reducer + pinion + big gear and synchronous motor + air clutch + pinion + big gear;

(2) Generally, the support mode of two-terminal static and dynamic pressure bearing is adopted, and the fully enclosed self-aligning 1200 line contact 'rocker type' bearing is adopted. The static and dynamic pressure support mode of single sliding shoe, double sliding shoe or full static pressure support can also be adopted.

(3) Large open gear adopts American AGMA standard design, equipped with a reliable sealing gear cover, equipped with glycerin automatic spray lubrication device;

4. Rod mill specifications and models:

(1) Rod mill: specifications from φ1.5x3.0 ~ φ3.5x5.8m, effective volume of 4.6 ~ 60.7m3 of various configurations of a variety of specifications;

(2) Coal water slurry rod mill: used for the preparation of coal water slurry for Texaco gas production in the chemical industry. Specifications range from φ3.2x4.5 to φ4.0x6.7m, with a maximum effective volume of 77.6m3;
