Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Product Name: | Rod Mill |
|---|---|---|---|
| Approx Weight: | 20 T | Type: | MB15×30 Rod Mill |
| Suitable: | Artificial Stone Sand, Mineral Processing, Chemical, Electric Power | Dimensions (L×W×H): | 7.6×3.4×2.8 M |
| Maximum Effective Volume: | 77.6m³ | Warranty: | 12 Months |
| Classification: | Ore Grinding Mill | ||
| High Light: | Coal Water Slurry Rod Mill,Primary Slurry Rod Mill,Ore Grinding Slurry Rod Mill |
||

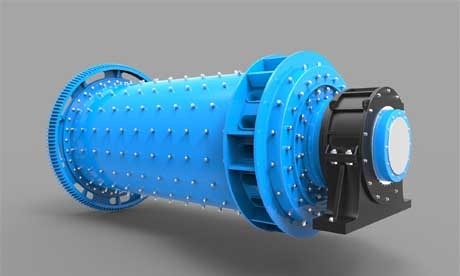

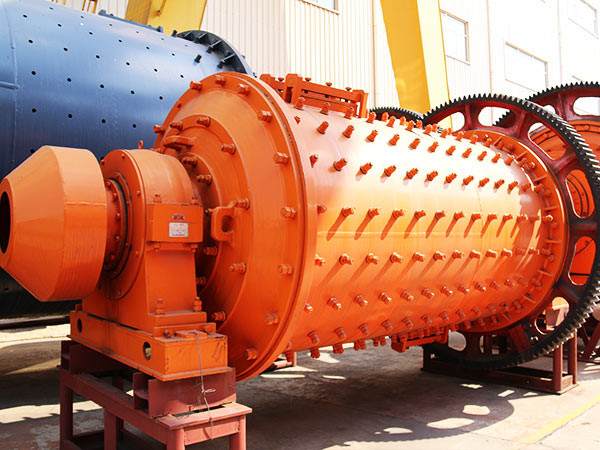

Ore Grinding Mill Coal Water Slurry Rod Mill Used For Primary Ore Grinding
1. Product description of Ore Grinding Mill
Our company can produce rod mill with diameter below 8M. Rod mill can be used in artificial stone sand, mineral processing, chemical, electric power and other industries of the first grinding.
Φ 3.2 by 4.8 m
ф4.3 × 6M rod mill unit is a large rod mill developed, which marks a new height in the field of design of large rod mill.
The 4.3× 6M rod mill unit is a large rod mill in the rod mill industry in China, and is also the largest type of rod mill applied in the coal chemical and water slurry industry. Modern design means such as computer-aided design, finite element analysis and optimization design are effectively used in the design of the complete equipment of the rod mill unit. Or the structural design of each component makes the performance of the product more excellent.
Based on the coal gasification project, accelerate the follow-up project φ4.7 × 6M rod mill (wet) market development and promotion efforts.
Bar mill is a series of large mill products.
2. Rod mill specifications and models:
(1) Rod mill: specifications from φ1.5x3.0 ~ φ3.5x5.8m, effective volume of 4.6 ~ 60.7m3 of various configurations of a variety of specifications;
(2) Coal water slurry rod mill: used for the preparation of coal water slurry for Texaco gas production in the chemical industry. Specifications range from φ3.2x4.5 to φ4.0x6.7m, with a maximum effective volume of 77.6m3;
3. Product parameters of Ore Grinding Mill Coal Water Slurry Rod Mill
| Type | Cylinder diameter (mm) |
Cylinder length (mm) |
Effective volume (m3) |
Mill speed (r/min) |
Load of grinding media(t) | Driving Method | Motor | Dimensions (L×W×H) (m) |
Approx weight (t) |
Note | |
| Power (kW) |
Rev (r/min) | ||||||||||
| MB15×30 | 1500 | 3000 | 5 | 23 | 8 | Edge | 75 | 743 | 7.6×3.4×2.8 | 20 | |
| MB17×30 | 1700 | 3000 | 5.8 | 20 | 10.2 | 90 | 980 | 7.6×3.5×3.1 | 40.4 | ||
| MB21×30 | 2100 | 3000 | 8.8 | 19.4 | 25 | 220 | 735 | 8.7×4.8×4.4 | 48 | ||
| MB21×36 | 2100 | 3600 | 10.8 | 21 | 28 | 220 | 735 | 9.5×4×4.7 | 52.5 | ||
| MB24×30 | 2400 | 3000 | 11.8 | 18.2 | 27 | 250 | 735 | 8.5×4.2×4.6 | 58 | ||
| MB27×36 | 2700 | 3600 | 18.8 | 17.5 | 42 | 400 | 187 | 12×5.7×4.7 | 70 | ||
| MB30×40 | 3000 | 4000 | 25.9 | 16.2 | 50 | 500 | 187 | 12.6×6.1×4.9 | 89 | ||
| MB32×45 | 3200 | 4500 | 33 | 15.5 | 56 | 630 | 167 | 16×8×5.6 | 111.5 |
Can be used in coal water slurry equipment
|
|
| MB32×48 | 3200 | 4800 | 34 | 15.5 | 60 | 710 | 740 | 12×7×6 | 121.2 | ||
| MB36×54 | 3600 | 5400 | 50 | 14.5 | 97 | 1000 | 167 | 16×8×6.7 | 155 | ||
| MB38×52 | 3800 | 4200 | 54.1 | 14.2 | 102 | 1120 | 992 | 15×8.27×6.21 | 175 | ||
| MB38×58 | 3800 | 5800 | 60.3 | 14.2 | 112.2 | 1250 | 167 | 15.6×8.27×7.21 | 156 | Rubber lining | |
| MB40×60 | 4000 | 6000 | 70 | 14.0 | 130 | 1400 | 200 | 18.2×9.00×7.5 | 163 | Rubber lining | |
