Product Details:
Payment & Shipping Terms:
|
| Model: | Φ2.2×6.5 Cement Ball Mill | Drive Mode: | Edge,center |
|---|---|---|---|
| Device Weight: | 53 T | Material: | Cement, Silicate Products, New Building Materials |
| Main Motor Power: | 380 KW | Voltage: | 6000V |
| Classification: | Ore Grinding Mill | Warranty: | 12 Months |
| High Light: | 2.2×6.5m Cement Milling Machine,Mining Industry Cement Milling Machine,2.2×6.5m grinding mill cement |
||

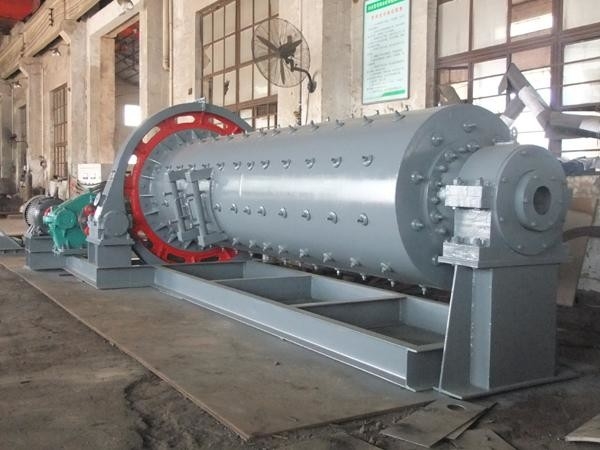

Φ2.2×6.5m Cement Ball Mill Of Ore Grinding Mill For Mining Industry
1. Working principle of Cement Ball Mill Ore Grinding Mill
This machine is cylindrical rotary device, external along the gear transmission, two bin, lattice ball mill. The material from the feeding device through the feeding hollow shaft spiral evenly into the first bin of the mill, the bin has stepped lining plate or corrugated lining plate, loaded with different specifications of steel balls, cylinder rotation produces centrifugal force will bring the steel ball to a certain height after falling, the material has a heavy blow and grinding effect.
After the material is roughed in the first warehouse, it enters the second warehouse through the single layer partition board. The warehouse is inlaid with flat lining board and steel ball, and the material is further grinded. The powder is discharged through the unloading grate to complete the grinding operation.
2. Product parameters of Cement Ball Mill Ore Grinding Mill
Cement mill | cement ball mill get technical indicator:
| No. | Spec (m) | Production (t/h) | Mill RPM (r/min) | feed size into mill mm | Load of grinding media (t) | Effective volume | Driving Mode | Main motor | Overall dimension | Device weight (T) | Note | |||
| Power (kw) | Voltage (V) | L | W | H | ||||||||||
| 1 | Φ2.2×6.5 | 13-14 | 22 | ＜25 | 31 | 21.4 | Edge | 380 | 6000 | 12385 | 5390 | 4210 | 53 | |
| 2 | Φ2.2×11 | 15-16 | 21 | ＜25 | 50 | 36 | Center | 630 | 6000 | 21559 | 4540 | 3520 | 109 | |
| 3 | Φ2.2×13 | 16-18 | 21.5 | ＜25 | 60 | 43 | 630 | 6000 | 26079 | 4540 | 3520 | 114.2 | ||
| 4 | Φ2.4×8 | 15 | 20.8 | ＜25 | 45 | 30 | Edge | 560 | 6000 | 17215 | 5564 | 4540 | 82.53 | |
| 5 | Φ2.4×13 | 20-23 | 19 | ＜25 | 65 | 51.7 | Center | 800 | 6000 | 27580 | 4540 | 3620 | 138 | |
| 6 | Φ2.6×13 | 30-32 | 19.6 | ＜25 | 80 | 60 | Edge | 1000 | 6000 | 20883 | 7740 | 5670 | 144.5 | |
| 7 | Φ3×9 | 28-32 | 17.8 | ＜25 | 70-80 | 55 | Center | 1000 | 6000 | 23568 | 4760 | 3670 | 138.7 | |
| 8 | Φ3×11 | 36-40 | 18.9 | ＜25 | 100 | 69 | 1250 | 6000 | 27610 | 5720 | 4080 | 181.9 | ||
| 9 | Φ3×11 | 36 | 17.69 | ＜25 | 100 | 69 | Edge | 1250 | 6000 | 24567 | 7510 | 5968 | 156.5 | |
| 10 | Φ3.2×11 | 40-45 | 17.4 | ＜15 | 90-100 | 78 | Center | 1250 | 6000 | 28000 | 5720 | 3672 | 180 | |
| 11 | Φ3.5×9.5 | 40 | 18 | ＜20 | 115 | 76.4 | 1400 | 6000 | 29717 | 5250 | 5000 | 194.4 | ||
| 12 | Φ3.5×11 | 45 | 17.2 | ＜15 | 116 | 78.5 | 1600 | 6000 | 28454 | 5350 | 5600 | 271.64 | ||
| 13 | Φ3.6×8.5 | 60 | 16.5 | ＜20 | 102 | 86 | 2500 | 6000 | 19693 | 4141 | 5404.5 | 233.3* | With roller press output | |
| 14 | Φ3.8×9 | 70-80 | 16.5 | ＜20 | 130 | 94 | 2000 | 6000 | 28521 | 5550 | 5600 | 255.2 | ||
| 15 | Φ3.8×12.5 | 55 | 16.4 | ＜25 | 167 | 123.5 | Edge | 2500 | 6000 | 17419 | 10745 | 8204 | 301.4 | |
| 16 | Φ3.8×13 | 60 | 16.3 | ＜25 | 173 | 128 | Center | 2500 | 6000 | 19693* | 4141* | 5404.5 | 223.3* | |
| 17 | Φ4.2×11 | 120 | 15.75 | ≤3 80% pass | 182 | 134.5 | 2800 | 18500 | 4400 | 6500 | 256** | With roller press and O-Sepa | ||
| 18 | Φ4.2×11.5 | 130 | 15.99 | ≤3 80% pass | 199 | 138 | Single side double drive | 2800 | 10000 | 18002 | 8962 | 7520 | 219** | With roller press |
| 19 | Φ4.2×11.5 | 130 | 16 | ≤3 80% pass | 199 | 138 | Center | 2800 | 17259 | 4960 | 5600 | 220** | With roller press | |
| 20 | Φ4.2×12.5 | 85 | 16 | ≤25 90% | 210 | 151 | 3150 | 18400 | 4960 | 8640 | 251** | with efficient powder separator | ||
| 21 | Φ4.2×12.5 | 145 | 16 | ≤3 80% | 210 | 151 | 3150 | 18400 | 4960 | 8640 | 242** | With roller press | ||
| 22 | Φ4.2×13 | 75 | 15.6 | ≤25 90% | 209 | 157 | Edge | 3150 | 174450 | 4880 | 8000 | 255** | with efficient powder separator | |
| 23 | Φ4.2×13 | 150 | 15.6 | ≤3 80% | 209 | 157 | Center | 3150 | 17445 | 4880 | 8000 | 256** | With roller press and O-Sepa | |
| 24 | Φ4.2×13.5 | 80-85 | 15.8 | ≤25 90% | 230 | 164 | 3550 | 17744 | 6700 | 6010 | 256** | |||
| 25 | Φ4.2×14 | 95 | 15.6 | ≤25 90% | 252 | 169 | 3550 | 19055 | 20490 | 23200 | 220** | |||
| 26 | Φ4.2×14.5 | 95 | 15.8 | ≤25 80% | 250 | 178 | 4000 | 5050 | 6700 | 11054 | 278** | |||
| 27 | Φ4.6×14 | 95-110 | 15 | 285 | 185 | Edge | 4200 | 6000 | 23200 | 11054 | 6370 | 310** | ||
