Product Details:
Payment & Shipping Terms:
|
Condition: | New | Model: | Φ2.2×11 Cement Ball Mill |
---|---|---|---|
Drive Mode: | Edge,center | Production(T/H): | 15-16 |
Motor Power(KW): | 630 | Voltage(V): | 6000 |
Classification: | Ore Grinding Mill | Warranty: | 12 Months |
High Light: | 6000V Cement Grinding Mill,16 TPH Cement Grinding Mill,15 TPH Cement Grinding Mill |

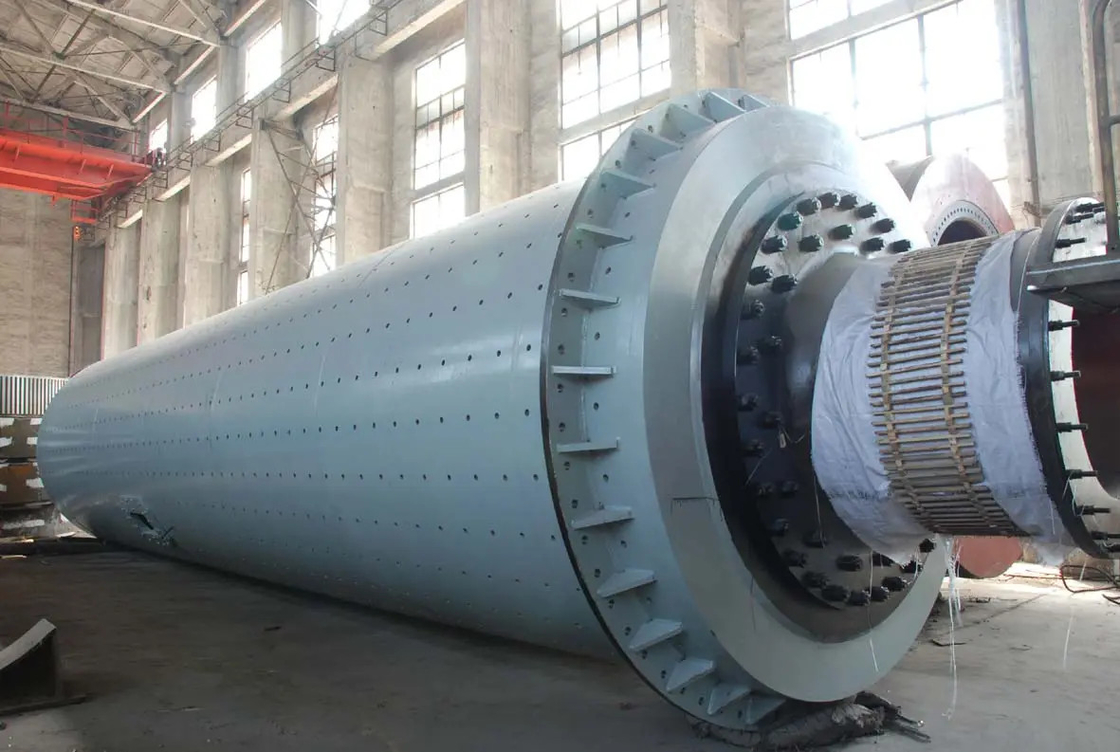

Ore Grinding Mill 6000V Cement Ball Mill Cement Mill For Mining
1. The technical characteristics of large cement mill ore grinding mill
(1) The transmission forms of the drum mill are edge flyers, center transmission, multi-point meshing edge transmission and other transmission types; The driving form is asynchronous motor + reducer + pinion + big gear and synchronous motor + air clutch + pinion + big gear;
(2) The support mode of static and dynamic pressure bearings at two ends is generally adopted, and fully enclosed self-allocating 1200 line contact "rocker type" bearings are adopted. Single-slide track, double-slide track static and dynamic pressure support mode or full static pressure support can also be adopted.
(3) The large open gear adopts the American AGMA standard design, equipped with a reliable sealing gear housing, with glycerin automatic spray lubrication device;

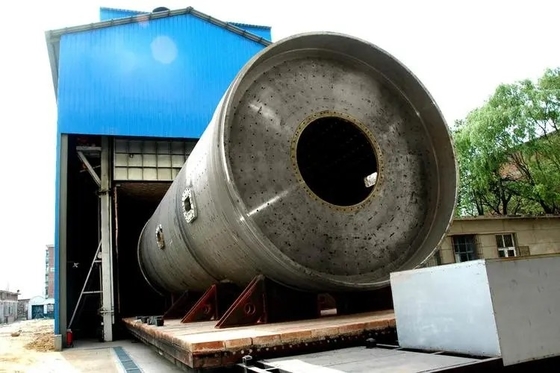

(4) The cylinder is the key part of the mill, and the finite element analysis of it is carried out by computer to ensure the reliability of its use;
(5) Large and medium-sized mill equipped with slow driving device;
(6) Large and medium-sized mills are equipped with high and low pressure lubrication stations;
(7) Control and protection system adopts PLC control.
2. Product parameters of ore grinding mill Cement mill | cement ball mill
No. | Spec (m) | Production (t/h) | Mill RPM (r/min) | feed size into mill mm | Load of grinding media (t) | Effective volume | Driving Mode | Main motor | Overall dimension | Device weight (T) | Note | |||
Power (kw) | Voltage (V) | L | W | H | ||||||||||
1 | Φ2.2×6.5 | 13-14 | 22 | <25 | 31 | 21.4 | Edge | 380 | 6000 | 12385 | 5390 | 4210 | 53 | |
2 | Φ2.2×11 | 15-16 | 21 | <25 | 50 | 36 | Center | 630 | 6000 | 21559 | 4540 | 3520 | 109 | |
3 | Φ2.2×13 | 16-18 | 21.5 | <25 | 60 | 43 | 630 | 6000 | 26079 | 4540 | 3520 | 114.2 | ||
4 | Φ2.4×8 | 15 | 20.8 | <25 | 45 | 30 | Edge | 560 | 6000 | 17215 | 5564 | 4540 | 82.53 | |
5 | Φ2.4×13 | 20-23 | 19 | <25 | 65 | 51.7 | Center | 800 | 6000 | 27580 | 4540 | 3620 | 138 | |
6 | Φ2.6×13 | 30-32 | 19.6 | <25 | 80 | 60 | Edge | 1000 | 6000 | 20883 | 7740 | 5670 | 144.5 | |
7 | Φ3×9 | 28-32 | 17.8 | <25 | 70-80 | 55 | Center | 1000 | 6000 | 23568 | 4760 | 3670 | 138.7 | |
8 | Φ3×11 | 36-40 | 18.9 | <25 | 100 | 69 | 1250 | 6000 | 27610 | 5720 | 4080 | 181.9 | ||
9 | Φ3×11 | 36 | 17.69 | <25 | 100 | 69 | Edge | 1250 | 6000 | 24567 | 7510 | 5968 | 156.5 | |
10 | Φ3.2×11 | 40-45 | 17.4 | <15 | 90-100 | 78 | Center | 1250 | 6000 | 28000 | 5720 | 3672 | 180 | |
11 | Φ3.5×9.5 | 40 | 18 | <20 | 115 | 76.4 | 1400 | 6000 | 29717 | 5250 | 5000 | 194.4 | ||
12 | Φ3.5×11 | 45 | 17.2 | <15 | 116 | 78.5 | 1600 | 6000 | 28454 | 5350 | 5600 | 271.64 | ||
13 | Φ3.6×8.5 | 60 | 16.5 | <20 | 102 | 86 | 2500 | 6000 | 19693 | 4141 | 5404.5 | 233.3* | With roller press output | |
14 | Φ3.8×9 | 70-80 | 16.5 | <20 | 130 | 94 | 2000 | 6000 | 28521 | 5550 | 5600 | 255.2 | ||
15 | Φ3.8×12.5 | 55 | 16.4 | <25 | 167 | 123.5 | Edge | 2500 | 6000 | 17419 | 10745 | 8204 | 301.4 | |
16 | Φ3.8×13 | 60 | 16.3 | <25 | 173 | 128 | Center | 2500 | 6000 | 19693* | 4141* | 5404.5 | 223.3* | |
17 | Φ4.2×11 | 120 | 15.75 | ≤3 80% pass | 182 | 134.5 | 2800 | 18500 | 4400 | 6500 | 256** | With roller press and O-Sepa | ||
18 | Φ4.2×11.5 | 130 | 15.99 | ≤3 80% pass | 199 | 138 | Single side double drive | 2800 | 10000 | 18002 | 8962 | 7520 | 219** | With roller press |
19 | Φ4.2×11.5 | 130 | 16 | ≤3 80% pass | 199 | 138 | Center | 2800 | 17259 | 4960 | 5600 | 220** | With roller press | |
20 | Φ4.2×12.5 | 85 | 16 | ≤25 90% | 210 | 151 | 3150 | 18400 | 4960 | 8640 | 251** | with efficient powder separator | ||
21 | Φ4.2×12.5 | 145 | 16 | ≤3 80% | 210 | 151 | 3150 | 18400 | 4960 | 8640 | 242** | With roller press | ||
22 | Φ4.2×13 | 75 | 15.6 | ≤25 90% | 209 | 157 | Edge | 3150 | 174450 | 4880 | 8000 | 255** | with efficient powder separator | |
23 | Φ4.2×13 | 150 | 15.6 | ≤3 80% | 209 | 157 | Center | 3150 | 17445 | 4880 | 8000 | 256** | With roller press and O-Sepa | |
24 | Φ4.2×13.5 | 80-85 | 15.8 | ≤25 90% | 230 | 164 | 3550 | 17744 | 6700 | 6010 | 256** | |||
25 | Φ4.2×14 | 95 | 15.6 | ≤25 90% | 252 | 169 | 3550 | 19055 | 20490 | 23200 | 220** | |||
26 | Φ4.2×14.5 | 95 | 15.8 | ≤25 80% | 250 | 178 | 4000 | 5050 | 6700 | 11054 | 278** | |||
27 | Φ4.6×14 | 95-110 | 15 | 285 | 185 | Edge | 4200 | 6000 | 23200 | 11054 | 6370 | 310** |
