Condition: | New | Name: | Φ4.6×14 Cement Ball Mill |
---|---|---|---|
Drive Mode: | Edge,center | Effective Volume: | 185 T |
Classification: | Ore Grinding Mill | Power: | 4200 KW |
Voltage: | 6000V | Load Of Grinding Media: | 285 T |
Warranty: | 12 Months | ||
High Light: | Large Power Ore Grinding Mill,Large Power Cement Mill Grinding Ball,4.6×14 Cement Mill Grinding Ball |

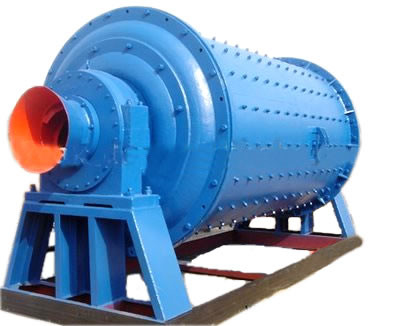

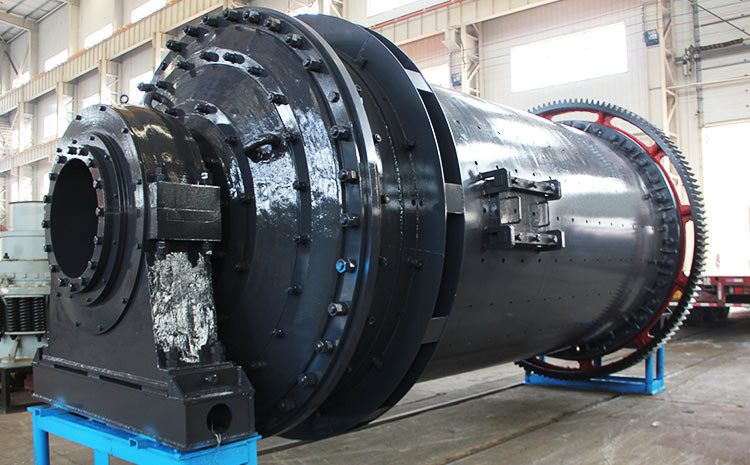

Large Power Cement Mill And Cement Ball Mill Of Ore Grinding Mill
1. Product introduction of Cement Mill Cement Ball Mill Ore Grinding Mill
Cement mill - cement ball mill is completed in 2003 domestic ten thousand tons of cement production line host equipment, is the material is broken, and then the key equipment for crushing. Ball mill is widely used in cement, silicate products, new building materials, refractory materials, chemical fertilizers, black and non-ferrous metal dressing and glass ceramics and other production industries, dry or wet grinding of all kinds of ores and other grindable materials.
2. The technical characteristics of large cement mill Ore Grinding Mill:
(1) The transmission forms of the drum mill are edge flyers, center transmission, multi-point meshing edge transmission and other transmission types; The driving form is asynchronous motor + reducer + pinion + big gear and synchronous motor + air clutch + pinion + big gear;
(2) The support mode of static and dynamic pressure bearings at two ends is generally adopted, and fully enclosed self-allocating 1200 line contact "rocker type" bearings are adopted. Single-slide track, double-slide track static and dynamic pressure support mode or full static pressure support can also be adopted.
(3) The large open gear adopts the American AGMA standard design, equipped with a reliable sealing gear housing, with glycerin automatic spray lubrication device;
(4) The cylinder is the key part of the mill, and the finite element analysis of it is carried out by computer to ensure the reliability of its use;
(5) Large and medium-sized mill equipped with slow driving device;
(6) Large and medium-sized mills are equipped with high and low pressure lubrication stations;
(7) Control and protection system adopts PLC control.
3. Product parameters of cement mill | cement ball mill :
No. | Spec (m) | Production (t/h) | Mill RPM (r/min) | feed size into mill mm | Load of grinding media (t) | Effective volume | Driving Mode | Main motor | Overall dimension | Device weight (T) | Note | |||
Power (kw) | Voltage (V) | L | W | H | ||||||||||
1 | Φ2.2×6.5 | 13-14 | 22 | <25 | 31 | 21.4 | Edge | 380 | 6000 | 12385 | 5390 | 4210 | 53 | |
2 | Φ2.2×11 | 15-16 | 21 | <25 | 50 | 36 | Center | 630 | 6000 | 21559 | 4540 | 3520 | 109 | |
3 | Φ2.2×13 | 16-18 | 21.5 | <25 | 60 | 43 | 630 | 6000 | 26079 | 4540 | 3520 | 114.2 | ||
4 | Φ2.4×8 | 15 | 20.8 | <25 | 45 | 30 | Edge | 560 | 6000 | 17215 | 5564 | 4540 | 82.53 | |
5 | Φ2.4×13 | 20-23 | 19 | <25 | 65 | 51.7 | Center | 800 | 6000 | 27580 | 4540 | 3620 | 138 | |
6 | Φ2.6×13 | 30-32 | 19.6 | <25 | 80 | 60 | Edge | 1000 | 6000 | 20883 | 7740 | 5670 | 144.5 | |
7 | Φ3×9 | 28-32 | 17.8 | <25 | 70-80 | 55 | Center | 1000 | 6000 | 23568 | 4760 | 3670 | 138.7 | |
8 | Φ3×11 | 36-40 | 18.9 | <25 | 100 | 69 | 1250 | 6000 | 27610 | 5720 | 4080 | 181.9 | ||
9 | Φ3×11 | 36 | 17.69 | <25 | 100 | 69 | Edge | 1250 | 6000 | 24567 | 7510 | 5968 | 156.5 | |
10 | Φ3.2×11 | 40-45 | 17.4 | <15 | 90-100 | 78 | Center | 1250 | 6000 | 28000 | 5720 | 3672 | 180 | |
11 | Φ3.5×9.5 | 40 | 18 | <20 | 115 | 76.4 | 1400 | 6000 | 29717 | 5250 | 5000 | 194.4 | ||
12 | Φ3.5×11 | 45 | 17.2 | <15 | 116 | 78.5 | 1600 | 6000 | 28454 | 5350 | 5600 | 271.64 | ||
13 | Φ3.6×8.5 | 60 | 16.5 | <20 | 102 | 86 | 2500 | 6000 | 19693 | 4141 | 5404.5 | 233.3* | With roller press output | |
14 | Φ3.8×9 | 70-80 | 16.5 | <20 | 130 | 94 | 2000 | 6000 | 28521 | 5550 | 5600 | 255.2 | ||
15 | Φ3.8×12.5 | 55 | 16.4 | <25 | 167 | 123.5 | Edge | 2500 | 6000 | 17419 | 10745 | 8204 | 301.4 | |
16 | Φ3.8×13 | 60 | 16.3 | <25 | 173 | 128 | Center | 2500 | 6000 | 19693* | 4141* | 5404.5 | 223.3* | |
17 | Φ4.2×11 | 120 | 15.75 | ≤3 80% pass | 182 | 134.5 | 2800 | 18500 | 4400 | 6500 | 256** | With roller press and O-Sepa | ||
18 | Φ4.2×11.5 | 130 | 15.99 | ≤3 80% pass | 199 | 138 | Single side double drive | 2800 | 10000 | 18002 | 8962 | 7520 | 219** | With roller press |
19 | Φ4.2×11.5 | 130 | 16 | ≤3 80% pass | 199 | 138 | Center | 2800 | 17259 | 4960 | 5600 | 220** | With roller press | |
20 | Φ4.2×12.5 | 85 | 16 | ≤25 90% | 210 | 151 | 3150 | 18400 | 4960 | 8640 | 251** | with efficient powder separator | ||
21 | Φ4.2×12.5 | 145 | 16 | ≤3 80% | 210 | 151 | 3150 | 18400 | 4960 | 8640 | 242** | With roller press | ||
22 | Φ4.2×13 | 75 | 15.6 | ≤25 90% | 209 | 157 | Edge | 3150 | 174450 | 4880 | 8000 | 255** | with efficient powder separator | |
23 | Φ4.2×13 | 150 | 15.6 | ≤3 80% | 209 | 157 | Center | 3150 | 17445 | 4880 | 8000 | 256** | With roller press and O-Sepa | |
24 | Φ4.2×13.5 | 80-85 | 15.8 | ≤25 90% | 230 | 164 | 3550 | 17744 | 6700 | 6010 | 256** | |||
25 | Φ4.2×14 | 95 | 15.6 | ≤25 90% | 252 | 169 | 3550 | 19055 | 20490 | 23200 | 220** | |||
26 | Φ4.2×14.5 | 95 | 15.8 | ≤25 80% | 250 | 178 | 4000 | 5050 | 6700 | 11054 | 278** | |||
27 | Φ4.6×14 | 95-110 | 15 | 285 | 185 | Edge | 4200 | 6000 | 23200 | 11054 | 6370 | 310** |
