| Condition: | New | Model: | Mine Ball Mill |
|---|---|---|---|
| Product Name: | MQS Series Ball Mill | Type: | MQY15×30 |
| REV: | 742 R/min | Power: | 95 Kw |
| Classification: | Ore Grinding Mill | Warranty: | 12 Months |
| High Light: | MQY Ore Grinding Mill,15×30 Mineral Ball Mill,MQY Mineral Ball Mill |
||

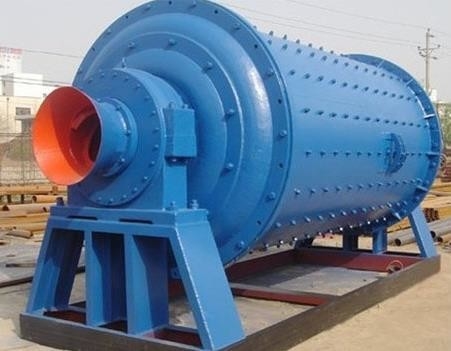

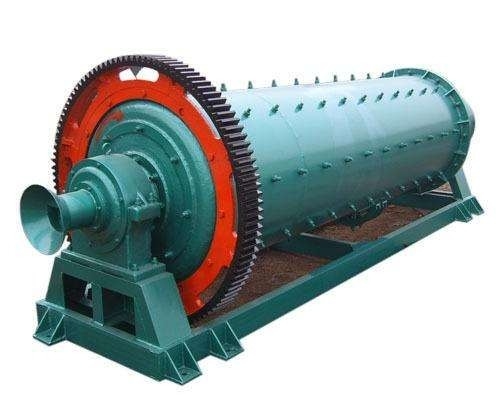

MQY Series Ball Mill Mineral Processing Ball Mill Of Ore Grinding Mill
1. Luo mine ball mill of Ore Grinding Mill specifications and models are as follows:
(1) Overflow type ball mill: specifications from φ1.5x3.0 ~ φ8x13m, effective volume 7.5 ~ 194.3m3 of various configurations of a variety of specifications;
(2) Lattice ball mill: specifications from φ1.2x2.4 ~ φ4x14m, the effective volume is 2.2 ~ 157m3 of various configurations of a variety of specifications;
2. Typical products of ball mill of Ore Grinding Mill
In 1992, we cooperated with Fuller company to manufacture A ф 5.5×8.5m overflow ball mill; In 1993, manufactured a ф 5.03×6.4m export ball mill; Developed a ф 4.27×6.1m export large mining mill in 2001; In 2004, we cooperated with to manufacture the largest semi-autogenous mill with φ 8.53×3.96. In August 2005, contracted a ф 5.5×8.5m overflow ball mill for Jinchuan Group. In May 2006, it was contracted to manufacture φ 5.49×8.8m overflow ball mill for Angang Group. In 2006, the company cooperated with manufacture the Dahongshan φ 8.54×3.6m self-grinding mill of Kunming Iron and Steel. In July 2006, it was contracted to manufacture φ 8.0 ×2.8 m autogenous mill for Ling Steel Group.
3. Product parameters of ball mill of Ore Grinding Mill
Technical performance table of Luo Mine overflow ball mill
| Model | Cylinder diameter | Cylinder length | Effective volume | Rotate speed | Load of grinding media | Drive mode | Motor |
Dimension (L×W×H) |
Approx weight | Note | |
| Power | Rev | ||||||||||
| mm | mm | m3 | r/min | t | kw | r/min | m | t | |||
| MQY15×30 | 1500 | 3000 | 5 | 26.6 | 9 | Edge | 95 | 742 | 7.4×3.4×2.8 | 18.5 |
Drum feeder |
| MQY15×36 | 1500 | 3600 | 5.7 | 26.6 | 10.6 | 95 | 742 | 8.0×3.4×2.8 | 17.22 | Rubber lining | |
| MQY18×61 | 1830 | 6100 | 13.4 | 24.5 | 24.6 | ‥ | 220 | 736 | 10.2×5.1×4.0 | 37.3 | |
| MQY21×30 | 2100 | 3000 | 9.4 | 22.1 | 15 | ‥ | 200 | 740 | 8.5×4.65×3 | 45 | |
| MQY24×30 | 2400 | 3000 | 12.2 | 21 | 22.5 | ‥ | 250 | 980 | 8.8×4.7×4.4 | 55 | |
4. The technical characteristics of ball mill of Ore Grinding Mill:
(1) Cylinder mill adopts the transmission form of edge flyers, center transmission, multi-point meshing edge transmission and other transmission types; The driving form is asynchronous motor + reducer + pinion + big gear and synchronous motor + air clutch + pinion + big gear;
(2) The general use of two static and dynamic pressure bearing support mode, the use of fully enclosed self-alcolating 1200 line contact 'rocker type' bearings, can also use single sliding track, double sliding track static and dynamic pressure support or full static pressure support;
(3) Large open gear adopts American AGMA standard design, equipped with a reliable sealing gear housing, with automatic spray lubrication device glycerin;
(4) Cylinder is the key part of the mill. Finite element analysis is carried out by computer to ensure the reliability of its use.
(5) Large and medium-sized mill equipped with slow driving device;
(6) Large and medium-sized mill equipped with high and low pressure lubrication station;
(7) Control and protection system adopts PLC control.
