Product Details:
Payment & Shipping Terms:
|
| Name: | Tube Grinding Mill | Feed Size: | ≤25mm |
|---|---|---|---|
| Production Capacity: | 14-18 T/h | Main Motor Power: | 570-4200 Kw |
| Drive Mode: | Edge,center | SPEC(diameter × Length): | φ2.4×8 |
| Warranty: | 12 Months | Classification: | Ore Grinding Mill |
| High Light: | Large Capacity Ore Grinding Mill,Large Capacity Tube Mill Machine,18 t/h Tube Mill Machine |
||

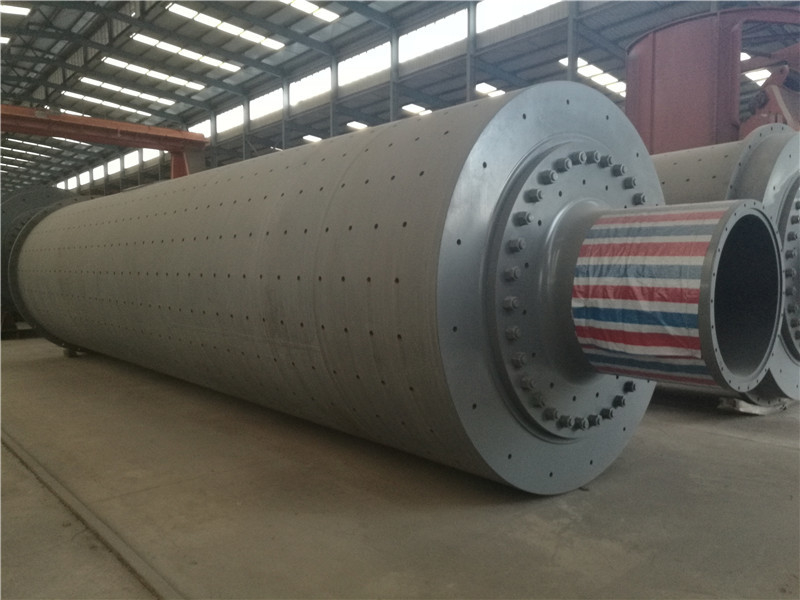

Large Production Capacity Tube Grinding Mill Of Ore Grinding Mill
1. Introduction of Tube Grinding Mill Of Ore Grinding Mill
Tube Grinding Mill is a very important fine mill equipment in modern industry. The production capacity of large Tube Grinding Mill is very high. Tube Grinding Mill is widely used for grinding cement and other materials in building materials, metallurgy, mineral processing, electric power and chemical industry. The Tube Grinding Mill has the characteristics of large crushing ratio, large production capacity, strong adaptability to materials and easy replacement of worn parts.
The tube mill is designed in the advantages and disadvantages of the open-flow grinding system. It has made a significant improvement on the traditional ball mill. In addition to all the advantages of open-flow grinding, compared with the ball mill of the same specification, the mill output has been greatly improved, and the powder is fine, the specific surface area is increased, to achieve high yield, high fine. It provides a new type of grinding equipment for producing high grade cement.
The tube mill of Luo mine adjusts the material level of each bin, increases the ventilation volume and improves the conditions inside the mill by its unique combination of bin separator and discharge separator. At the same time, the new liner is used to adjust the speed of the mill, optimize the gear design and lubrication parameters of the bearing bush, increase the stability and service life of the mill, and improve the grinding efficiency.
Compared with the ball mill of the same specification, the output of the tube mill is increased by 20% and the power consumption per unit product is decreased by 10-12% under the condition that other parameters are unchanged. The specific surface area of cement can be up to 320m2/kg in open-flow grinding.
2. Advantages of Tube Grinding Mill Of Ore Grinding Mill:
(1) Strong adaptability to fluctuations of material physical properties (such as particle size, moisture, hardness, etc.), and large production capacity.
(2) The crushing ratio is large (generally more than 300, up to more than 1000 when ultra-fine grinding), the fineness of the product is fine, and the particle size is easy to adjust.
(3) can adapt to different conditions of the operation: dry operation, can also be wet operation, but also the drying and grinding two processes together at the same time; Open circuit milling, also can be closed circuit milling.
(4) Good sealing, negative pressure operation, no dust flying in the work site.
(5) It is convenient for large-scale production and can meet the needs of modern enterprises.
3. Product parameters of Ore Grinding Mill
Product parameters of tube mill Of Ore Grinding Mill
| SPEC(diameter × length) | Rev (r/min) |
Feed size(mm) | Production capacity(t/h) | Load of grinding media (t) |
Main motor | Main reducing gear | Weight (t) |
|||
| Type | power(kw) | Rev (r.p.m) | Type | speed ratio | ||||||
| φ2.2×11 | 20.91 | ≤25 | 15～17 | 50 | TR1512-8 | 570 | 740 | Zd80 | 5.6 | 92 |
| φ2.4×8 | 20.91 | ≤25 | 14～18 | 39.5～42 | TRQ1512-8 | 570 | 740 | Zd80-9 | 5 | 76.4 |
| φ2.4×9 | 20.91 | ≤25 | 23～25 | 50 | TR1512-8 | 570 | 740 | Zd80-9 | 5 | 91 |
| φ2.4×10 | 20.91 | ≤25 | 16～22 | 50 | TR1512-8 | 570 | 740 | Zd80-9 | 5 | 111 |
| φ2.4×11 | 21 | ≤25 | 19～24 22～28 |
6265 | YR710-8/1180 | 710 | 740 | JDX630 | 5.6 | 125 |
| φ2.4×12 | 21 | ≤25 | 18～20 21～23 |
6365 | YR800-8/1180 | 800 | 740 | MBY710 | 6.3 | 127 |
| φ2.4×13 | 21 | ≤25 | 21～22 24～26 |
6668 | YR800-8/1180 | 800 | 740 | MBY710 | 6.3 | 131 |
| φ2.6×10 | 20.6 | ≤25 | 21～24 | 64 | YR800-8/1180 | 800 | 740 | JDX710 | 6.3 | 140 |
| φ2.6×13 | 20.6 | ≤25 | 28～31 | 81 | YR1000-8/1180 | 1000 | 740 | JDX800 | 6.3 | 158 |
| φ3.0×9 | 19.13 | ≤25 | 40～45 | 85 | YR1000-8/1180 | 1000 | 740 | MBY800 | 7.1 | 148 |
| φ3×11 | 18.92 | ≤25 | 44～47 | 95 | YR1250-8/1430 | 1250 | 740 | JDX900 | 7.1 | 177 |
| φ3×12 | 18.92 | ≤25 | 48～52 | 103 | YR1250-8/1430 | 1250 | 740 | JDX900 | 7.1 | 182 |
| φ3×13 | 18.92 | ≤25 | 39～45 | 116max | YR1400-8/1430 | 1400 | 740 | JDX900 | 7.1 | 200.7 |
| φ3.2×11 | 18.3 | ≤25 | 45～48 | 112max | YR1600-8/1430 | 1400 | 740 | JDX900 | 7.15 | 213.6 |
| φ3.2×13 | 18.7 | ≤25 | 50～55 | 133max | YR1600-8/1430 | 1600 | 740 | JDX1000 | 7.15 | 237 |
| φ3.4×11 | 18 | ≤25 | 45～55 | 120max | YR1600-8/1430 | 1600 | 740 | JDX1000 | 230 | |
| φ3.5×13 | 17 | ≤25 | 60～65 | 156max | YR2000-8/1730 | 2000 | 740 | TS130-A-F1 | 257.6 | |
| φ3.8×13 (Main bearing type) |
17 | ≤25 | 65～70 | 190 | YR2500-8/1730 | 2500 | 740 | JS130-C-F1 | 316 | |
| φ3.8×13 (Sliding edge type) |
17 | ≤25 | 65～70 | 185 | YR2500-8/1730 | 2500 | 740 | DMG22/2500 | 313 | |
| φ4×13 | 16.3 | ≤25 | 78～80 | 191 | YRKK900-80 | 2800 | 745 | JS140-A | 348 | |
| φ4.2×11 (Main bearing type) |
15.8 | ≤25 | 100～110 | 182～190 | YR2800-8/17830 | 2800 | 740 | JS140-A-F1D | 350 | |
| φ4.2×13 (Main bearing type) |
15.2 | ≤25 | 110～120 | 230 | YRKK1000-8 | 3350 | 740 | MFY355-A | 375 | |
| φ4.2×13 (Main bearing type) |
15.2 | ≤25 | 120～130 | 245 | YRKK1000-8 | 3350 | 740 | MFY355-A | 390 | |
| φ4.2×13 (Center Slip type) |
15.2 | ≤25 | 110～120 | 230 | YRKK1000-8 | 3350 | 740 | MFY355-A | 380 | |
| φ4.6×14 | 15 | ≤25 | 100～115 | 285 | YR1000-8 | 4200 | 740 | J3160-C | 485 | |
FQA
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time :
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms :
A: Accept payment type: T/T, L/C, Western union,Cash. 30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
